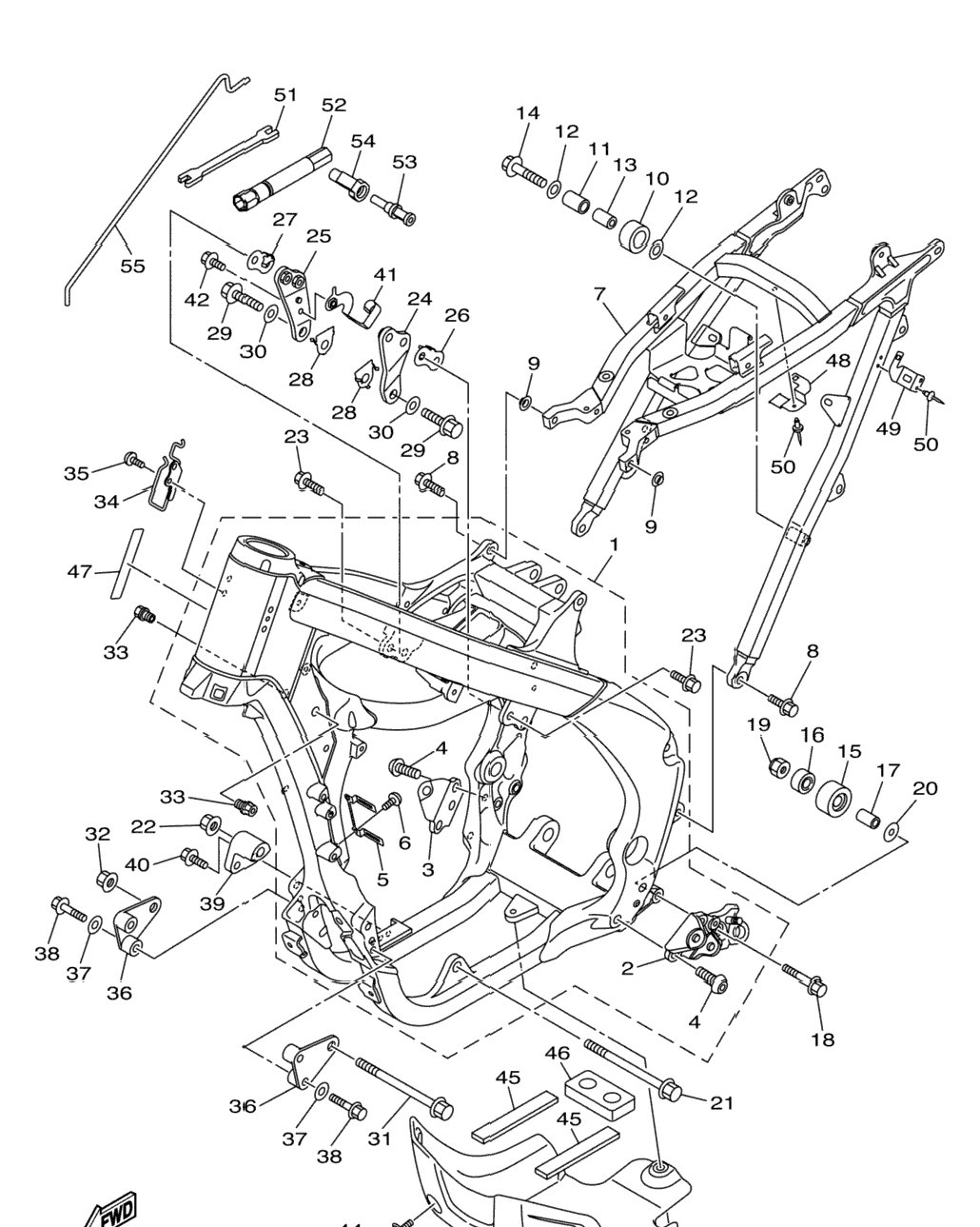

| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 1DX-21101-00-00 | Front Frame Comp | 1 шт. | — | |
|
| 2 | 1DX-21447-00-00 | . .Bracket, Footrest | 1 шт. | — | |
|
| 3 | 17D-21448-00-00 | . .Bracket, Footrest | 1 шт. | — | |
|
| 4 | 90149-10031-00 | . Screw | 4 шт. | — | |
|
| 5 | 17D-21335-50-00 | . .Clamp, Wire Harness 1 | 0 шт. | — | |
|
| 6 | 92012-05008-00 | . Bolt, Button Head | 2 шт. | — | |
|
| 7 | 1DX-21190-00-00 | Rear Frame Comp | 1 шт. | — | |
|
| 8 | 90105-08224-00 | Bolt, Flange | 4 шт. | — | |
|
| 9 | 90387-08096-00 | Collar | 2 шт. | — | |
|
| 10 | 30X-22178-00-00 | Tensioner | 1 шт. | — | |
|
| 11 | 4V4-22184-00-00 | Bush | 1 шт. | — | |
|
| 12 | 90201-08045-00 | Washer, Plate | 2 шт. | — | |
|
| 13 | 90387-08041-00 | Collar | 1 шт. | — | |
|
| 14 | 95022-08040-00 | Bolt, Flange | 1 шт. | — | |
|
| 15 | 3JD-22178-20-00 | Tensioner | 1 шт. | — | |
|
| 16 | 93300-60839-00 | Bearing | 1 шт. | — | |
|
| 17 | 90387-086N4-00 | Collar | 1 шт. | — | |
|
| 18 | 90105-08133-00 | Bolt, Flange | 1 шт. | — | |
|
| 19 | 90185-08009-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 20 | 90201-08043-00 | Washer, Plate | 1 шт. | — | |
|
| 21 | 90105-10214-00 | Bolt, Flange | 1 шт. | — | |
|
| 22 | 90179-10658-00 | Nut | 1 шт. | — | |
|
| 23 | 90105-08226-00 | Bolt, Flange | 4 шт. | — | |
|
| 24 | 1DX-21425-00-00 | Bracket, Rear Upper 1 | 1 шт. | — | |
|
| 25 | 1DX-21426-00-00 | Bracket, Rear Upper 2 | 1 шт. | — | |
|
| 26 | 1DX-21515-00-00 | Washer, Special | 1 шт. | — | |
|
| 27 | 1DX-21516-00-00 | Washer, Special 2 | 1 шт. | — | |
|
| 28 | 1DX-21615-00-00 | Washer, Special 1 | 2 шт. | — | |
|
| 29 | 95812-10025-00 | Bolt, Flange | 0 шт. | — | |
|
| 30 | 90201-10033-00 | Washer, Plate | 2 шт. | — | |
|
| 31 | 90105-10408-00 | Bolt, Flange | 1 шт. | — | |
|
| 32 | 90179-10658-00 | Nut | 1 шт. | — | |
|
| 33 | 17D-21244-10-00 | Nut | 2 шт. | — | |
|
| 34 | 1DX-21163-00-00 | Holder, Clutch Cable | 1 шт. | — | |
|
| 35 | 92012-06010-00 | Bolt, Button Head | 2 шт. | — | |
|
| 36 | 1DX-21417-00-00 | Bracket, Front Lower 1 | 2 шт. | — | |
|
| 37 | 92902-08200-00 | Washer | 4 шт. | — | |
|
| 38 | 90105-08229-00 | Bolt, Flange | 4 шт. | — | |
|
| 39 | 1DX-21428-00-00 | Bracket, Rear Lower 2 | 1 шт. | — | |
|
| 40 | 90105-08142-00 | Bolt, Flange | 2 шт. | — | |
|
| 41 | 1DX-21161-00-00 | Holder, Cable | 1 шт. | — | |
|
| 42 | 90105-06128-00 | Bolt, Flange | 1 шт. | — | |
|
| 43 | 1DX-2147A-00-00 | Guard, Engine 1 | 1 шт. | — | |
|
| 44 | 90119-06146-00 | Bolt, With Washer | 3 шт. | — | |
|
| 45 | 90520-02008-00 | Damper, Plate | 2 шт. | — | |
|
| 46 | 1DX-21485-00-00 | Damper, Rubber 1 | 1 шт. | — | |
|
| 47 | 5UM-21268-E0-00 | Seal | 1 шт. | — | |
|
| 48 | 1DX-2116A-00-00 | Stay 1 | 1 шт. | — | |
|
| 49 | 1DX-2116E-00-00 | Cover 2 | 1 шт. | — | |
|
| 50 | 90267-32146-00 | Rivet, Blind | 3 шт. | — | |
|
| 51 | 5ET-28166-10-00 | Wrench, Hexagon | 1 шт. | — | |
|
| 52 | 5SL-2814F-00-00 | Box, Spark Plug | 1 шт. | — | |
|
| 53 | 18P-2467E-00-00 | Cap | 1 шт. | — | |
|
| 54 | 18P-2464V-00-00 | Case, Cap | 1 шт. | — | |
|
| 55 | 1DX-2814H-00-00 | Hook 1 | 1 шт. | — | |
|
