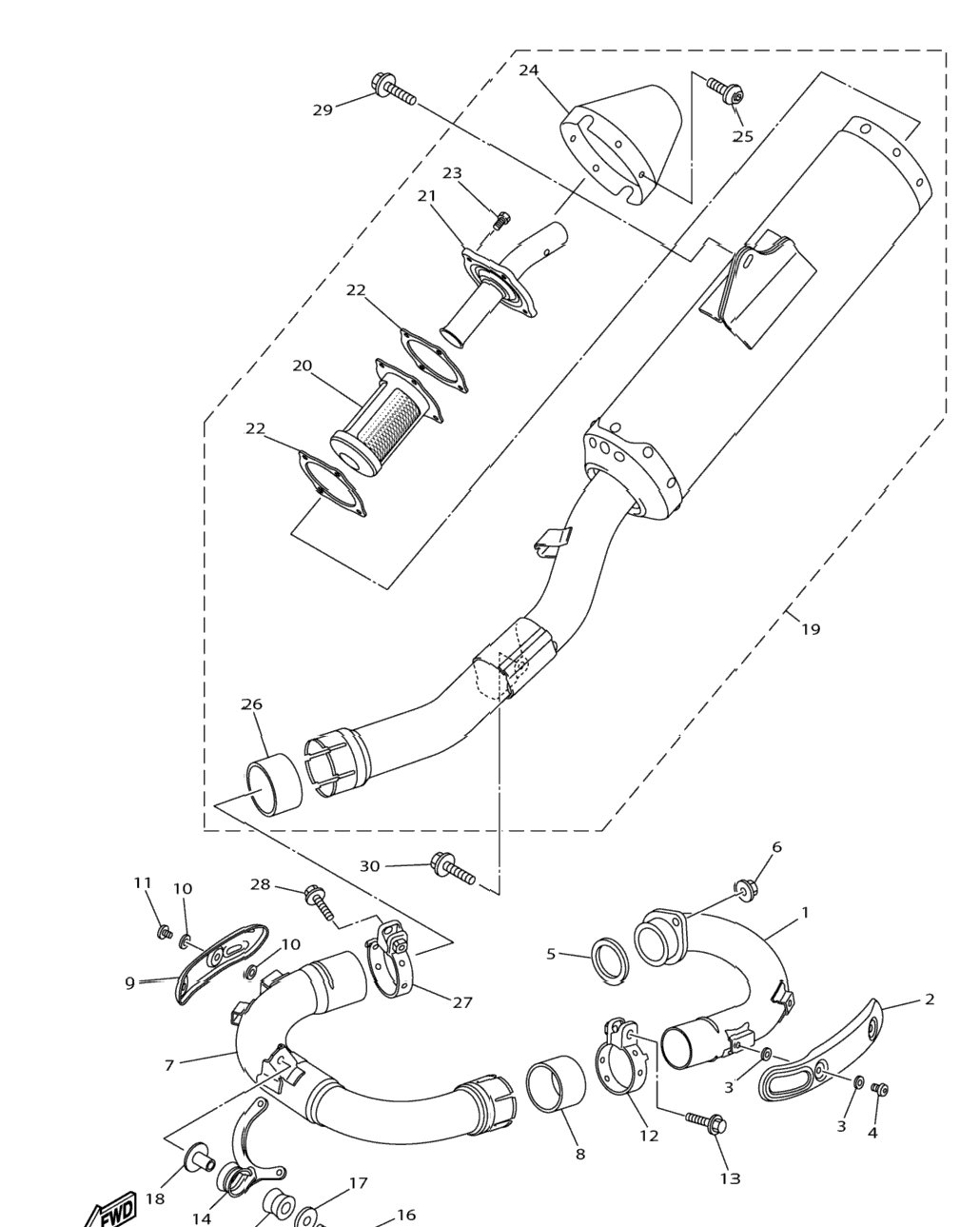

| 1 | 1SM-14611-00-00 | Pipe, Exhaust 1 | 1 шт. | — | |
|
| 2 | 1SL-14628-00-00 | Protector, Exhaust Pipe | 1 шт. | — | |
|
| 3 | 90201-05017-00 | Washer, Plate | 4 шт. | — | |
|
| 4 | 98980-06008-00 | Screw, Bind | 2 шт. | — | |
|
| 5 | 5NL-14613-00-00 | Gasket, Exhaust Pipe INCL. WITH TOP END GASKET KIT | 1 шт. | — | |
|
| 6 | 95702-08500-00 | Nut, Flange | 2 шт. | — | |
|
| 7 | 1SM-14621-00-00 | Pipe, Exhaust 2 | 1 шт. | — | |
|
| 8 | 5PX-14755-00-00 | Gasket, Silencer | 1 шт. | — | |
|
| 9 | 1SL-1463B-00-00 | Protector, Exhaust Pipe 2 | 1 шт. | — | |
|
| 10 | 90201-05017-00 | Washer, Plate | 4 шт. | — | |
|
| 11 | 98980-06008-00 | Screw, Bind | 2 шт. | — | |
|
| 12 | 1SM-14788-00-00 | Band, Silencer | 1 шт. | — | |
|
| 13 | 95024-08040-00 | Bolt, Flange (Small Head) | 1 шт. | — | |
|
| 14 | 1SM-14639-00-00 | Stay, Exhaust Pipe 1 | 1 шт. | — | |
|
| 15 | 5VY-14747-00-00 | Damper, Muffler | 1 шт. | — | |
|
| 16 | 90105-08137-00 | Bolt, Flange | 1 шт. | — | |
|
| 17 | 90201-08061-00 | Washer, Plate | 1 шт. | — | |
|
| 18 | 90387-08081-00 | Collar | 1 шт. | — | |
|
| 19 | 2GB-14701-00-00 | Muffler Comp | 1 шт. | — | |
|
| 20 | 5TJ-14780-00-00 | . .Spark Arrester Assy | 1 шт. | — | |
|
| 21 | 5TJ-14784-00-00 | . .Pipe, Tail | 1 шт. | — | |
|
| 22 | 5TJ-14623-00-00 | . .Gasket, Exhaust Pipe | 2 шт. | — | |
|
| 23 | 90110-05041-00 | . .Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 24 | 5TJ-14799-00-00 | . .Cap | 1 шт. | — | |
|
| 25 | 92012-05008-00 | . Bolt, Button Head | 6 шт. | — | |
|
| 26 | 1SL-14714-00-00 | . .Gasket, Muffler | 1 шт. | — | |
|
| 27 | 1SL-14715-00-00 | .Band, Muffler | 1 шт. | — | |
|
| 28 | 95024-08040-00 | Bolt, Flange (Small Head) | 1 шт. | — | |
|
| 29 | 90105-08230-00 | Bolt, Flange | 1 шт. | — | |
|
| 30 | 90119-08133-00 | Bolt, With Washer | 1 шт. | — | |
|
