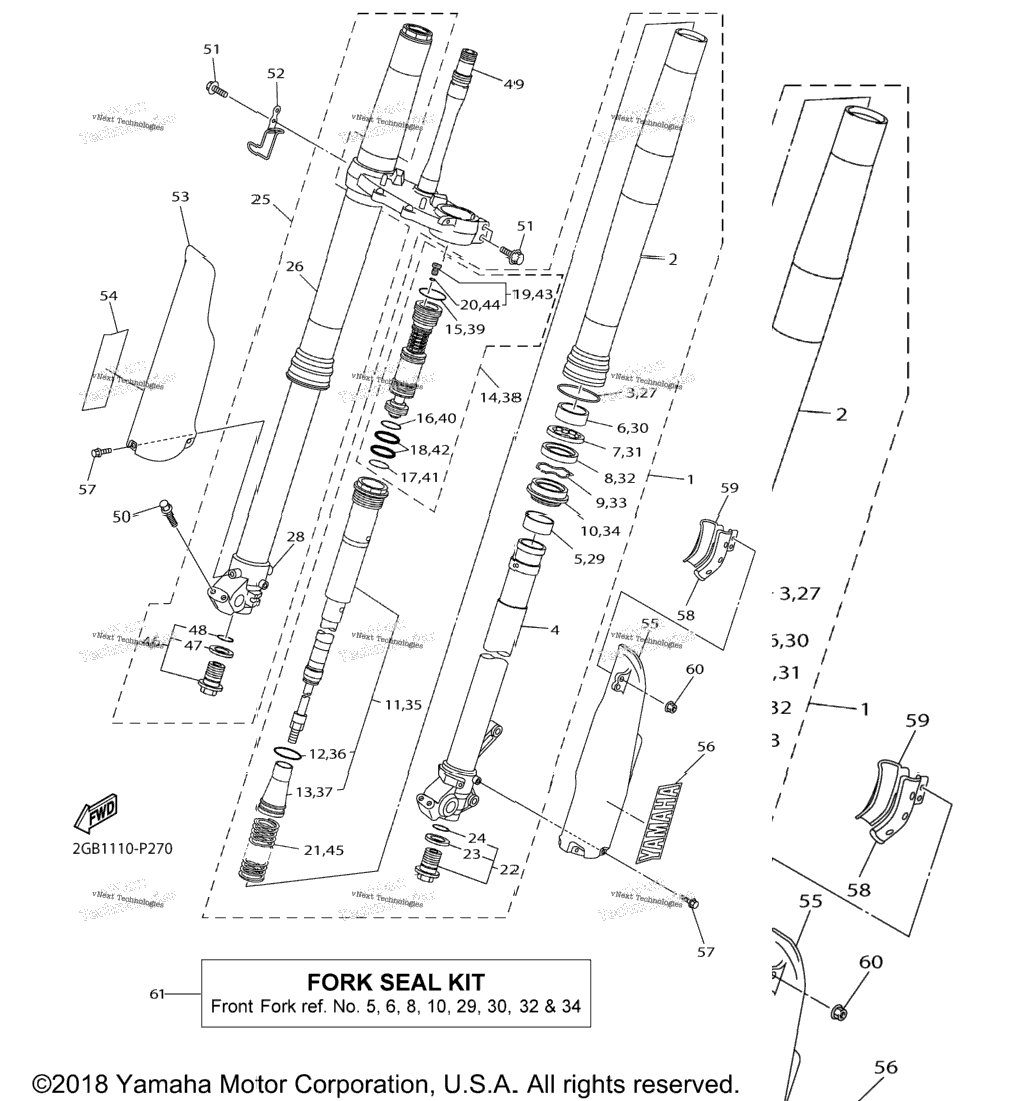

| 1 | 2GB-23102-00-00 | Front Fork Assy (L.H) | 1 шт. | — | |
|
| 2 | 33D-23136-00-00 | . .Tube, Outer | 1 шт. | — | |
|
| 3 | 17D-23153-00-00 | . .Ring, Snap | 1 шт. | — | |
|
| 4 | 1DX-23120-00-00 | . . Inner Tube Comp. 2 | 1 шт. | — | |
|
| 5 | 5XE-23171-L0-00 | . Piston, Front Fork INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 6 | 5XE-23125-L0-00 | . Metal, Slide 1 INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 7 | 5XC-23146-10-00 | . .Washer, Oil Seal | 1 шт. | — | |
|
| 8 | 17D-23145-00-00 | . Oil Seal INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 9 | 5XE-23153-L0-00 | . Ring, Snap | 1 шт. | — | |
|
| 10 | 5XE-23144-L0-00 | . Seal, Dust INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 11 | 2GB-23170-00-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 12 | 1C3-23147-L0-00 | . . ..O-Ring | 1 шт. | — | |
|
| 13 | 17D-23142-00-00 | . . ..Seat, Spring Upper | 1 шт. | — | |
|
| 14 | 2GB-2316A-00-00 | . .Valve Comp | 1 шт. | — | |
|
| 15 | 1C3-23188-L0-00 | . . ..O-Ring | 1 шт. | — | |
|
| 16 | 1C3-23188-N0-00 | . . ..O-Ring | 1 шт. | — | |
|
| 17 | 1C3-23188-P0-00 | . . ..O-Ring | 1 шт. | — | |
|
| 18 | 1AE-23147-00-00 | . . ..O-Ring | 2 шт. | — | |
|
| 19 | 1C3-23190-L0-00 | . . ..Air Valve Comp | 1 шт. | — | |
|
| 20 | 1C3-23188-R0-00 | . . . ...O-Ring | 1 шт. | — | |
|
| 21 | 2GB-23141-30-00 | . .Spring, Front Fork | 1 шт. | — | |
|
| 22 | 5XC-23111-00-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 23 | 2HH-23158-L0-00 | . . ..Gasket | 1 шт. | — | |
|
| 24 | 276-23114-00-00 | . . ..Gasket | 1 шт. | — | |
|
| 25 | 2GB-23103-00-00 | Front Fork Assy (R.H) | 1 шт. | — | |
|
| 26 | 33D-23136-00-00 | . .Tube, Outer | 1 шт. | — | |
|
| 27 | 17D-23153-00-00 | . .Ring, Snap | 1 шт. | — | |
|
| 28 | 1DX-23110-00-00 | . . Inner Tube Comp. 1 | 1 шт. | — | |
|
| 29 | 5XE-23171-L0-00 | . Piston, Front Fork INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 30 | 5XE-23125-L0-00 | . Metal, Slide 1 INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 31 | 5XC-23146-10-00 | . .Washer, Oil Seal | 1 шт. | — | |
|
| 32 | 17D-23145-00-00 | . Oil Seal INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 33 | 5XE-23153-L0-00 | . Ring, Snap | 1 шт. | — | |
|
| 34 | 5XE-23144-L0-00 | . Seal, Dust INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 35 | 2GB-23170-00-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 36 | 1C3-23147-L0-00 | . . ..O-Ring | 1 шт. | — | |
|
| 37 | 17D-23142-00-00 | . . ..Seat, Spring Upper | 1 шт. | — | |
|
| 38 | 2GB-2316A-00-00 | . .Valve Comp | 1 шт. | — | |
|
| 39 | 1C3-23188-L0-00 | . . ..O-Ring | 1 шт. | — | |
|
| 40 | 1C3-23188-N0-00 | . . ..O-Ring | 1 шт. | — | |
|
| 41 | 1C3-23188-P0-00 | . . ..O-Ring | 1 шт. | — | |
|
| 42 | 1AE-23147-00-00 | . . ..O-Ring | 2 шт. | — | |
|
| 43 | 1C3-23190-L0-00 | . . ..Air Valve Comp | 1 шт. | — | |
|
| 44 | 1C3-23188-R0-00 | . . . ...O-Ring | 1 шт. | — | |
|
| 45 | 2GB-23141-30-00 | . .Spring, Front Fork | 1 шт. | — | |
|
| 46 | 5XC-23111-00-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 47 | 2HH-23158-L0-00 | . . ..Gasket | 1 шт. | — | |
|
| 48 | 276-23114-00-00 | . . ..Gasket | 1 шт. | — | |
|
| 49 | 33D-23340-10-00 | Under Bracket Comp | 1 шт. | — | |
|
| 50 | 90105-08134-00 | Bolt, Flange | 4 шт. | — | |
|
| 51 | 90105-08154-00 | Bolt, Flange | 4 шт. | — | |
|
| 52 | 2GB-23525-00-00 | Guide | 1 шт. | — | |
|
| 53 | 5TJ-2315J-C0-00 | Protector 2 | 1 шт. | — | |
|
| 54 | 4XL-2153A-10-00 | Emblem, Yamaha | 1 шт. | — | |
|
| 55 | 1C3-2315H-10-00 | Protector 1 | 1 шт. | — | |
|
| 56 | 4XL-2153A-10-00 | Emblem, Yamaha | 1 шт. | — | |
|
| 57 | 3SP-23356-L0-00 | Bolt 2 | 6 шт. | — | |
|
| 58 | 5XC-23466-L0-00 | Clamp | 1 шт. | — | |
|
| 59 | 5XC-23467-L0-00 | Clamp | 1 шт. | — | |
|
| 60 | 95702-06500-00 | Nut, Flange | 2 шт. | — | |
|
| 61 | 17D-W003B-00-00 | Fork Seal Kit NOT SHOWN | 1 шт. | — | |
|
