Fuel Tank Cover (Gsx-R600)

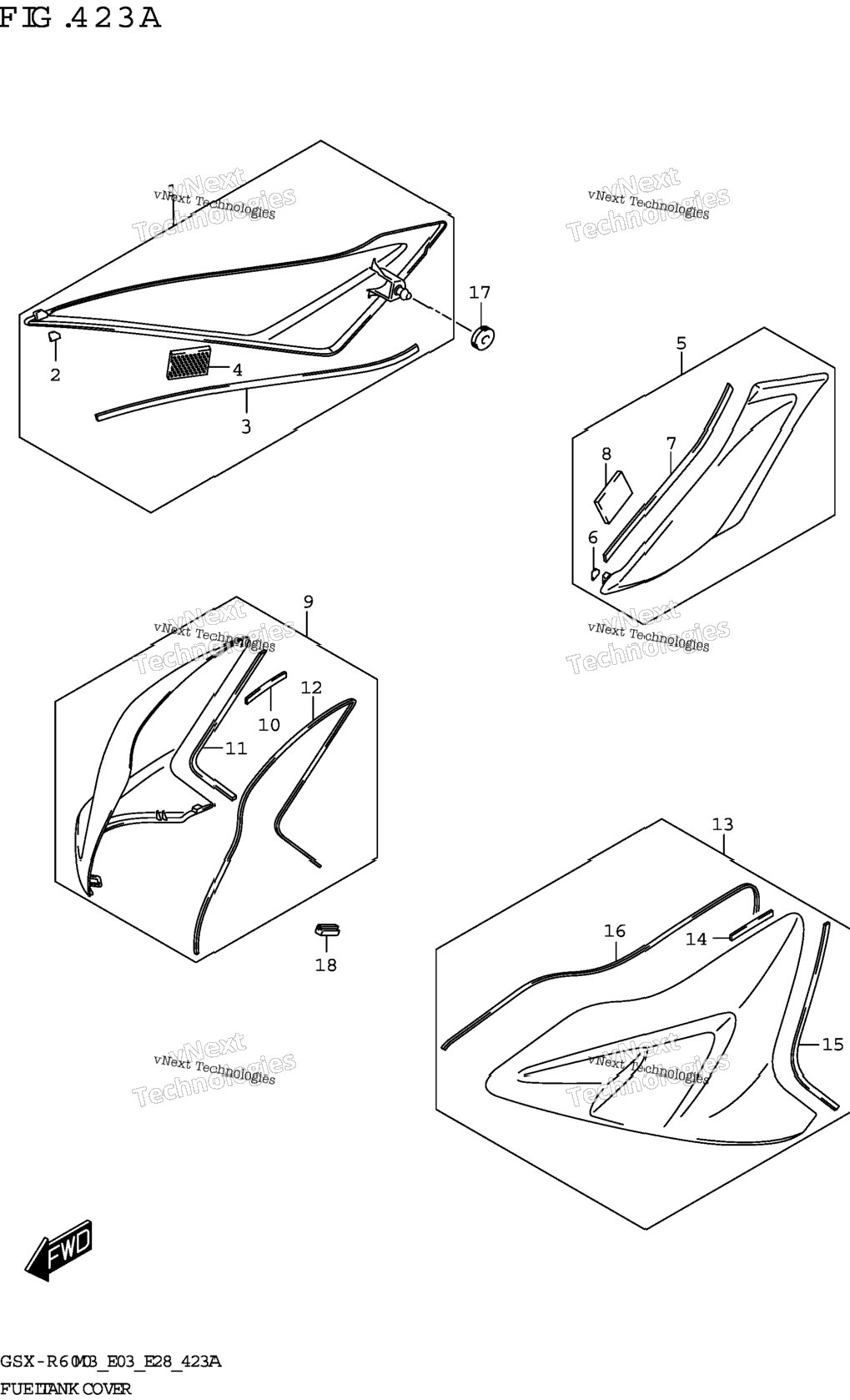

Схема Fuel Tank Cover (Gsx-R600)

№	Артикул	Название	Кол-во	Наличие и цены	Действия

1	`44170-14J00`	COVER,FUEL TANK SIDE RH	1 шт.	—

5	`44180-14J00`	COVER,FUEL TANK SIDE LH	1 шт.	—

6	`44172-14J00`	.CUSHION,FUEL TANK COVER	1 шт.	—

6	`44172-14J00`	.CUSHION,FUEL TANK COVER	1 шт.	—

7	`44278-14J00`	.CUSHION,FUEL TANK SIDE COVER	1 шт.	—

7	`44278-14J00`	.CUSHION,FUEL TANK SIDE COVER	1 шт.	—

8	`44572-02F01`	FASTENER (25X33X2.6)	2 шт.	—

8	`44572-02F01`	FASTENER (25X33X2.6)	2 шт.	—

9-1	`44270-14J80-YUH`	COVER,FUEL TANK FR,R (WHITE) BODY COLOR:B5N	1 шт.	—

9-2	`44270-14J80-QT7`	COVER,FUEL TANK FR,R (GRAY) BODY COLOR:CHL	1 шт.	—

11	`44274-14J00`	.CUSHION,FUEL TANK COVER R NO 2	1 шт.	—

13-1	`44280-14J80-YUH`	COVER,FUEL TANK FR,L (WHITE) BODY COLOR:B5N	1 шт.	—

13-2	`44280-14J80-QT7`	COVER,FUEL TANK FR,L (GRAY) BODY COLOR:CHL	1 шт.	—

14	`44273-14J00`	.CUSHION,FUEL TANK COVER NO.1	1 шт.	—

14	`44273-14J00`	.CUSHION,FUEL TANK COVER NO.1	1 шт.	—

15	`44284-14J00`	.CUSHION,FUEL TANK COVER L NO 2	1 шт.	—

16	`44277-14J00`	.CUSHION,FUEL TANK COVER FR	1 шт.	—

16	`44277-14J00`	.CUSHION,FUEL TANK COVER FR	1 шт.	—

17	`44173-14J00`	CUSHION,FUEL TANK COVER SIDE	2 шт.	—

18	`44177-14J02`	CUSHION,FUEL TANK COVER FR	2 шт.	—
