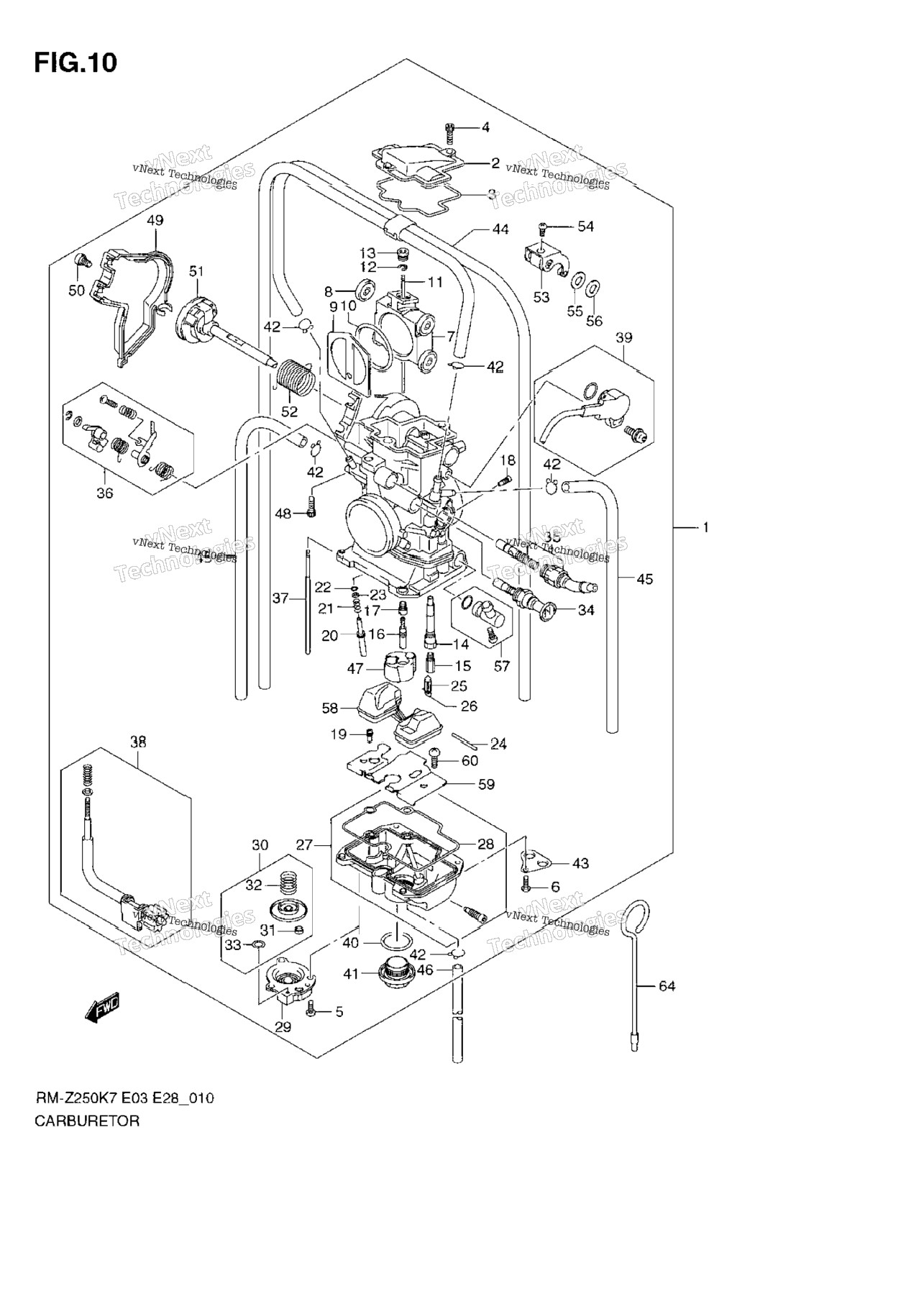

| 1 | 13200-10H10 | CARBURETOR ASSY MODEL K7 E28 | 0 шт. | — | |
|
| 1 | 13200-10H00 | CARBURETOR ASSY MODEL K7 E3 | 0 шт. | — | |
|
| 1 | 13200-10H30 | CARBURETOR ASSY MODEL K8/K9 E28; Includes Item(s) 2 - 60 | 0 шт. | — | |
|
| 1 | 13200-10H20 | CARBURETOR ASSY MODEL K8/K9 E3 | 0 шт. | — | |
|
| 2 | 13261-35G00 | TOP | 0 шт. | — | |
|
| 3 | 13266-35G00 | O RING | 1 шт. | — | |
|
| 4 | 13612-29F10 | BOLT | 2 шт. | — | |
|
| 5 | 13602-43E00 | SCREW | 3 шт. | — | |
|
| 6 | 13602-35G00 | SCREW | 4 шт. | — | |
|
| 7 | 13551-35G01 | THROTTLE VALVE | 0 шт. | — | |
|
| 8 | 13570-29F00 | BEARING | 1 шт. | — | |
|
| 9 | 13555-35G00 | FLOATING VALVE | 1 шт. | — | |
|
| 10 | 13559-29F00 | LIP SEAL | 1 шт. | — | |
|
| 12 | 13394-29F00 | BAR CLIP | 1 шт. | — | |
|
| 13 | 13600-35G00 | SCREW SET, JET NEEDLE | 1 шт. | — | |
|
| 14 | 13342-35G00 | MAIN, NOZZLE | 0 шт. | — | |
|
| 17 | 09492-35G00 | JET, STARTER | 1 шт. | — | |
|
| 18 | 09492-35G10 | JET, SLOW AIR | 1 шт. | — | |
|
| 19 | 09492-40025 | JET, ACC MODEL K7 MODEL K8/K9 E3 | 1 шт. | — | |
|
| 19 | 09492-45039 | JET, ACC MODEL K8/K9 E28 | 1 шт. | — | |
|
| 20 | 13279-29F00 | SCREW, ADJUST MODEL K7 MODEL K8/K9 E3 | 1 шт. | — | |
|
| 20 | 13279-10H00 | SCREW, ADJUST MODEL K8/K9 E28 | 0 шт. | — | |
|
| 21 | 13271-29F00 | SPRING | 1 шт. | — | |
|
| 22 | 13295-29F00 | O RING | 1 шт. | — | |
|
| 23 | 13291-29F00 | WASHER | 1 шт. | — | |
|
| 24 | 13254-26E00 | PIN, FLOAT | 1 шт. | — | |
|
| 25 | 13370-29F00 | VALVE, FLOAT | 1 шт. | — | |
|
| 26 | 13375-26E00 | CLIP | 1 шт. | — | |
|
| 27 | 13250-10H00 | FLOAT CHAMBER BODY SET | 1 шт. | — | |
|
| 28 | 13251-35G00 | O RING | 1 шт. | — | |
|
| 29 | 13488-29F00 | COVER | 1 шт. | — | |
|
| 30 | 13480-10H00 | DIAPHRAGM SET | 1 шт. | — | |
|
| 31 | 13497-14F00 | U RING | 1 шт. | — | |
|
| 32 | 13494-15F00 | SPRING | 1 шт. | — | |
|
| 33 | 13673-26E10 | O RING | 1 шт. | — | |
|
| 34 | 13410-35G20 | STARTER VALVE | 1 шт. | — | |
|
| 35 | 13410-10H00 | STARTER VALVE | 1 шт. | — | |
|
| 36 | 13490-35G10 | LEVER SET, PUMP | 1 шт. | — | |
|
| 37 | 13487-35G00 | ROD | 1 шт. | — | |
|
| 38 | 13270-35G00 | SCREW SET | 1 шт. | — | |
|
| 39 | 13580-35G00 | SENSOR SET, THROTTLE | 1 шт. | — | |
|
| 40 | 13246-28E00 | O RING | 1 шт. | — | |
|
| 41 | 13247-10H00 | BOLT, DRAIN | 1 шт. | — | |
|
| 42 | 09401-06101 | CLIP | 5 шт. | — | |
|
| 43 | 13693-36E00 | PLATE | 2 шт. | — | |
|
| 44 | 13680-35G00 | PIPE SET, BOWL VENT | 1 шт. | — | |
|
| 45 | 13686-35G00 | PIPE | 2 шт. | — | |
|
| 46 | 13684-35G00 | PIPE | 1 шт. | — | |
|
| 47 | 13257-10H00 | PLATE, BUFFER | 0 шт. | — | |
|
| 48 | 13296-10H00 | SCREW | 1 шт. | — | |
|
| 49 | 13311-35G00 | COVER | 1 шт. | — | |
|
| 50 | 13312-35G00 | BOLT | 1 шт. | — | |
|
| 51 | 13550-35G01 | THROTTLE SHAFT | 0 шт. | — | |
|
| 52 | 13573-35G00 | SPRING | 1 шт. | — | |
|
| 53 | 13564-35G00 | LINK ARM | 0 шт. | — | |
|
| 54 | 13605-35G00 | SCREW | 1 шт. | — | |
|
| 55 | 13572-29F00 | WASHER | 1 шт. | — | |
|
| 56 | 13574-35G00 | WASHER | 1 шт. | — | |
|
| 57 | 13670-35G00 | JOINT SET | 1 шт. | — | |
|
| 58 | 13240-35G00 | FLOAT | 1 шт. | — | |
|
| 59 | 13258-10H00 | PLATE, BUFFER | 0 шт. | — | |
|
| 60 | 13605-10H00 | SCREW | 0 шт. | — | |
|
| 61 | 09491-30018 | JET, MAIN (150) OPT NOT SHOWN | 1 шт. | — | |
|
| 61 | 09491-30019 | JET, MAIN (152) OPT NOT SHOWN | 1 шт. | — | |
|
| 61 | 09491-31012 | JET, MAIN (155) OPT NOT SHOWN | 1 шт. | — | |
|
| 61 | 09491-31013 | JET, MAIN (158) OPT NOT SHOWN | 1 шт. | — | |
|
| 61 | 09491-32010 | JET, MAIN (160) OPT NOT SHOWN | 1 шт. | — | |
|
| 61 | 09491-32011 | JET, MAIN, 162 E3 | 1 шт. | — | |
|
| 61 | 09491-32011 | JET, MAIN (162) OPT NOT SHOWN | 1 шт. | — | |
|
| 61 | 09491-33009 | JET, MAIN (165) OPT NOT SHOWN | 1 шт. | — | |
|
| 61 | 09491-33010 | JET, MAIN (168) OPT NOT SHOWN | 1 шт. | — | |
|
| 61 | 09491-34010 | JET, MAIN, 170 E28 | 1 шт. | — | |
|
| 61 | 09491-34010 | JET, MAIN (170) OPT NOT SHOWN | 1 шт. | — | |
|
| 61 | 09491-34011 | JET, MAIN (172) OPT NOT SHOWN | 1 шт. | — | |
|
| 61 | 09491-35009 | JET, MAIN (175) OPT NOT SHOWN | 1 шт. | — | |
|
| 61 | 09491-35010 | JET, MAIN (178) OPT NOT SHOWN | 1 шт. | — | |
|
| 61 | 09491-36008 | JET, MAIN (180) OPT NOT SHOWN | 1 шт. | — | |
|
| 61 | 09491-37008 | JET, MAIN (185) OPT NOT SHOWN | 1 шт. | — | |
|
| 61 | 09491-38011 | JET, MAIN (190) OPT NOT SHOWN | 0 шт. | — | |
|
| 62 | 09492-35019 | JET, SLOW (35) OPT NOT SHOWN | 1 шт. | — | |
|
| 62 | 09492-40022 | JET, SLOW (40) OPT NOT SHOWN | 1 шт. | — | |
|
| 62 | 09492-42019 | JET, SLOW, 42 MODEL K8/K9 | 1 шт. | — | |
|
| 62 | 09492-42019 | JET, SLOW (42) OPT NOT SHOWN | 1 шт. | — | |
|
| 62 | 09492-45032 | JET, SLOW, 45 MODEL K7 | 1 шт. | — | |
|
| 62 | 09492-45032 | JET, SLOW (45) OPT NOT SHOWN | 1 шт. | — | |
|
| 62 | 09492-48013 | JET, SLOW (48) OPT NOT SHOWN | 1 шт. | — | |
|
| 62 | 09492-50023 | JET, SLOW (50) OPT NOT SHOWN | 1 шт. | — | |
|
| 62 | 09492-52011 | JET, SLOW (52) OPT NOT SHOWN | 1 шт. | — | |
|
| 62 | 09492-55017 | JET, SLOW (55) OPT NOT SHOWN | 1 шт. | — | |
|
| 62 | 09492-58001 | JET, SLOW (58) OPT NOT SHOWN | 1 шт. | — | |
|
| 62 | 09492-60016 | JET, SLOW (60) OPT NOT SHOWN | 1 шт. | — | |
|
| 63 | 13383-10H00 | NEEDLE, JET (NLCR) OPT NOT SHOWN | 0 шт. | — | |
|
| 63 | 13383-10H20 | NEEDLE, JET (NLCS) OPT NOT SHOWN | 0 шт. | — | |
|
| 63 | 13383-10H40 | NEEDLE, JET (NLCT) MODEL K7 MODEL K8/K9 E3 | 1 шт. | — | |
|
| 63 | 13383-10H40 | NEEDLE, JET (NLCT) OPT NOT SHOWN | 1 шт. | — | |
|
| 63 | 13383-10H60 | NEEDLE, JET (NLCU) OPT NOT SHOWN | 0 шт. | — | |
|
| 63 | 13383-10H80 | NEEDLE, JET (NLCV) OPT NOT SHOWN | 0 шт. | — | |
|
| 63 | 13383-10H10 | NEEDLE, JET (NLDR) OPT NOT SHOWN | 0 шт. | — | |
|
| 63 | 13383-10H30 | NEEDLE, JET (NLDS) OPT NOT SHOWN | 0 шт. | — | |
|
| 63 | 13383-10H50 | NEEDLE, JET (NLDT) MODEL K8/K9 E28 | 1 шт. | — | |
|
| 63 | 13383-10H50 | NEEDLE, JET (NLDT) OPT NOT SHOWN | 1 шт. | — | |
|
| 63 | 13383-10H70 | NEEDLE, JET (NLDU) OPT NOT SHOWN | 0 шт. | — | |
|
| 63 | 13383-10H90 | NEEDLE, JET (NLDV) OPT NOT SHOWN | 0 шт. | — | |
|
| 64 | 13220-35G00 | HOLDER, JET NEEDLE OPT | 1 шт. | — | |
|
