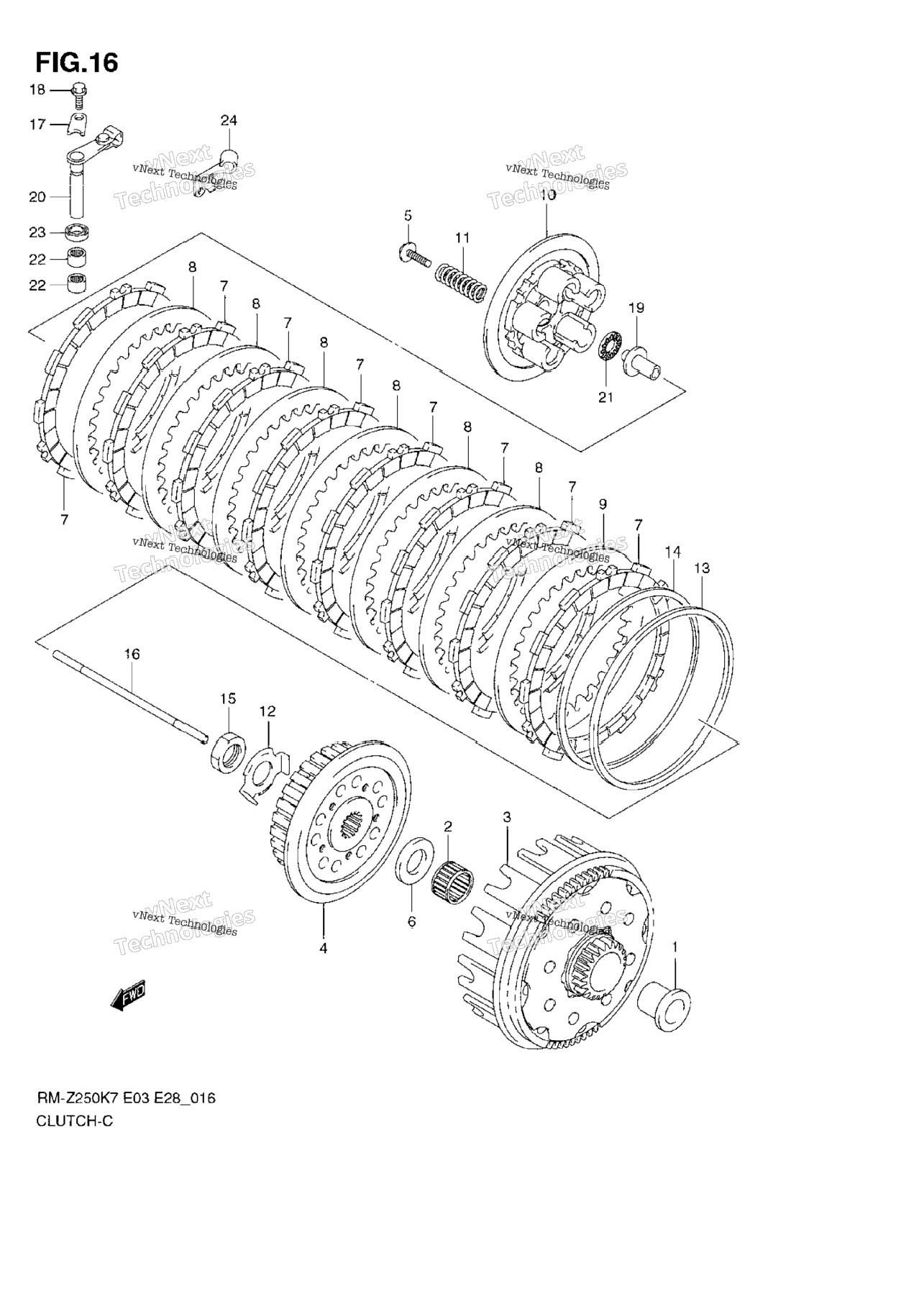

| 1 | 21251-10H00 | SPACER, PRI DRIVEN GEAR 27X32X21.8 | 1 шт. | — | |
|
| 2 | 09263-27004 | BEARING, PRIMARY DRIVEN 27X32X21.8 | 1 шт. | — | |
|
| 3 | 21200-10H00 | GEAR ASSY, PRIMARY DRIVEN | 1 шт. | — | |
|
| 4 | 21411-10H00 | HUB, CLUTCH SLEEVE | 1 шт. | — | |
|
| 5 | 21412-45G00 | BOLT, CLUTCH SPRING 6X32 | 5 шт. | — | |
|
| 6 | 09160-22083 | WASHER, CLUTCH SLEEVE HUB 22X45X3.0 | 1 шт. | — | |
|
| 7 | 21441-10H00 | PLATE, CLUTCH DRIVE NO.1 | 8 шт. | — | |
|
| 8 | 21451-10H00 | PLATE, CLUTCH DRIVEN | 6 шт. | — | |
|
| 9 | 21452-10H00 | PLATE, CLUTCH DRIVEN | 1 шт. | — | |
|
| 10 | 21462-10H00 | DISC, CLUTCH PRESSURE | 1 шт. | — | |
|
| 11 | 09440-18040 | SPRING, CLUTCH | 5 шт. | — | |
|
| 12 | 21416-10H00 | WASHER, CLUTCH SLEEVE | 1 шт. | — | |
|
| 13 | 21471-40F00 | SEAT, WAVE WASHER | 1 шт. | — | |
|
| 14 | 21472-10H00 | WASHER, CLUTCH PLATE | 1 шт. | — | |
|
| 15 | 09140-18020 | NUT, CLUTCH SLEEVE HUB | 1 шт. | — | |
|
| 16 | 23110-37F00 | ROD, CLUTCH PUSH | 1 шт. | — | |
|
| 17 | 23117-10H00 | RETAINER, CL RELEASE | 1 шт. | — | |
|
| 18 | 09103-06233 | BOLT, RTNR | 1 шт. | — | |
|
| 19 | 23121-37F00 | PIECE, CLUTCH PUSH | 1 шт. | — | |
|
| 20 | 23200-10H00 | CAMSHAFT, CLUTCH RELEASE | 1 шт. | — | |
|
| 21 | 09263-10002 | BEARING, CL RELEASE THRUST 10.1X22X2.8 | 1 шт. | — | |
|
| 22 | 09263-10014 | BEARING, CL RELEASE CAMSHAFT 10X14X10 | 2 шт. | — | |
|
| 23 | 09285-10004 | SEAL, CL RELEASE CAMSHAFT OIL 10X17X5 | 1 шт. | — | |
|
| 24 | 23911-10H00 | BRACKET, CLUTCH CABLE | 1 шт. | — | |
|
