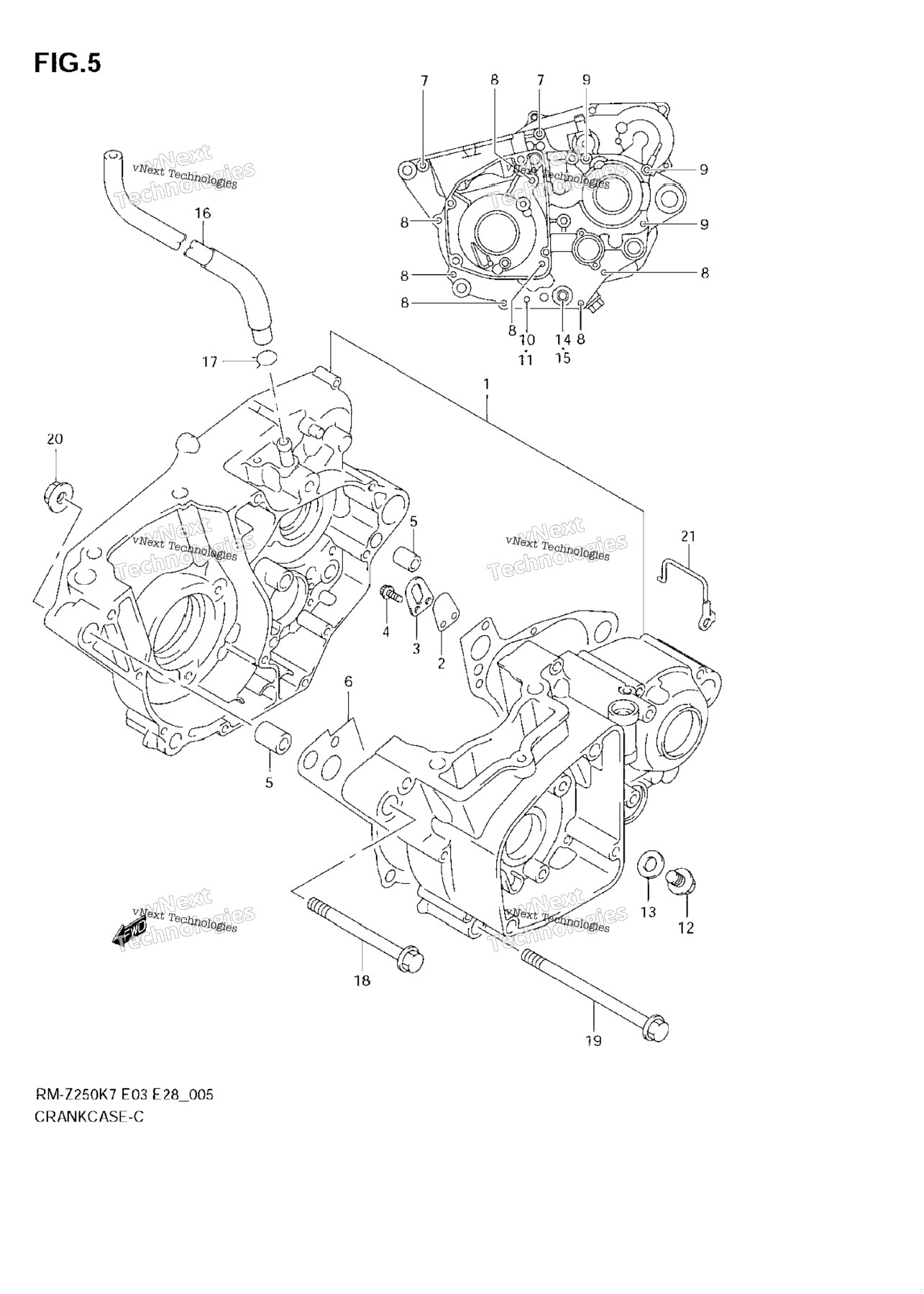

| 1 | 11300-10881 | CRANKCASE SET Includes Item(s) 2 - 11 | 1 шт. | — | |
|
| 2 | 11322-35G00 | VALVE, CRANKCASE REED | 1 шт. | — | |
|
| 3 | 11323-35G00 | STOPPER, CRANKCASE REED VALVE | 1 шт. | — | |
|
| 4 | 07120-0512B | BOLT, REED VALVE | 2 шт. | — | |
|
| 5 | 09206-13020 | PIN, CRANKCASE | 2 шт. | — | |
|
| 6 | 11481-10H00 | GASKET, CRANKCASE | 1 шт. | — | |
|
| 7 | 01547-0640A | BOLT | 2 шт. | — | |
|
| 8 | 01547-0655A | BOLT | 7 шт. | — | |
|
| 9 | 01547-0670A | BOLT, CRANKCASE (6X70) | 3 шт. | — | |
|
| 10 | 07120-0610B | PLUG, OIL DRAIN | 1 шт. | — | |
|
| 11 | 09168-06004 | GASKET, OIL DRAIN PLUG | 1 шт. | — | |
|
| 12 | 09247-12006 | PLUG, OIL DRAIN | 1 шт. | — | |
|
| 13 | 09168-12002 | GASKET | 1 шт. | — | |
|
| 14 | 16316-10H00 | CAP, ENG OIL STRAINER | 1 шт. | — | |
|
| 15 | 09168-16003 | GASKET | 1 шт. | — | |
|
| 16 | 11332-35G10 | HOSE, BREATHER | 1 шт. | — | |
|
| 17 | 09401-13301 | CLIP, BREATHER HOSE | 1 шт. | — | |
|
| 18 | 09103-10387 | BOLT (10X96) | 1 шт. | — | |
|
| 19 | 09103-10388 | BOLT (10X120) | 1 шт. | — | |
|
| 20 | 09159-10078 | NUT | 2 шт. | — | |
|
| 21 | 13694-35G00 | GUIDE, CARBURETOR HOSE | 1 шт. | — | |
|
