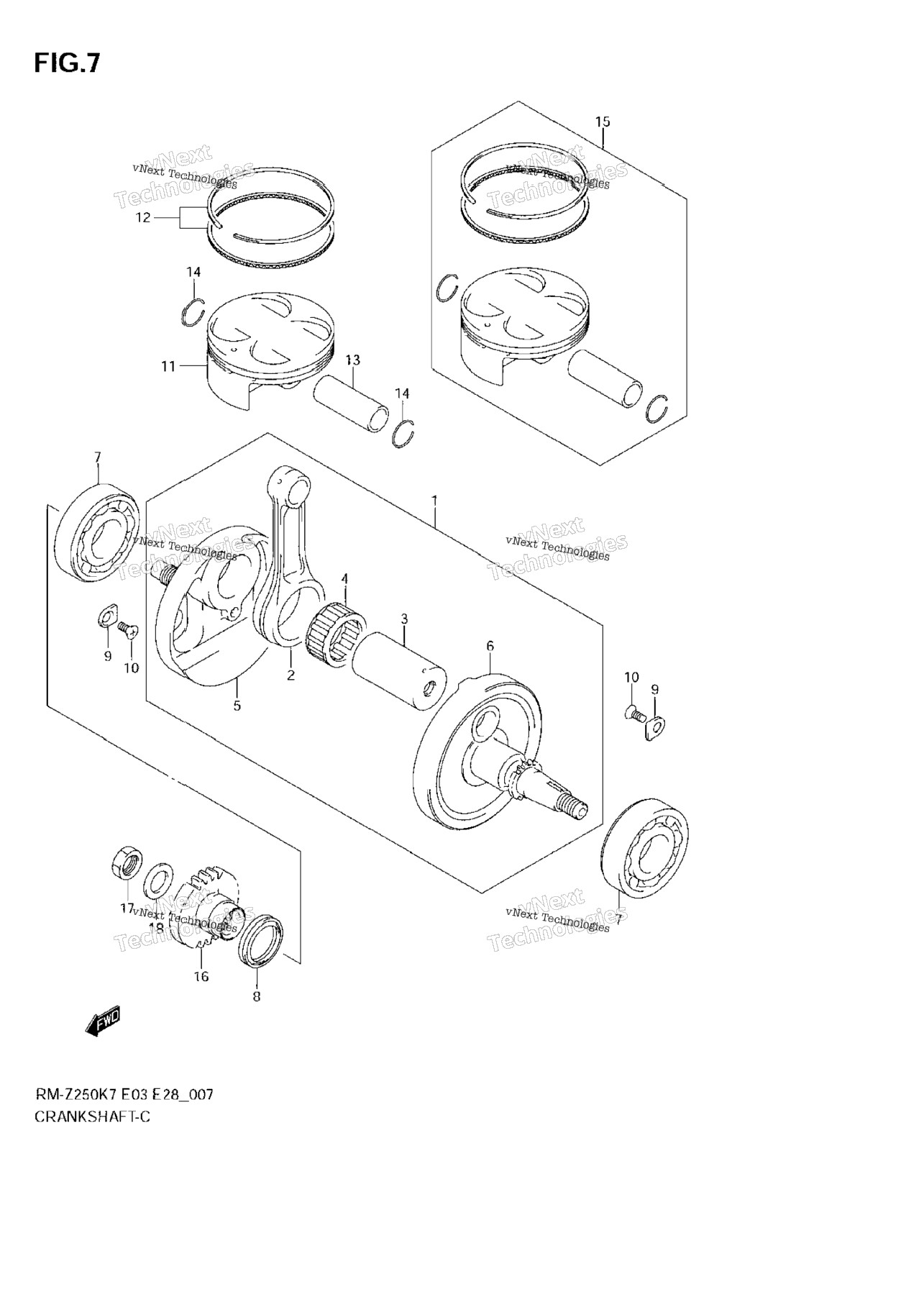

| 1 | 12200-10H10 | CRANKSHAFT ASSY Includes Item(s) 2 - 6 | 1 шт. | — | |
|
| 2 | 12161-10H10-0B0 | ROD, CONNECTING | 1 шт. | — | |
|
| 3 | 12210-10H10 | PIN | 1 шт. | — | |
|
| 4 | 09263-30054-0B0 | BEARING | 1 шт. | — | |
|
| 5 | 12220-10H10 | CRANKSHAFT, RH | 0 шт. | — | |
|
| 6 | 12261-10H10 | CRANKSHAFT, LH | 0 шт. | — | |
|
| 7 | 09262-30117 | BEARING | 2 шт. | — | |
|
| 8 | 09283-30061 | OIL SEAL, RH (30X40X7) | 1 шт. | — | |
|
| 9 | 24741-37F00 | RETAINER | 4 шт. | — | |
|
| 10 | 09126-06011 | SCREW | 4 шт. | — | |
|
| 11 | 12111-10H10-0F0 | PISTON MODEL K7 | 1 шт. | — | |
|
| 11 | 12111-10H20-0F0 | PISTON MODEL K8/K9 | 1 шт. | — | |
|
| 12 | 12140-10810 | RING SET, PISTON | 1 шт. | — | |
|
| 13 | 12151-10H00 | PIN, PISTON | 1 шт. | — | |
|
| 14 | 09381-16001 | CIRCLIP | 2 шт. | — | |
|
| 15 | 12110-10810 | PISTON KIT INC.REF.NO.11%14 MODEL K7 OPT NOT SHOWN | 1 шт. | — | |
|
| 15 | 12110-10820 | PISTON KIT INC.REF.NO.11%14 MODEL K8/K9 OPT NOT SHOWN | 1 шт. | — | |
|
| 16 | 21111-10H00 | GEAR, PRIMARY DRIVE | 1 шт. | — | |
|
| 17 | 09140-16036 | NUT | 1 шт. | — | |
|
| 18 | 09164-16002 | WASHER | 1 шт. | — | |
|
