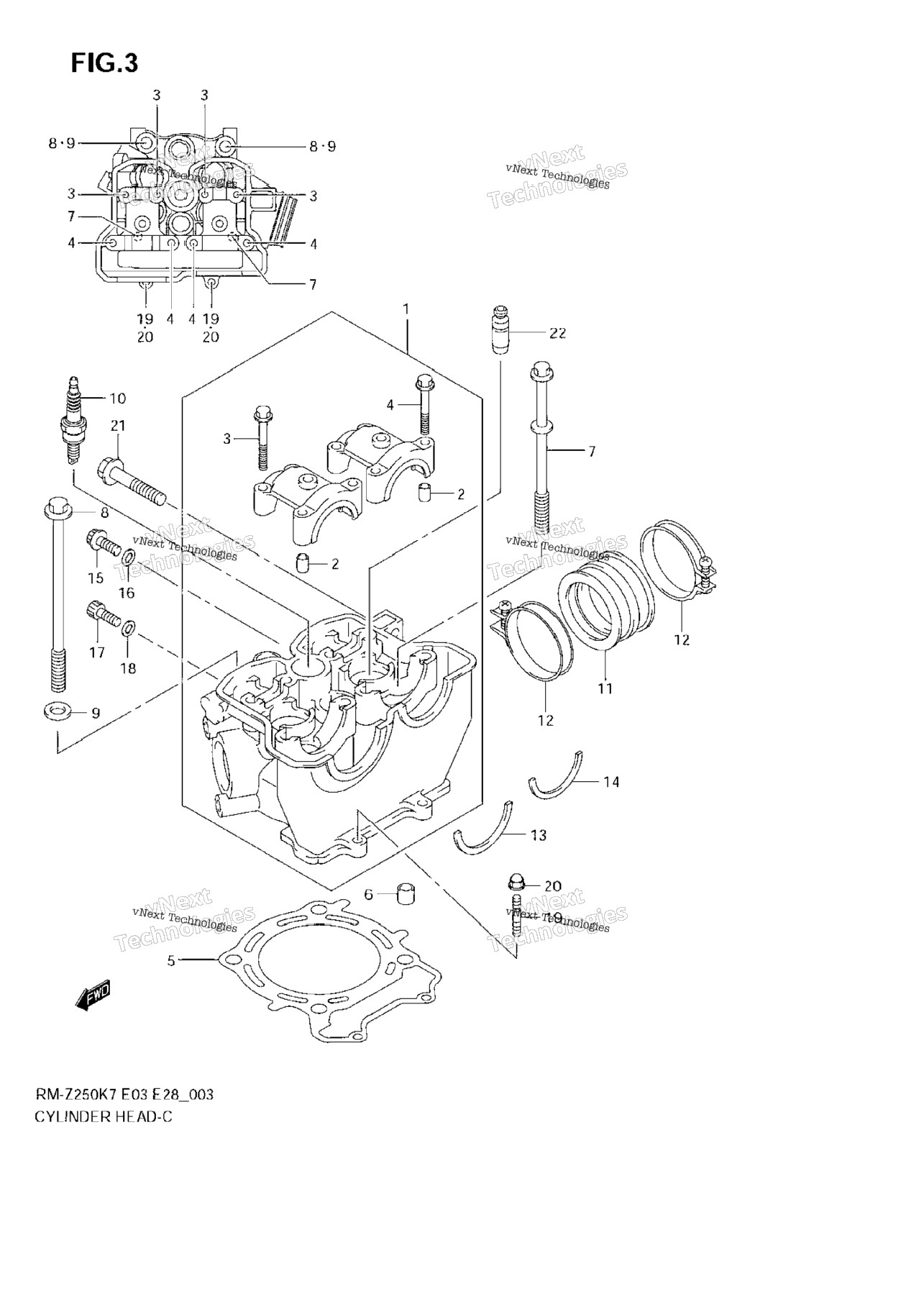

| 1 | 11100-10H02 | HEAD ASSY, CYLINDER MODEL K7 | 1 шт. | — | |
|
| 1 | 11100-10H10 | HEAD ASSY, CYLINDER MODEL K8/K9; Includes Item(s) 2 - 4 | 1 шт. | — | |
|
| 2 | 09206-08001 | PIN, CAMSHAFT HOUSING | 4 шт. | — | |
|
| 3 | 07130-0640B | BOLT, CAMSHAFT HOUSING | 4 шт. | — | |
|
| 4 | 07120-0645B | BOLT, CAMSHAFT HOUSING | 4 шт. | — | |
|
| 5 | 11141-10H00 | GASKET, CYLINDER HEAD | 1 шт. | — | |
|
| 6 | 04211-13189 | PIN, CYL HEAD KNOCK | 2 шт. | — | |
|
| 7 | 11117-10H00 | BOLT, CYLINDER HEAD | 2 шт. | — | |
|
| 8 | 09103-10407 | BOLT, CYLINDER HEAD (10X124) | 2 шт. | — | |
|
| 9 | 09168-10031 | GASKET (10.2X20X2.3) | 2 шт. | — | |
|
| 10 | 09482-00597 | PLUG, SPARK (CR8EIA-10) | 1 шт. | — | |
|
| 11 | 13111-10H00 | PIPE, INTAKE | 1 шт. | — | |
|
| 12 | 13170-35G00 | CLAMP, INTAKE PIPE | 2 шт. | — | |
|
| 13 | 12749-10H00 | C RING | 1 шт. | — | |
|
| 14 | 12749-35G00 | C RING | 1 шт. | — | |
|
| 15 | 07120-0610B | BOLT, OIL CHECK | 1 шт. | — | |
|
| 16 | 09168-06004 | GASKET | 1 шт. | — | |
|
| 17 | 07130-0812B | BOLT, OIL CHECK | 1 шт. | — | |
|
| 18 | 09168-08015 | GASKET | 1 шт. | — | |
|
| 19 | 01421-0620A | BOLT, STUD | 2 шт. | — | |
|
| 20 | 08313-2006A | NUT | 2 шт. | — | |
|
| 21 | 09103-10235 | BOLT, ENG MTG (10X50) | 1 шт. | — | |
|
| 22 | 11115-10H70 | GUIDE, VALVE (OS 0.3) OPT | 4 шт. | — | |
|
