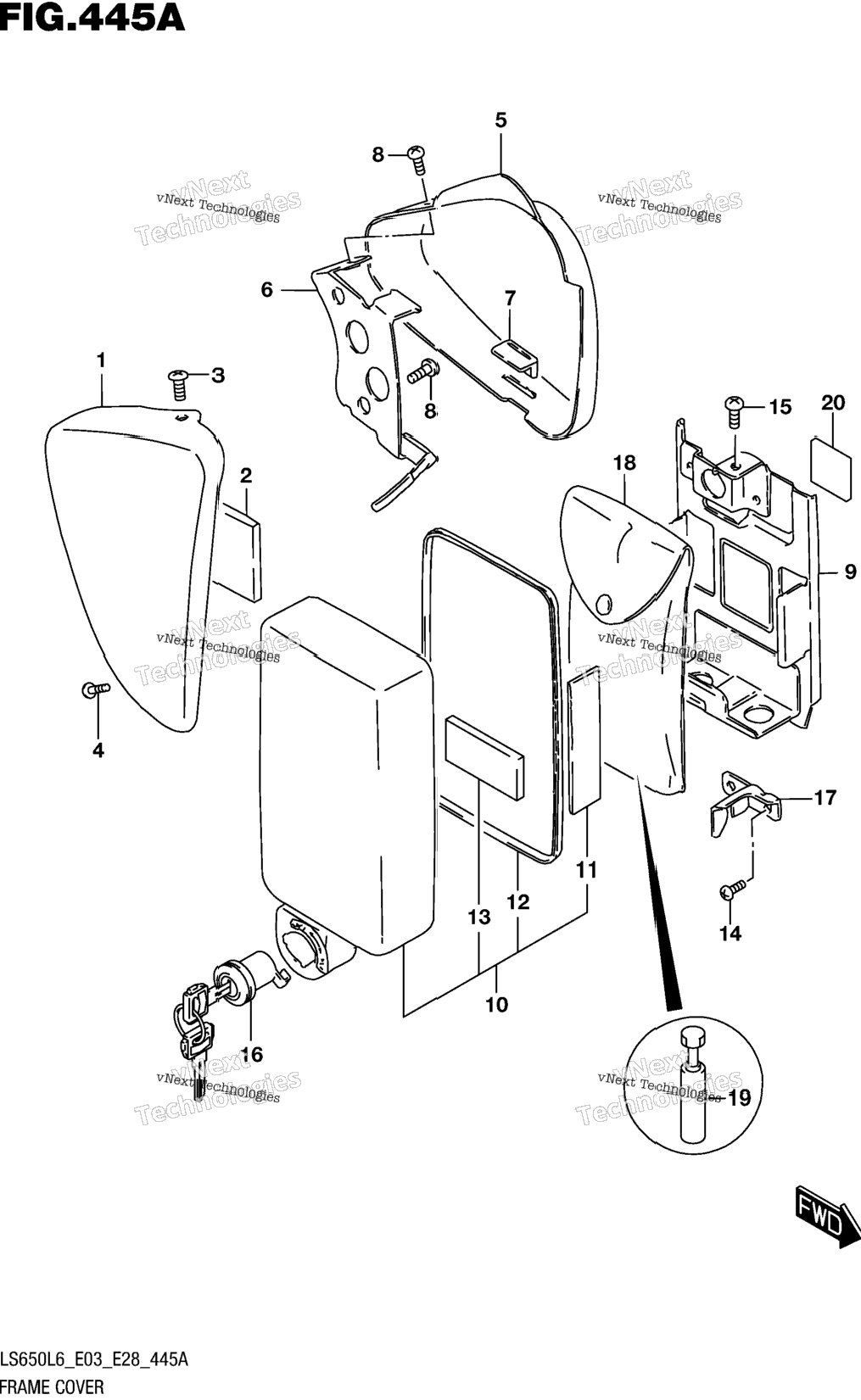

| 1-1 | 47100-24CB0-YSF | COVER ASSY, FRAME RH (BLUE) | 1 шт. | — | |
|
| 1-2 | 47100-24CB0-YWW | COVER ASSY, FRAME RH (WHITE) | 1 шт. | — | |
|
| 2 | 13719-84150 | CUSHION (40X40X5) | 1 шт. | — | |
|
| 3 | 02142-0510B | SCREW | 2 шт. | — | |
|
| 4 | 02112-7516B | SCREW | 1 шт. | — | |
|
| 5-1 | 47200-24CB0-YSF | COVER ASSY, FRAME LH (BLUE) | 0 шт. | — | |
|
| 5-2 | 47200-24CB0-YWW | COVER ASSY, FRAME LH (WHITE) | 1 шт. | — | |
|
| 6 | 47180-24B03 | BRACKET, FRAME COVER LH | 1 шт. | — | |
|
| 7 | 47117-45000 | CUSHION, FRAME COVER LH | 1 шт. | — | |
|
| 8 | 02122-0612B | SCREW | 2 шт. | — | |
|
| 9 | 47430-24B01 | HOLDER, TOOL | 1 шт. | — | |
|
| 10 | 47440-24B20 | COVER, TOOL HOLDER | 1 шт. | — | |
|
| 11 | 33652-38A10 | .PROTECTOR, BATTERY | 2 шт. | — | |
|
| 12 | 47445-24B00 | .MOLDING, TOOL HOLDER | 1 шт. | — | |
|
| 13 | 33652-31F00 | .CUSHION, TOOL HOLDER | 2 шт. | — | |
|
| 14 | 02142-0510A | SCREW | 2 шт. | — | |
|
| 15 | 02112-0610A | SCREW | 1 шт. | — | |
|
| 16 | 95700-24871 | LOCK SET, TOOL HOLDER | 1 шт. | — | |
|
| 17 | 47434-24B00 | PLATE, TOOL HOLDER LOCK | 1 шт. | — | |
|
| 18 | 09800-21055 | TOOL ASSY | 1 шт. | — | |
|
| 19 | 96220-24B00 | GAUGE ASSY, TENSION | 1 шт. | — | |
|
| 20 | 33652-20C00 | PROTECTOR (50X50X5) (30X30) | 0 шт. | — | |
|
| 20 | 33652-20C00 | PROTECTOR (50X50X5) CUT AS REQUIRED PROF | 1 шт. | — | |
|
