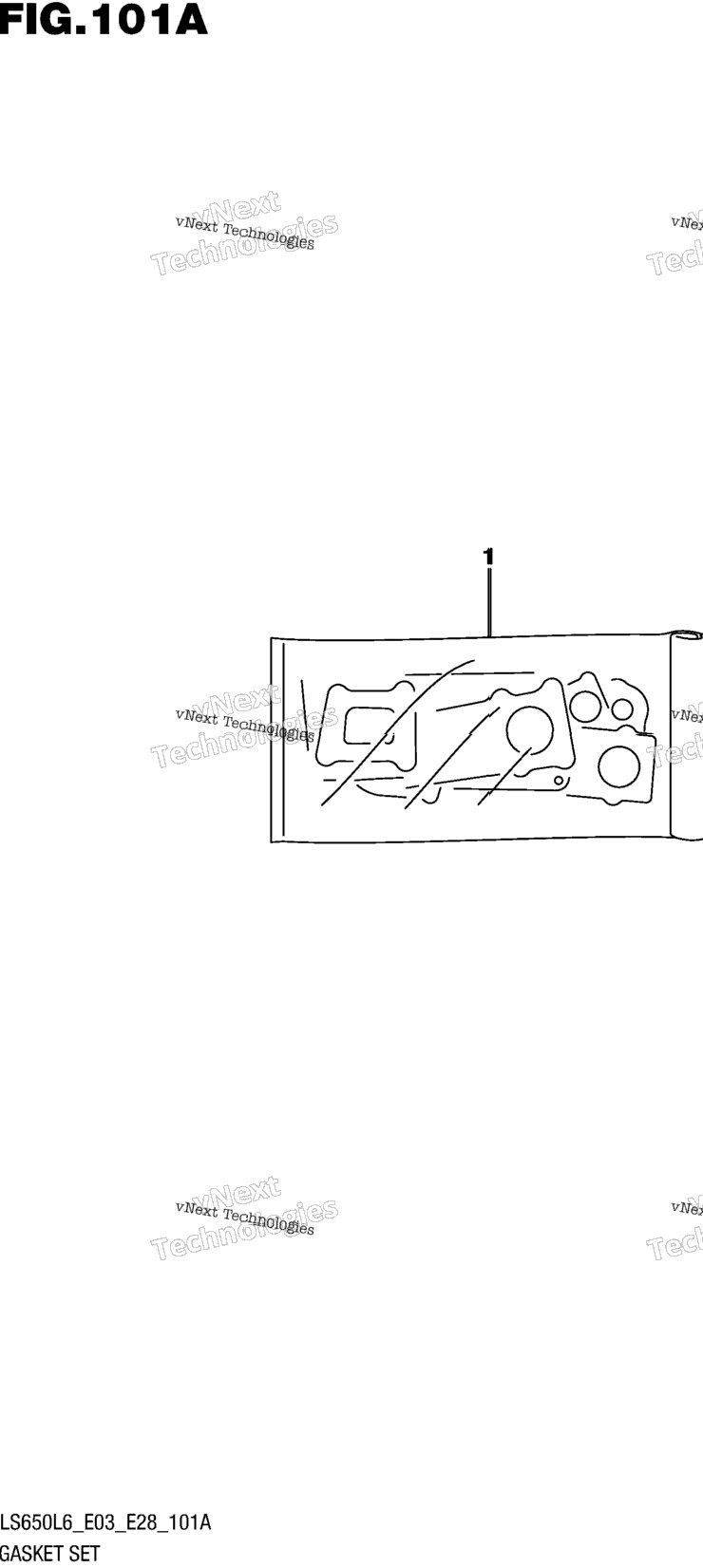

| 1 | 11400-24880 | GASKET SET OPT | 1 шт. | — | |
|
| 2 | 11141-24B03 | .GASKET, CYLINDER HEAD NOT ILLUSTRATED | 1 шт. | — | |
|
| 3 | 11178-24B00 | .O RING, HEAD COVER NOT ILLUSTRATED | 1 шт. | — | |
|
| 4 | 11241-24B01-H17 | .GASKET, CYLINDER NOT ILLUSTRATED | 1 шт. | — | |
|
| 5 | 11482-24B20 | .GASKET, CLUTCH COVER NOT ILLUSTRATED | 1 шт. | — | |
|
| 6 | 11483-24B01-H17 | .GASKET, GENERATOR COVER NOT ILLUSTRATED | 1 шт. | — | |
|
| 7 | 11485-24B20 | .GASKET, GEAR SHIFT COVER NOT ILLUSTRATED | 1 шт. | — | |
|
| 8 | 14181-45C00 | .GASKET, EXHAUST PIPE NOT ILLUSTRATED | 1 шт. | — | |
|
| 9 | 09168-06023 | .GASKET (5.8X13X1.2) NOT ILLUSTRATED | 11 шт. | — | |
|
| 10 | 09168-10031 | GASKET (10.2X20X2.3) NOT ILLUSTRATED | 4 шт. | — | |
|
| 11 | 09280-07004 | O-RING (D:1.9 ID:6.8) NOT ILLUSTRATED | 1 шт. | — | |
|
| 12 | 09280-09005 | .O RING (D:1.9,ID:8.6) NOT ILLUSTRATED | 1 шт. | — | |
|
| 13 | 09280-10013 | .O RING (D:2.4,ID:9.6) NOT ILLUSTRATED | 1 шт. | — | |
|
| 14 | 09280-15007 | .O RING (D:2.4,ID:15.8) NOT ILLUSTRATED | 1 шт. | — | |
|
| 15 | 09280-17003 | O-RING (D:3.1,ID:16.8) NOT ILLUSTRATED | 1 шт. | — | |
|
| 16 | 09280-24010 | .O RING (D:2.4,ID:23.7) NOT ILLUSTRATED | 1 шт. | — | |
|
| 17 | 09280-33004 | O-RING (D:3.1,ID:32.7) NOT ILLUSTRATED | 1 шт. | — | |
|
| 18 | 09280-46002 | .O RING (D:2.4,ID:45.7) NOT ILLUSTRATED | 1 шт. | — | |
|
| 19 | 09280-60004 | .O RING (D:2.4,ID:23) NOT ILLUSTRATED | 2 шт. | — | |
|
| 20 | 09280-72001 | .O RING (D:2.4,ID:73) NOT ILLUSTRATED | 1 шт. | — | |
|
