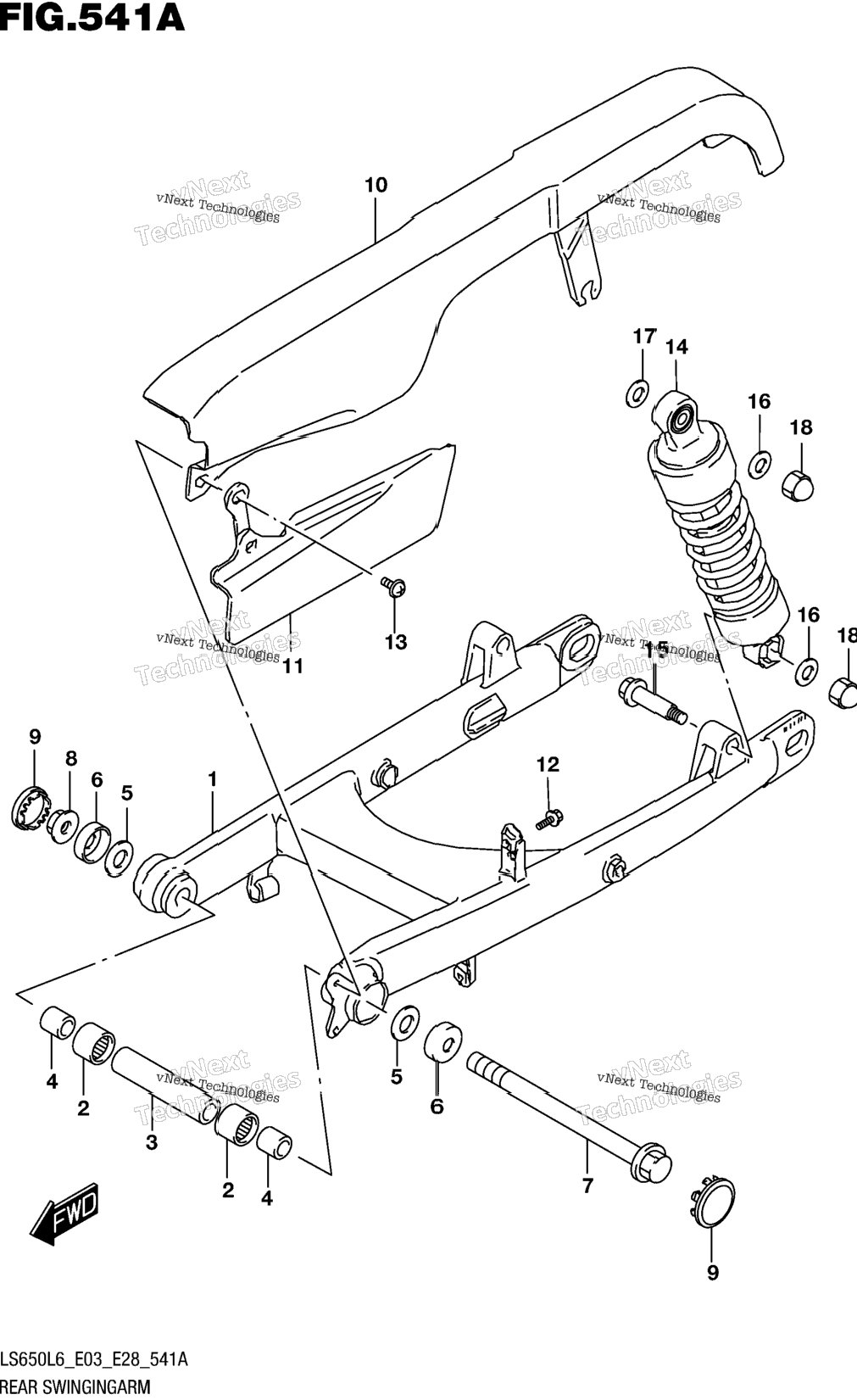

| 1 | 61100-24B03-019 | SWINGING ARM, REAR (BLACK) | 1 шт. | — | |
|
| 2 | 09263-22017 | BEARING (22X29X30) | 2 шт. | — | |
|
| 3 | 61282-24B01 | SPACER, REAR SWINGING ARM | 0 шт. | — | |
|
| 4 | 61282-24B01 | PIVOT CENTER | 0 шт. | — | |
|
| 5 | 61251-24B00 | SPACER, REAR SWINGING ARM | 2 шт. | — | |
|
| 6 | 61251-24B00 | PIVOT | 0 шт. | — | |
|
| 7 | 08211-14341 | WASHER | 2 шт. | — | |
|
| 8 | 61262-45002 | DUST SEAL, REAR SWINGING ARM | 2 шт. | — | |
|
| 9 | 61262-45002 | PIVOT | 0 шт. | — | |
|
| 10 | 61211-24B00 | SHAFT, REAR SWINGING ARM PIVO | 1 шт. | — | |
|
| 11 | 08319-3114A | NUT | 1 шт. | — | |
|
| 12 | 61222-38A01 | CAP, REAR SWINGING ARM PIVOT | 2 шт. | — | |
|
| 13 | 61310-24B02 | BELT CASE, UPPER | 1 шт. | — | |
|
| 14 | 61320-24B02 | BELT CASE, LOWER | 1 шт. | — | |
|
| 15 | 01550-0612B | BOLT | 2 шт. | — | |
|
| 16 | 02112-7612B | SCREW | 2 шт. | — | |
|
| 17 | 62100-24B00 | SHOCK ABSORBER ASSY, REAR | 2 шт. | — | |
|
| 18 | 62313-24B00 | BOLT, REAR SHOCK ABSORBER | 2 шт. | — | |
|
| 19 | 62313-24B00 | LOWER | 0 шт. | — | |
|
| 20 | 09160-10035 | WASHER (10.5X28X2.3) | 4 шт. | — | |
|
| 21 | 09160-14009 | WASHER,14.5X29X2.3 (14.5X29X2 | 2 шт. | — | |
|
| 22 | 08313-10107 | NUT | 4 шт. | — | |
|
