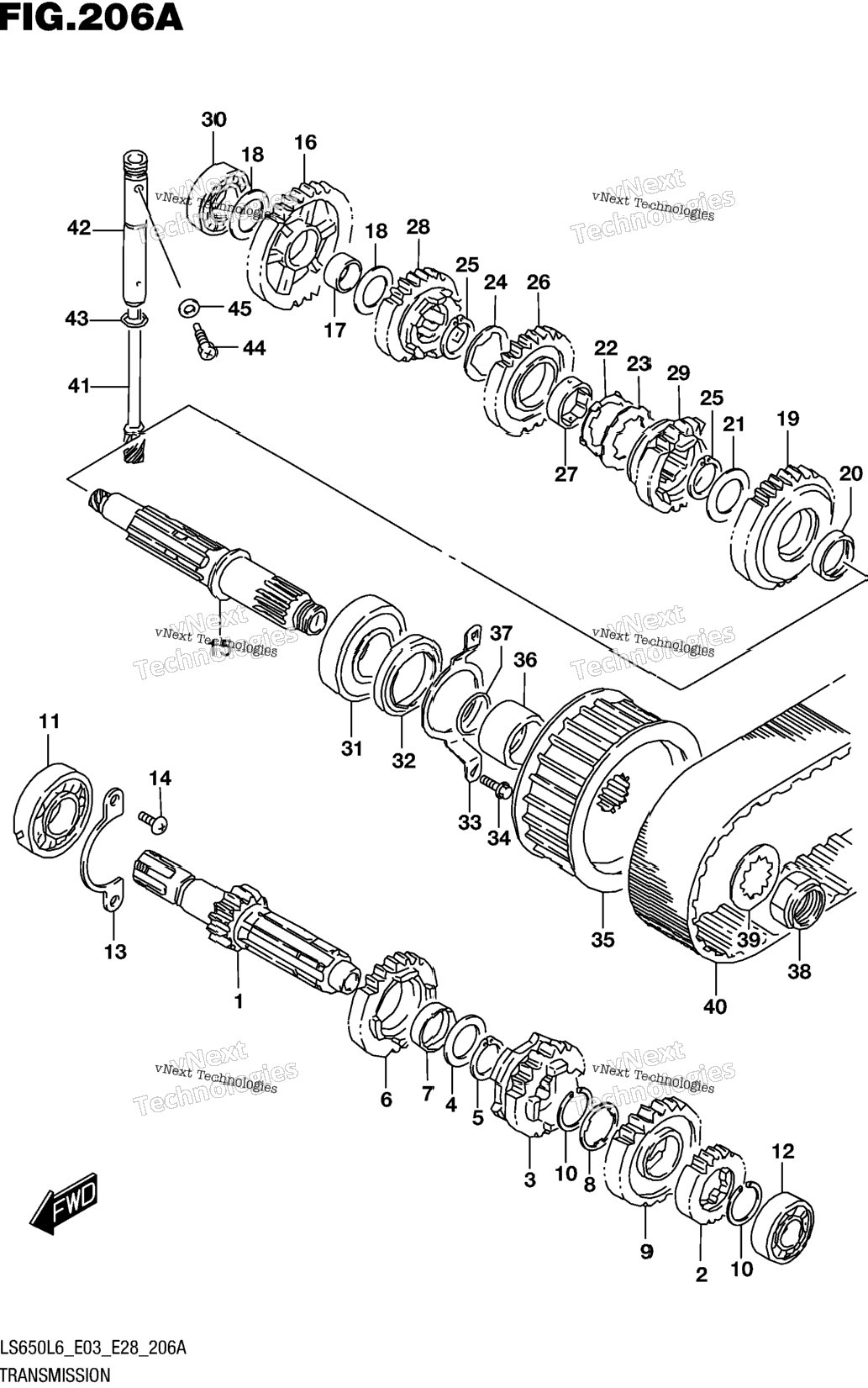

| 1 | 24121-24B12 | COUNTERSHAFT (NT:15) | 0 шт. | — | |
|
| 2 | 24221-24B21 | GEAR, 2ND DRIVE (NT:19) | 0 шт. | — | |
|
| 3 | 24231-24B30 | GEAR, 3RD DRIVEN (NT:21) | 1 шт. | — | |
|
| 4 | 08211-25351 | WASHER | 1 шт. | — | |
|
| 5 | 09380-25003 | SNAP RING | 1 шт. | — | |
|
| 6 | 24241-24B20 | GEAR, 4TH DRIVE (NT:23) | 0 шт. | — | |
|
| 7 | 24252-19F00 | BUSH | 1 шт. | — | |
|
| 8 | 09167-25012 | WASHER LOCK (25.1X31X1.0) | 1 шт. | — | |
|
| 9 | 24251-24B13 | GEAR, 5TH DRIVE (NT:26) | 1 шт. | — | |
|
| 10 | 09380-25010 | CIRCLIP | 2 шт. | — | |
|
| 11 | 09262-22028 | BEARING (22X56X16) RH | 1 шт. | — | |
|
| 12 | 09262-17027 | BEARING (17X40X12) LH | 1 шт. | — | |
|
| 13 | 24741-24B00 | RETAINER, CENTER SHAFT | 1 шт. | — | |
|
| 14 | 02112-0612A | SCREW | 2 шт. | — | |
|
| 15 | 24130-24B12 | DRIVE SHAFT | 1 шт. | — | |
|
| 16 | 24311-24B11 | GEAR, 1ST DRIVEN (NT:35) | 0 шт. | — | |
|
| 17 | 09300-20032 | BUSH (20X24X13) | 1 шт. | — | |
|
| 18 | 09181-20195 | SHIM (20X30X1) | 2 шт. | — | |
|
| 19 | 24321-24B20 | GEAR, 2ND DRIVEN (NT:30) | 0 шт. | — | |
|
| 20 | 09300-25020 | BUSH (25X29X8) | 1 шт. | — | |
|
| 21 | 08211-25351 | WASHER | 1 шт. | — | |
|
| 22 | 09169-25001 | WASHER (25.1X37X2.5) RH | 1 шт. | — | |
|
| 23 | 09167-25013 | WASHER,LOCK (25.1X41X1.5) LH | 1 шт. | — | |
|
| 24 | 09167-25016 | LOCK WASHER | 1 шт. | — | |
|
| 25 | 09380-25003 | SNAP RING | 2 шт. | — | |
|
| 26 | 24331-24B20 | GEAR, 3RD DRIVEN (NT:24) | 0 шт. | — | |
|
| 27 | 24332-24510 | BUSH, DRIVEN GEAR | 1 шт. | — | |
|
| 28 | 24341-24B20 | GEAR, 4TH DRIVEN (NT:22) | 0 шт. | — | |
|
| 29 | 24351-24B13 | GEAR, 5TH DRIVEN (NT:23) | 1 шт. | — | |
|
| 30 | 09262-20106 | BEARING (20X42X12) RH | 1 шт. | — | |
|
| 31 | 09262-25125 | BEARING (25X62X17) LH | 1 шт. | — | |
|
| 32 | 09283-36003 | OIL SEAL (36X50X6) | 1 шт. | — | |
|
| 33 | 24751-24B00 | RETAINER, DRIVE SHAFT OIL SEA | 1 шт. | — | |
|
| 34 | 01547-0612A | BOLT | 1 шт. | — | |
|
| 35 | 27510-24B01 | PULLEY, FRONT | 1 шт. | — | |
|
| 36 | 27531-24B00 | SPACER, FRONT PULLEY | 1 шт. | — | |
|
| 37 | 09280-24010 | O RING (D:2.4,ID:23.7) | 1 шт. | — | |
|
| 38 | 09159-20004 | NUT | 1 шт. | — | |
|
| 39 | 09167-25027 | LOCK WASHER | 1 шт. | — | |
|
| 40 | 27611-24B00-133 | BELT, DRIVE | 1 шт. | — | |
|
| 41 | 26131-24B00 | GEAR, SPDOM DRIVEN (NT:8) | 1 шт. | — | |
|
| 42 | 26481-24B01 | SLEEVE, SPDOM DRIVEN GEAR | 1 шт. | — | |
|
| 43 | 09280-10001 | O RING (D:1.3,ID:9.6) | 1 шт. | — | |
|
| 44 | 09135-06501 | BOLT (6X10) | 1 шт. | — | |
|
| 45 | 09168-06004 | GASKET (6.2X11X1.2) | 1 шт. | — | |
|
