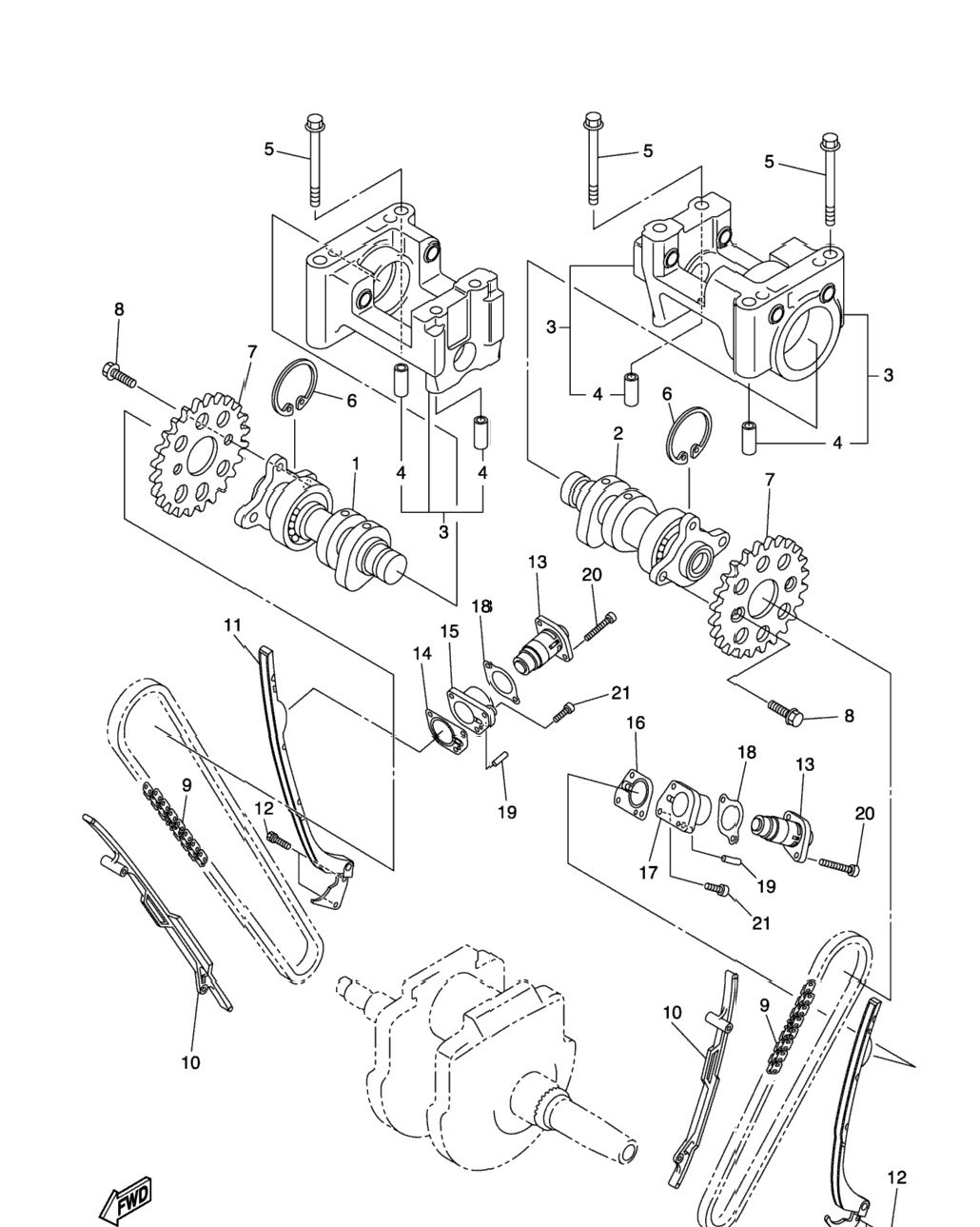

| 1 | 3D8-12170-10-00 | Camshaft Assy 1 | 1 шт. | — | |
|
| 2 | 3D8-12180-10-00 | Camshaft Assy 2 | 1 шт. | — | |
|
| 3 | 3D8-12194-00-00 | Carrier, Camshaft 1 | 2 шт. | — | |
|
| 4 | 91808-16023-00 | . .Pin, Dowel | 2 шт. | — | |
|
| 5 | 90105-06362-00 | Bolt, Flange | 8 шт. | — | |
|
| 6 | 99009-52500-00 | Circlip | 2 шт. | — | |
|
| 7 | 3D8-12176-00-00 | Sprocket, Cam Chain | 2 шт. | — | |
|
| 8 | 90105-07004-00 | Bolt, Flange | 4 шт. | — | |
|
| 9 | 94591-57132-00 | Chain | 2 шт. | — | |
|
| 10 | 3D8-12231-00-00 | Guide, Stopper 1 | 2 шт. | — | |
|
| 11 | 3D8-12241-00-00 | Guide, Stopper 2 | 2 шт. | — | |
|
| 12 | 90119-06173-00 | Bolt, With Washer | 4 шт. | — | |
|
| 13 | 3D8-12210-10-00 | Tensioner Assy, Cam Chain | 2 шт. | — | |
|
| 14 | 3D8-12213-00-00 | Gasket, Tensioner Case | 1 шт. | — | |
|
| 15 | 27D-11445-00-00 | Spacer | 1 шт. | — | |
|
| 16 | 3D8-12214-00-00 | Gasket | 1 шт. | — | |
|
| 17 | 27D-11485-00-00 | Spacer | 1 шт. | — | |
|
| 18 | 3D8-11195-00-00 | Gasket | 2 шт. | — | |
|
| 19 | 93603-09106-00 | Pin, Dowel | 2 шт. | — | |
|
| 20 | 91312-06045-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 21 | 91312-06035-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
