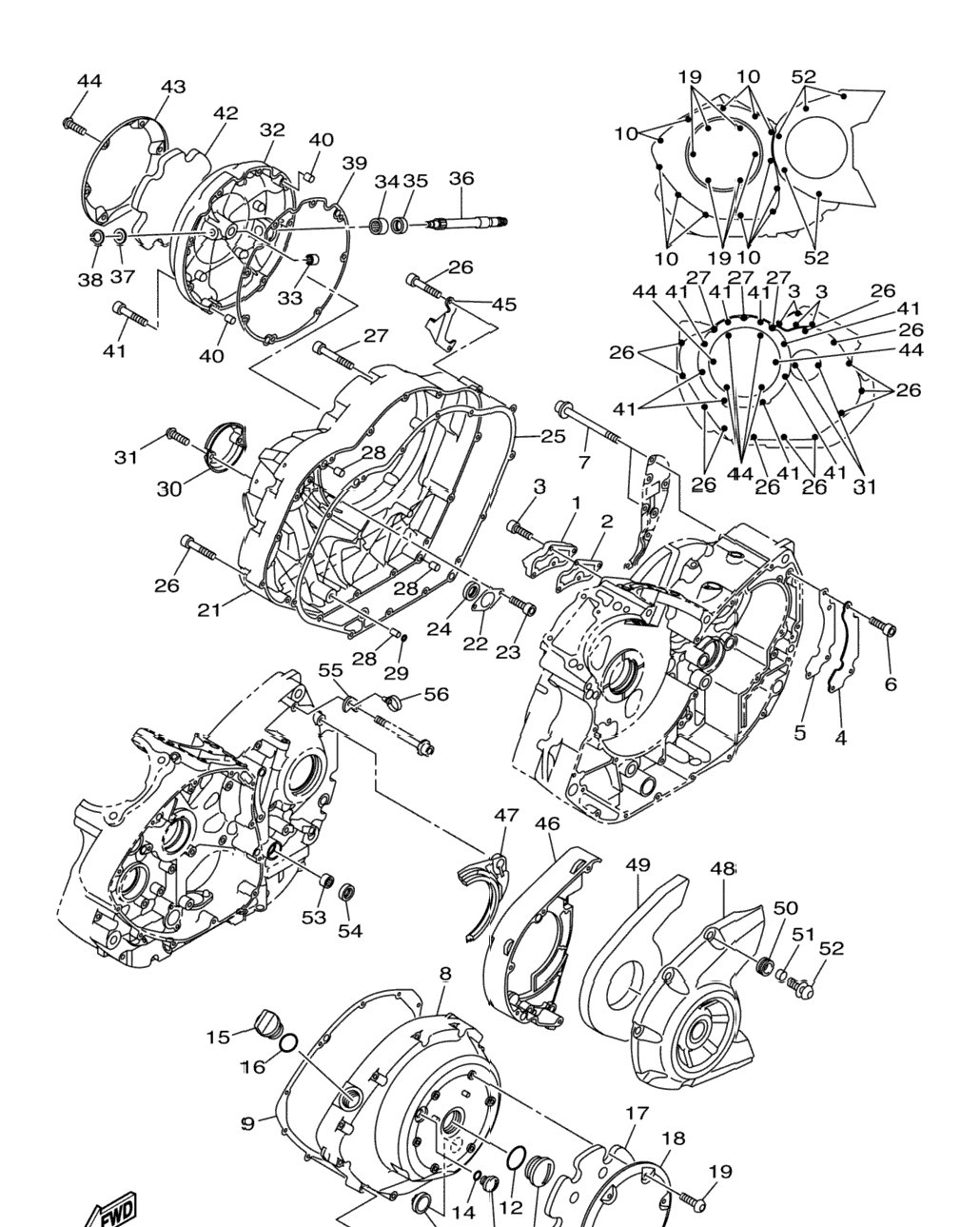

| 1 | 3D8-15416-00-00 | Cover, Oil Pump | 1 шт. | — | |
|
| 2 | 3D8-15454-00-00 | Gasket 1 | 1 шт. | — | |
|
| 3 | 90110-06274-00 | .Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 4 | 3D8-15358-00-00 | Separator, Oil | 1 шт. | — | |
|
| 5 | 3D8-15353-00-00 | Gasket, Drain | 1 шт. | — | |
|
| 6 | 90110-06161-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 7 | 90110-06270-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 8 | 3D8-15411-00-00 | Cover, Crankcase 1 | 1 шт. | — | |
|
| 9 | 3D8-15451-00-00 | Gasket, Crankcase Cover 1 | 1 шт. | — | |
|
| 11 | 90340-36078-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 12 | 93210-357A3-00 | O-Ring | 1 шт. | — | |
|
| 13 | 90340-14117-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 14 | 93210-14369-00 | O-Ring | 1 шт. | — | |
|
| 15 | 3F9-15362-10-00 | Plug, Oil Level | 1 шт. | — | |
|
| 16 | 93210-27370-00 | O-Ring | 1 шт. | — | |
|
| 17 | 27D-1542A-00-00 | Damper 1 | 1 шт. | — | |
|
| 18 | 27D-15492-00-00 | Cover | 1 шт. | — | |
|
| 20 | 2H7-15361-00-00 | Gauge, Level | 1 шт. | — | |
|
| 21 | 3D8-15421-00-00 | Cover, Crankcase 2 | 1 шт. | — | |
|
| 22 | 3D8-15388-00-00 | Plate, Bearing Cover | 1 шт. | — | |
|
| 23 | 90110-06182-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 24 | 93101-14102-00 | Oil Seal | 1 шт. | — | |
|
| 25 | 3D8-15461-00-00 | Gasket, Crankcase Cover 2 | 1 шт. | — | |
|
| 26 | 91314-06040-00 | Bolt, Hexagon Socket Head | 12 шт. | — | |
|
| 26 | 91314-06040-00 | Bolt, Hexagon Socket Head | 12 шт. | — | |
|
| 27 | 91314-06065-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 29 | 93210-07135-00 | O-Ring | 1 шт. | — | |
|
| 30 | 3D8-15423-01-00 | Cover 2 | 1 шт. | — | |
|
| 32 | 3D8-15414-00-00 | Cover, Air Cleaner | 1 шт. | — | |
|
| 33 | 93317-11096-00 | Bearing | 1 шт. | — | |
|
| 34 | 93315-31502-00 | Bearing | 1 шт. | — | |
|
| 35 | 93102-15212-00 | Oil Seal | 1 шт. | — | |
|
| 36 | 3D8-16382-00-00 | Axle, Push Lever | 1 шт. | — | |
|
| 37 | 92902-08600-00 | Washer, Plate | 1 шт. | — | |
|
| 38 | 99002-07600-00 | Circlip (E) | 1 шт. | — | |
|
| 39 | 3D8-15453-00-00 | Gasket | 1 шт. | — | |
|
| 40 | 99530-08012-00 | Pin, Dowel | 3 шт. | — | |
|
| 40 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 41 | 91314-06030-00 | Bolt, Hexagon Socket Head | 8 шт. | — | |
|
| 42 | 27D-1542B-00-00 | Damper 2 | 1 шт. | — | |
|
| 43 | 27D-15415-00-00 | Cover, 1 | 1 шт. | — | |
|
| 44 | 92014-06016-00 | Bolt, Button Head | 6 шт. | — | |
|
| 44 | 92014-06016-00 | Bolt, Button Head | 6 шт. | — | |
|
| 44 | 92014-06016-00 | Bolt, Button Head | 2 шт. | — | |
|
| 45 | 27D-15441-00-00 | Holder, Clutch Cable | 1 шт. | — | |
|
| 46 | 3D8-1541A-01-00 | Stay, Crankcase Cover 1 | 1 шт. | — | |
|
| 47 | 3D8-15337-02-00 | Damper 4 | 1 шт. | — | |
|
| 48 | 27D-15426-00-00 | Cover, Oil Pump 2 | 1 шт. | — | |
|
| 49 | 27D-15316-00-00 | Damper 1 | 1 шт. | — | |
|
| 50 | 90480-13030-00 | Grommet | 5 шт. | — | |
|
| 51 | 90387-06207-00 | Collar | 5 шт. | — | |
|
| 52 | 90111-06130-00 | Bolt, Hex. Socket Button | 5 шт. | — | |
|
| 53 | 93317-11287-00 | Bearing | 1 шт. | — | |
|
| 54 | 93102-12106-00 | Oil Seal (Sd 12-22-5 Hs) | 1 шт. | — | |
|
| 55 | 3D8-15544-00-00 | Stay 1 | 1 шт. | — | |
|
| 56 | 90464-16006-00 | Clamp | 1 шт. | — | |
|
