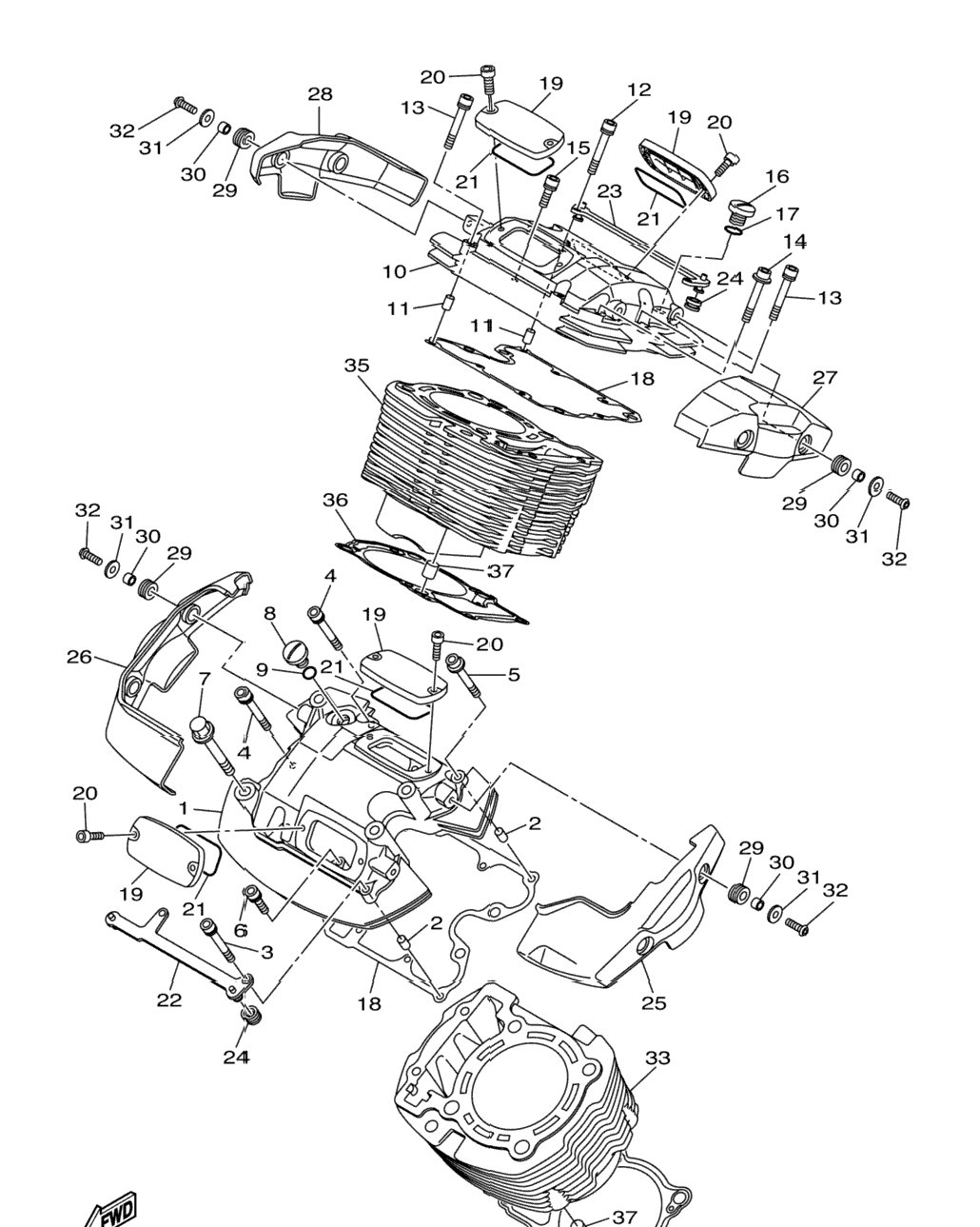

| 1 | 3D8-11191-00-00 | Cover, Cylinder Head 1 | 1 шт. | — | |
|
| 7 | 95812-10090-00 | .Bolt, Flange | 4 шт. | — | |
|
| 10 | 3D8-11192-00-00 | Cover, Cylinder Head 2 | 1 шт. | — | |
|
| 11 | 91808-16023-00 | .Pin, Dowel | 2 шт. | — | |
|
| 11 | 91808-16023-00 | .Pin, Dowel | 2 шт. | — | |
|
| 12 | 90110-06269-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 12 | 90110-06269-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 13 | 90110-06268-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 13 | 90110-06268-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 14 | 90110-06166-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 14 | 90110-06166-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 15 | 90110-06267-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 15 | 90110-06267-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 16 | 90340-14117-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 16 | 90340-14117-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 17 | 93210-14369-00 | O-Ring | 1 шт. | — | |
|
| 17 | 93210-14369-00 | O-Ring | 1 шт. | — | |
|
| 18 | 3D8-11193-00-00 | Gasket, Head Cover 1 | 2 шт. | — | |
|
| 19 | 27D-11186-00-00 | Cover, Cylinder Head Side 2 | 4 шт. | — | |
|
| 20 | 91312-06020-00 | Bolt, Hexagon Socket Head | 8 шт. | — | |
|
| 21 | 3D8-11196-00-00 | Gasket, Cylinder Head Side | 4 шт. | — | |
|
| 22 | 3D8-1112F-01-00 | Plate 2 | 1 шт. | — | |
|
| 23 | 3D8-1113F-01-00 | Plate 3 | 1 шт. | — | |
|
| 24 | 90480-10334-00 | Grommet | 4 шт. | — | |
|
| 25 | 3D8-1111M-00-00 | Cover 1 | 1 шт. | — | |
|
| 26 | 3D8-1111N-00-00 | Cover 2 | 1 шт. | — | |
|
| 27 | 3D8-1111P-00-00 | Cover 3 | 1 шт. | — | |
|
| 28 | 3D8-1111R-00-00 | Cover 4 | 1 шт. | — | |
|
| 29 | 90480-13022-00 | Grommet | 8 шт. | — | |
|
| 30 | 90387-06207-00 | Collar | 8 шт. | — | |
|
| 31 | 90201-06088-00 | Washer, Plate | 8 шт. | — | |
|
| 32 | 90111-06038-00 | Bolt, Hex. Socket Button | 8 шт. | — | |
|
| 33 | 3D8-11311-01-00 | Cylinder 1 | 1 шт. | — | |
|
| 34 | 3D8-11351-00-00 | Gasket, Cylinder | 1 шт. | — | |
|
| 35 | 3D8-11321-01-00 | Cylinder 2 | 1 шт. | — | |
|
| 36 | 3D8-11352-00-00 | Gasket, Cylinder 2 | 1 шт. | — | |
|
| 37 | 99530-08016-00 | Pin, Dowel | 4 шт. | — | |
|
