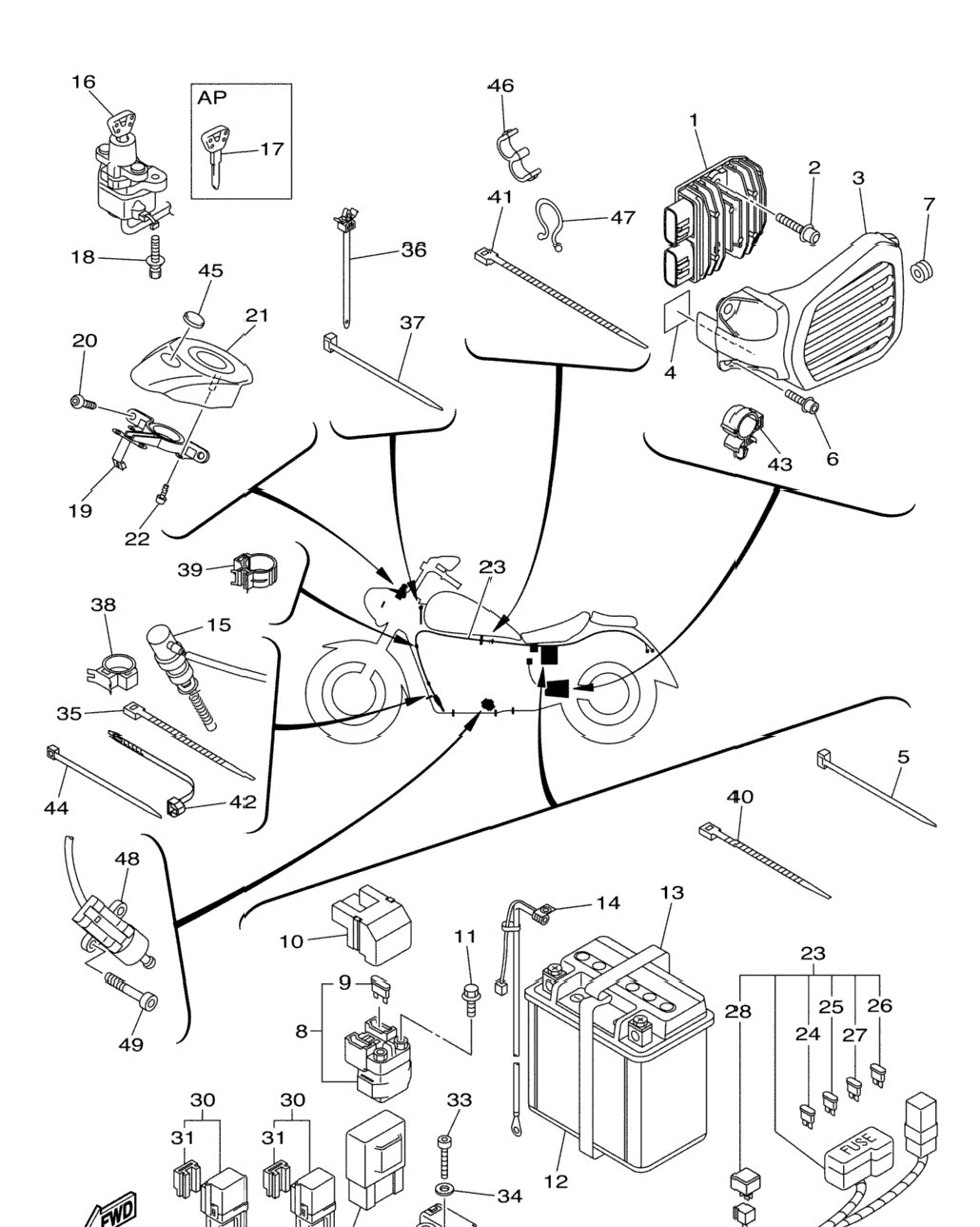

| 1 | 27D-81960-00-00 | Rectifier & Regulator Assy | 1 шт. | — | |
|
| 2 | 90110-06263-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 3 | 3D8-21247-02-00 | Case, Regulator | 1 шт. | — | |
|
| 4 | 2GH-24185-00-00 | Damper, Locating 5 | 1 шт. | — | |
|
| 5 | 5Y9-12491-00-00 | Clamp 1 | 1 шт. | — | |
|
| 6 | 90110-06215-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 7 | 90480-12550-00 | Grommet | 1 шт. | — | |
|
| 8 | 3D8-81940-00-00 | Starter Relay Assy (Rc19-074) | 1 шт. | — | |
|
| 9 | 42X-82151-00-00 | . .Fuse (10A-Bl) | 2 шт. | — | |
|
| 10 | 5SL-82119-10-00 | Cover, Lead Wire | 1 шт. | — | |
|
| 11 | 95022-06008-00 | Bolt, Flange | 2 шт. | — | |
|
| 12 | 4SH-82100-22-00 | Battery Assy (Yuasa Ytx20l-Bs) | 1 шт. | — | |
|
| 13 | 4AS-82131-01-00 | Band, Battery | 1 шт. | — | |
|
| 14 | 27D-82116-00-00 | Wire, Minus Lead | 1 шт. | — | |
|
| 15 | 3D8-82530-10-00 | Stop Switch Assy | 1 шт. | — | |
|
| 16 | 3D8-82501-01-00 | Main Switch Steering Lock | 1 шт. | — | |
|
| 17 | 4BH-82511-09-00 | Blank Key AP | 1 шт. | — | |
|
| 18 | 90109-08195-00 | Bolt | 2 шт. | — | |
|
| 19 | 3D8-2334G-00-00 | Bracket 1 | 1 шт. | — | |
|
| 20 | 92012-06014-00 | Bolt, Button Head | 2 шт. | — | |
|
| 21 | 3D8-82568-00-00 | Cover, Main Switch | 1 шт. | — | |
|
| 22 | 97702-40016-00 | Screw, Tapping | 4 шт. | — | |
|
| 23 | 3D8-82590-30-00 | Wire Harness Assy | 1 шт. | — | |
|
| 24 | 5JJ-82151-30-00 | . .Fuse (10A-Bl) | 4 шт. | — | |
|
| 25 | 5JJ-82151-10-00 | . .Fuse (15A-Bl) | 2 шт. | — | |
|
| 26 | 5JW-82151-10-00 | . .Fuse (50A) | 1 шт. | — | |
|
| 27 | 5JJ-82151-20-00 | . .Fuse (20A-Bl) | 3 шт. | — | |
|
| 28 | 3XV-81980-00-00 | . .Diode Assy | 1 шт. | — | |
|
| 29 | 5KS-81950-30-00 | Relay Assy (5Ks-30) | 1 шт. | — | |
|
| 30 | 1TP-81950-00-00 | Relay Assy (1Tp-00) | 2 шт. | — | |
|
| 31 | 5EA-81952-00-00 | . .Holder, Relay | 1 шт. | — | |
|
| 32 | 5PS-82576-01-00 | Sensor, Lean Angle | 1 шт. | — | |
|
| 33 | 90110-04003-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 34 | 90201-04027-00 | Washer, Plate | 2 шт. | — | |
|
| 35 | 1UA-82591-00-00 | Band | 9 шт. | — | |
|
| 36 | 90464-12089-00 | Clamp | 1 шт. | — | |
|
| 37 | 5Y9-12491-00-00 | Clamp 1 | 3 шт. | — | |
|
| 38 | 90464-10190-00 | Clamp | 2 шт. | — | |
|
| 39 | 90464-20191-00 | Clamp | 1 шт. | — | |
|
| 40 | 90464-30252-00 | Clamp FOR CALIFORNIA | 0 шт. | — | |
|
| 41 | 3MA-82591-00-00 | Band | 2 шт. | — | |
|
| 42 | 90464-80002-00 | Clamp | 3 шт. | — | |
|
| 43 | 90464-15195-00 | Clamp | 1 шт. | — | |
|
| 44 | 90464-16012-00 | Clamp | 1 шт. | — | |
|
| 45 | 90464-32060-00 | Clamp | 1 шт. | — | |
|
| 46 | 3D8-2341B-00-00 | Emblem | 1 шт. | — | |
|
| 47 | 90464-10M57-00 | Clamp | 1 шт. | — | |
|
| 48 | 90464-16039-00 | Clamp | 2 шт. | — | |
|
| 49 | 3D8-82566-B0-00 | Switch, Side Stand | 1 шт. | — | |
|
| 50 | 90110-05033-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
