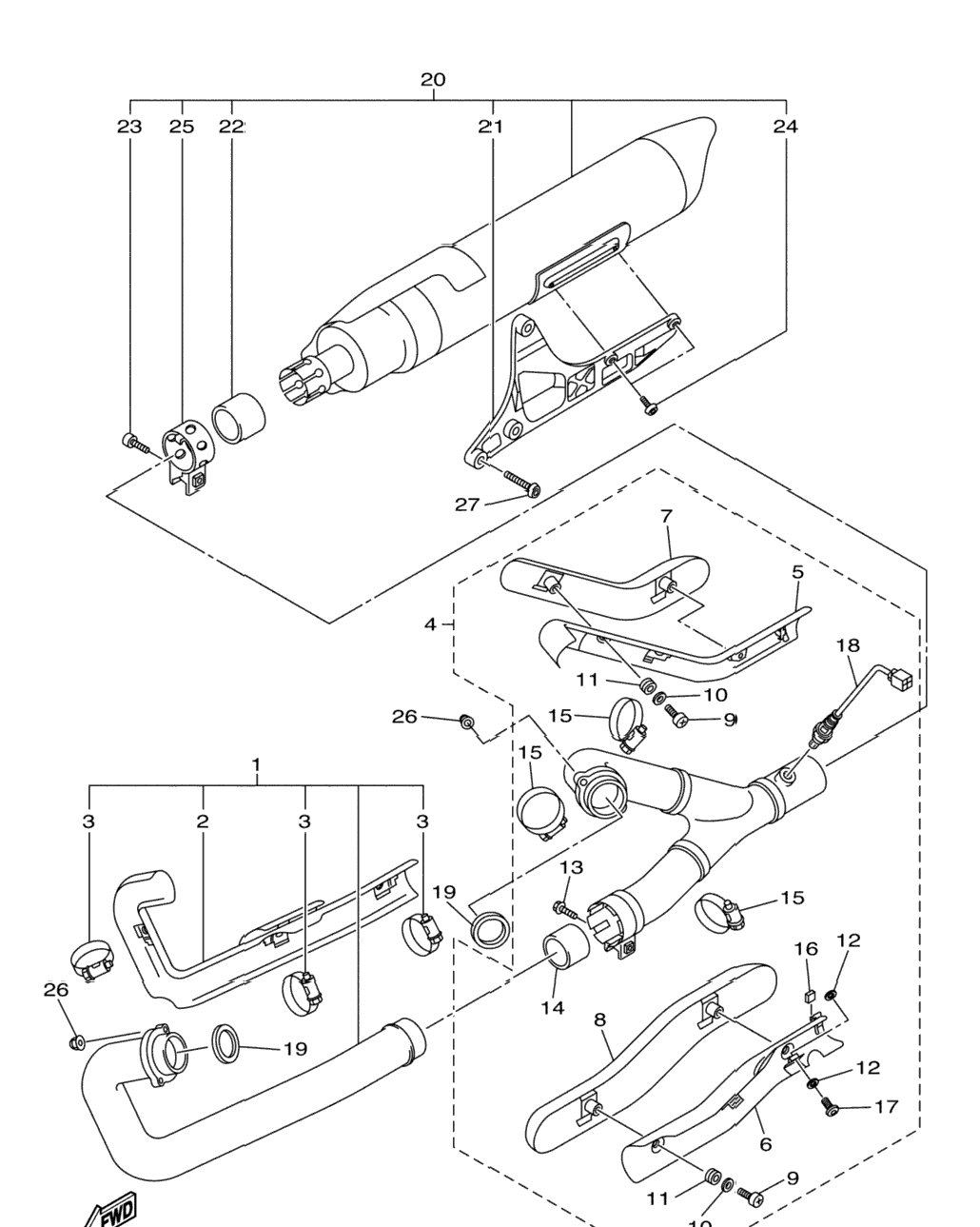

| 1 | 3D8-14610-20-00 | Exhaust Pipe Assy 1 | 1 шт. | — | |
|
| 2 | 3D8-14718-10-00 | . .Protector, Muffler 1 | 1 шт. | — | |
|
| 3 | 90450-44001-00 | . .Hose Clamp Assy | 3 шт. | — | |
|
| 4 | 3D8-14620-20-00 | Exhaust Pipe Assy 2 | 1 шт. | — | |
|
| 5 | 3D8-14728-10-00 | . .Protector, Muffler 2 | 1 шт. | — | |
|
| 6 | 3D8-14738-10-00 | . .Protector, Muffler 3 | 1 шт. | — | |
|
| 7 | 3D8-14748-10-00 | . .Protector, Muffler 4 | 1 шт. | — | |
|
| 8 | 3D8-14628-10-00 | . .Protector, Exhaust Pipe | 1 шт. | — | |
|
| 9 | 98980-06012-00 | . Screw, Bind | 4 шт. | — | |
|
| 10 | 90201-064K6-00 | . Washer, Plate | 4 шт. | — | |
|
| 11 | 90480-17005-00 | . .Grommet | 4 шт. | — | |
|
| 12 | 90201-05015-00 | . Washer, Plate | 4 шт. | — | |
|
| 13 | 91314-08035-00 | . .Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 14 | 5PX-14755-00-00 | . .Gasket, Silencer | 1 шт. | — | |
|
| 15 | 90450-44001-00 | . .Hose Clamp Assy | 3 шт. | — | |
|
| 16 | 3MA-24181-00-00 | . Damper, Locating 1 | 1 шт. | — | |
|
| 17 | 98980-06016-00 | . Screw, Bind | 2 шт. | — | |
|
| 18 | 5D1-8592A-00-00 | . .Sensor, Oxygen | 1 шт. | — | |
|
| 19 | 3EG-14613-00-00 | Gasket, Exhaust Pipe | 2 шт. | — | |
|
| 20 | 3D8-14710-20-00 | Muffler Assy 1 | 1 шт. | — | |
|
| 21 | 3D8-14772-00-00 | . .Stay, Muffler 2 | 1 шт. | — | |
|
| 22 | 5VY-14714-00-00 | . Gasket, Muffler | 1 шт. | — | |
|
| 23 | 91314-08035-00 | . .Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 24 | 90111-10006-00 | . Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 25 | 3D8-14715-00-00 | . .Band, Muffler | 1 шт. | — | |
|
| 26 | 90176-08006-00 | Nut, Crown | 4 шт. | — | |
|
| 27 | 90111-10032-00 | Bolt, Hex. Socket Button | 3 шт. | — | |
|
