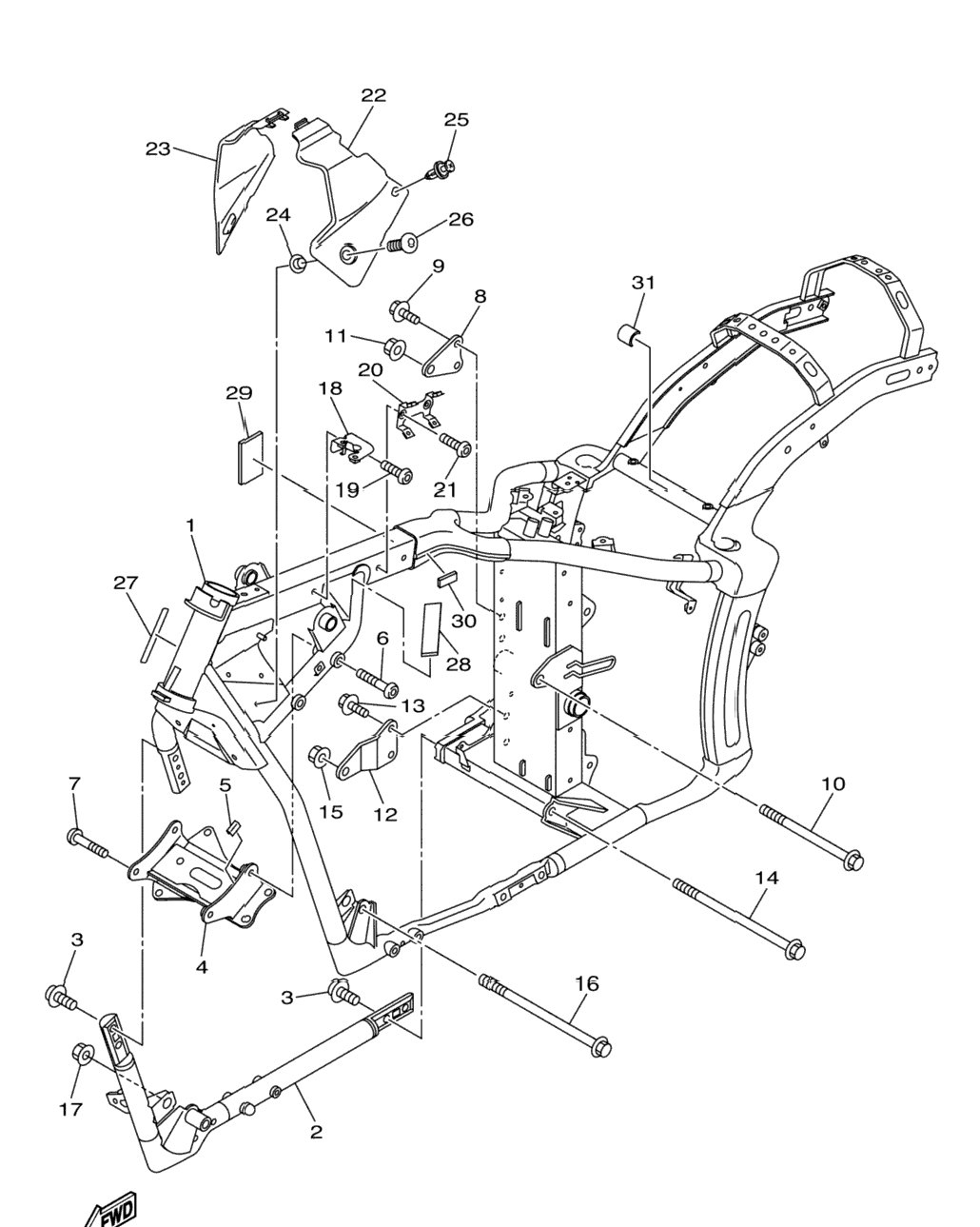

| 1 | 3D8-21110-40-00 | Frame Comp | 1 шт. | — | |
|
| 2 | 3D8-21150-11-00 | Down Tube Comp.2 | 1 шт. | — | |
|
| 3 | 90110-10016-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 4 | 3D8-21317-10-00 | Stay, Engine 3 | 1 шт. | — | |
|
| 5 | 3MA-27491-00-00 | Protector | 1 шт. | — | |
|
| 6 | 90111-10028-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 7 | 90111-10029-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 8 | 3D8-21314-00-00 | Stay, Engine 5 | 1 шт. | — | |
|
| 9 | 90105-10195-00 | Bolt, Flange | 2 шт. | — | |
|
| 10 | 90105-12043-00 | Bolt, Flange | 1 шт. | — | |
|
| 11 | 90185-12002-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 12 | 3D8-21316-00-00 | Stay, Engine 2 | 1 шт. | — | |
|
| 13 | 90105-10195-00 | Bolt, Flange | 2 шт. | — | |
|
| 14 | 90105-12044-00 | Bolt, Flange | 1 шт. | — | |
|
| 15 | 90185-12002-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 16 | 90105-12045-00 | Bolt, Flange | 1 шт. | — | |
|
| 17 | 90185-12002-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 18 | 3D8-2119W-10-00 | Brkt., Lh | 1 шт. | — | |
|
| 19 | 92012-06012-00 | Bolt, Button Head | 1 шт. | — | |
|
| 20 | 3D8-21359-01-00 | Bracket, Coil | 1 шт. | — | |
|
| 21 | 91312-06014-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 22 | 3D8-2171E-01-00 | Cover, Side 5 | 1 шт. | — | |
|
| 23 | 3D8-2171X-01-00 | Cover, Side 6 | 1 шт. | — | |
|
| 24 | 90387-06071-00 | Collar | 2 шт. | — | |
|
| 25 | 90269-07076-00 | Rivet | 2 шт. | — | |
|
| 26 | 90111-06061-00 | Bolt,H Ex. Socket Button | 2 шт. | — | |
|
| 27 | 3D8-2117G-00-00 | Protector | 0 шт. | — | |
|
| 28 | 4XY-2834E-00-00 | Damper 3 | 1 шт. | — | |
|
| 29 | 3D8-2113B-00-00 | Damper | 0 шт. | — | |
|
| 30 | 5H0-8235Y-M0-00 | Damper | 1 шт. | — | |
|
| 31 | 3MA-27491-00-00 | Protector | 1 шт. | — | |
|
