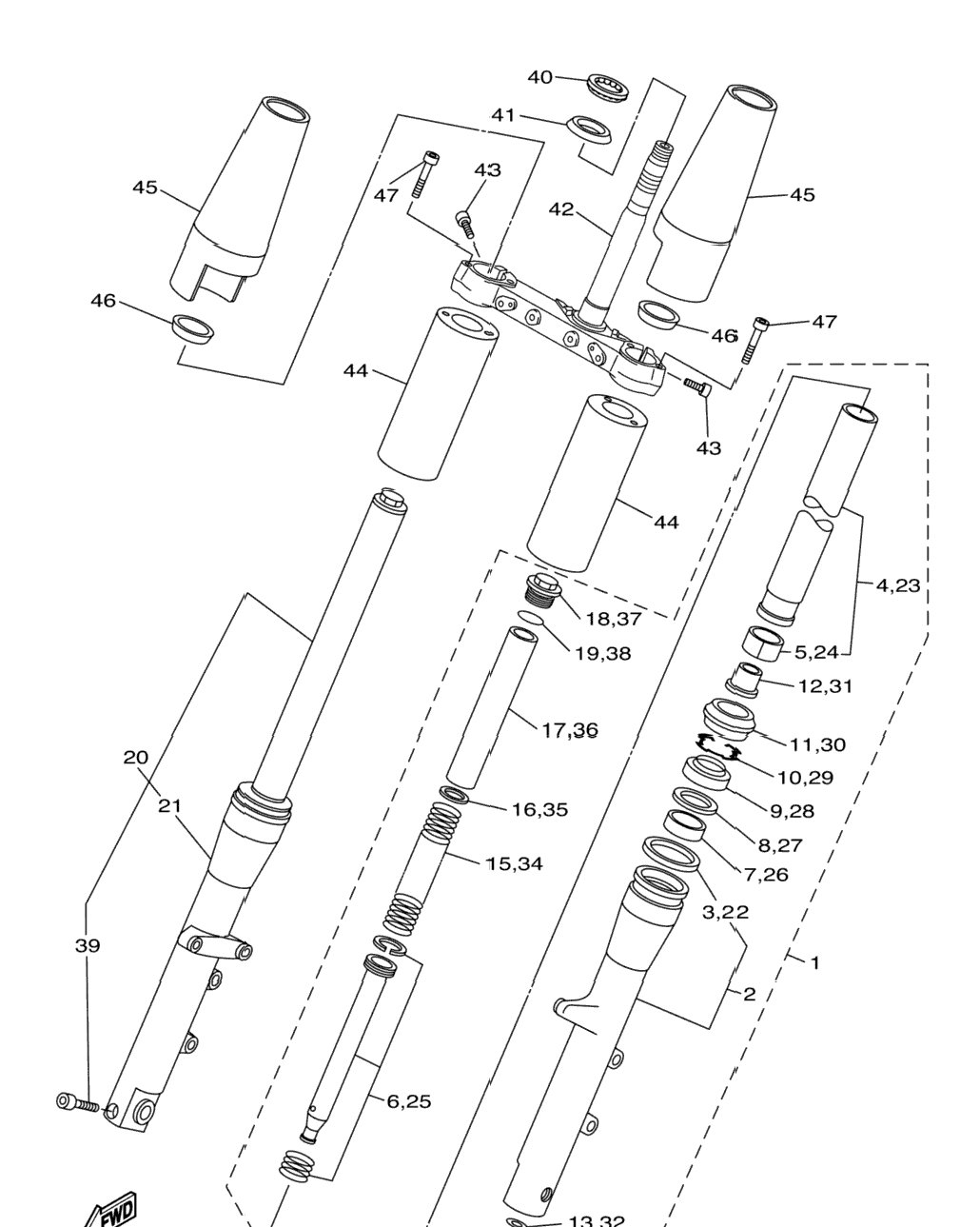

| 1 | 3D8-23102-20-00 | Front Fork Assy (L.H) | 1 шт. | — | |
|
| 2 | 5KS-23126-10-00 | . .Tube, Outer (L.H) | 1 шт. | — | |
|
| 3 | 5BN-23193-00-00 | . . ..Guide, Boot | 1 шт. | — | |
|
| 4 | 3D8-23110-00-00 | . . Inner Tube Comp. 1 | 1 шт. | — | |
|
| 5 | 5BN-23171-00-00 | . . ..Piston, Front Fork | 1 шт. | — | |
|
| 6 | 3D8-23170-10-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 7 | 4FM-23125-40-00 | . .Metal, Slide 1 | 1 шт. | — | |
|
| 8 | 36Y-23146-10-00 | . .Washer, Oil Seal | 1 шт. | — | |
|
| 9 | 4EB-23145-01-00 | . Oil Seal INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 10 | 26H-23156-00-00 | . .Ring, Snap | 1 шт. | — | |
|
| 11 | 4EB-23144-00-00 | . Seal, Dust INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 12 | 4YR-23173-00-00 | . .Spindle, Taper (KYB) | 1 шт. | — | |
|
| 13 | 509-23158-L0-00 | . .Gasket (KYB) | 1 шт. | — | |
|
| 14 | 278-23181-50-00 | . .Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 15 | 3D8-23141-00-00 | . .Spring, Front Fork | 1 шт. | — | |
|
| 16 | 4DW-23149-40-00 | . .Washer, Spring Upper | 1 шт. | — | |
|
| 17 | 5EL-23118-00-00 | . .Spacer | 1 шт. | — | |
|
| 18 | 1D0-23111-00-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 19 | 43F-23188-10-00 | . .O-Ring | 1 шт. | — | |
|
| 20 | 3D8-23103-20-00 | Front Fork Assy (R.H) | 1 шт. | — | |
|
| 21 | 5KS-23136-10-00 | . .Tube, Outer 2 | 1 шт. | — | |
|
| 22 | 5BN-23193-00-00 | . . ..Guide, Boot | 1 шт. | — | |
|
| 23 | 3D8-23110-00-00 | . . Inner Tube Comp. 1 | 1 шт. | — | |
|
| 24 | 5BN-23171-00-00 | . . ..Piston, Front Fork | 1 шт. | — | |
|
| 25 | 3D8-23170-10-00 | . .Cylinder Comp., Front Fork | 1 шт. | — | |
|
| 26 | 4FM-23125-40-00 | . .Metal, Slide 1 | 1 шт. | — | |
|
| 27 | 36Y-23146-10-00 | . .Washer, Oil Seal | 1 шт. | — | |
|
| 28 | 4EB-23145-01-00 | . Oil Seal INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 29 | 26H-23156-00-00 | . .Ring, Snap | 1 шт. | — | |
|
| 30 | 4EB-23144-00-00 | . Seal, Dust INCL. IN FORK SEAL KIT | 1 шт. | — | |
|
| 31 | 4YR-23173-00-00 | . .Spindle, Taper (KYB) | 1 шт. | — | |
|
| 32 | 509-23158-L0-00 | . .Gasket (KYB) | 1 шт. | — | |
|
| 33 | 278-23181-50-00 | . .Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 34 | 3D8-23141-00-00 | . .Spring, Front Fork | 1 шт. | — | |
|
| 35 | 4DW-23149-40-00 | . .Washer, Spring Upper | 1 шт. | — | |
|
| 36 | 5EL-23118-00-00 | . .Spacer | 1 шт. | — | |
|
| 37 | 1D0-23111-00-00 | . .Bolt, Cap | 1 шт. | — | |
|
| 38 | 43F-23188-10-00 | . .O-Ring | 1 шт. | — | |
|
| 39 | 91314-08040-00 | . .Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 40 | 93399-99932-00 | Bearing | 1 шт. | — | |
|
| 41 | 3FV-23462-00-00 | Seal, Steering | 1 шт. | — | |
|
| 42 | 5S7-23340-01-00 | Under Bracket Comp | 1 шт. | — | |
|
| 43 | 91314-10020-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 44 | 3D8-23123-00-00 | Cover, Under 1 | 2 шт. | — | |
|
| 45 | 3D8-23121-00-00 | Cover, Upper 1 | 2 шт. | — | |
|
| 46 | 3D8-23163-00-00 | Gasket | 2 шт. | — | |
|
| 47 | 3D8-23394-20-00 | Bolt, Special | 4 шт. | — | |
|
| 48 | 4EB-W003B-00-00 | Fork Seal Kit NOT SHOWN | 1 шт. | — | |
|
