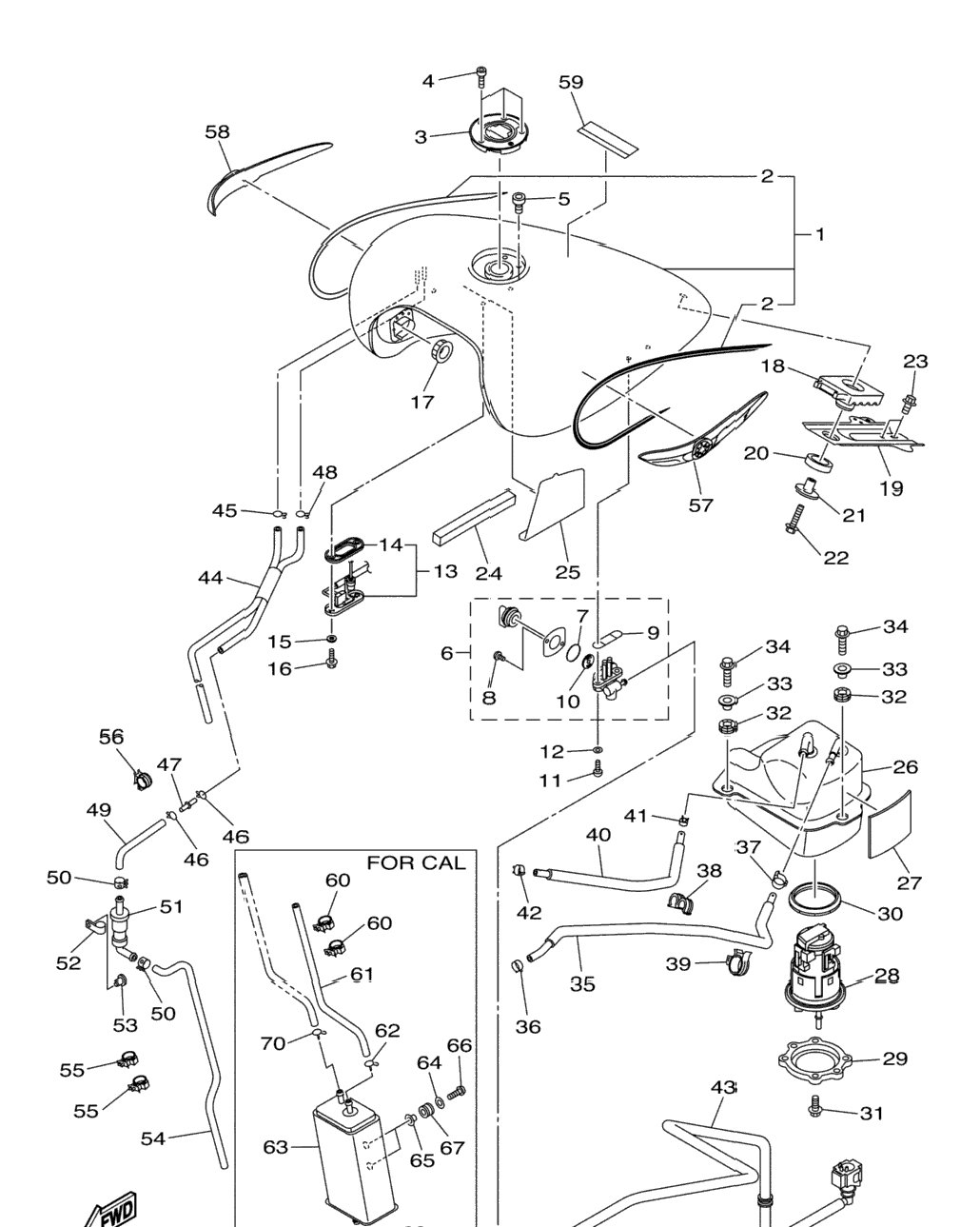

| 1 | 3D8-Y2410-00-W1 | Fuel Tank Comp DNBME | 1 шт. | — | |
|
| 2 | 5S6-24240-20-00 | . .Graphic Set | 1 шт. | — | |
|
| 3 | 3D8-24602-10-00 | Cap Assy | 1 шт. | — | |
|
| 4 | 90110-05112-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 5 | 91312-05010-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 6 | 4JT-24500-20-00 | Fuel Cock Assy 1 | 1 шт. | — | |
|
| 7 | 3AJ-24534-10-00 | . .Seal, Cock | 1 шт. | — | |
|
| 8 | 98507-03008-00 | . .Screw, Pan Head | 2 шт. | — | |
|
| 9 | 4X8-24512-10-00 | . .Gasket | 1 шт. | — | |
|
| 10 | 3AC-24523-00-00 | . .Valve Packing | 1 шт. | — | |
|
| 11 | 90149-06108-00 | Screw | 2 шт. | — | |
|
| 12 | 90202-05193-00 | Washer, Plate | 2 шт. | — | |
|
| 13 | 3D8-85752-10-00 | Sender Unit Assy, Fuel Meter | 1 шт. | — | |
|
| 14 | 3D8-85753-00-00 | . .Gasket, Sender Unit | 1 шт. | — | |
|
| 15 | 90202-05193-00 | Washer, Plate | 2 шт. | — | |
|
| 16 | 95812-06016-00 | Bolt, Flange | 2 шт. | — | |
|
| 17 | 2YK-24181-10-00 | Damper, Locating 1 | 2 шт. | — | |
|
| 18 | 1D7-24182-00-00 | Damper, Locating 2 | 1 шт. | — | |
|
| 19 | 3D8-2413Y-00-00 | Bracket, Tank Fitting | 1 шт. | — | |
|
| 20 | 4TR-24183-00-00 | Damper, Locating 3 | 1 шт. | — | |
|
| 21 | 90387-06177-00 | Collar | 1 шт. | — | |
|
| 22 | 95812-06030-00 | Bolt, Flange | 1 шт. | — | |
|
| 23 | 95812-08012-00 | Bolt, Flange | 2 шт. | — | |
|
| 24 | 3XV-28217-00-00 | Damper 1 | 1 шт. | — | |
|
| 25 | 3D8-2476V-00-00 | Protector, 2 | 1 шт. | — | |
|
| 26 | 3D8-244A0-00-00 | Pump Case Comp | 1 шт. | — | |
|
| 27 | 3D8-2414J-00-00 | Damper, Plate 2 | 1 шт. | — | |
|
| 28 | 3D8-13907-01-00 | Fuel Pump Comp | 1 шт. | — | |
|
| 29 | 3D8-24491-10-00 | Bracket, Fuel Pump | 1 шт. | — | |
|
| 30 | 19B-24486-01-00 | O-Ring | 1 шт. | — | |
|
| 31 | 90110-05028-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 32 | 3D8-24185-00-00 | Damper, Locating 5 | 3 шт. | — | |
|
| 33 | 90387-062U9-00 | Collar | 3 шт. | — | |
|
| 34 | 95812-06025-00 | Bolt, Flange | 0 шт. | — | |
|
| 35 | 3D8-24311-11-00 | Pipe, Fuel 1 | 1 шт. | — | |
|
| 36 | 90467-12004-00 | Clip | 1 шт. | — | |
|
| 37 | 90467-130A1-00 | Clip | 1 шт. | — | |
|
| 38 | 90464-19001-00 | Clamp | 1 шт. | — | |
|
| 39 | 90464-20191-00 | Clamp | 1 шт. | — | |
|
| 40 | 3D8-24312-11-00 | Pipe 2 | 1 шт. | — | |
|
| 41 | 90467-160A2-00 | Clip | 1 шт. | — | |
|
| 42 | 5PX-2411M-00-00 | Clip | 1 шт. | — | |
|
| 43 | 3D8-13971-00-00 | Pipe, Fuel 1 | 1 шт. | — | |
|
| 44 | 3D8-2318J-01-00 | Hose Assy | 1 шт. | — | |
|
| 45 | 90467-09103-00 | .Clip | 1 шт. | — | |
|
| 46 | 90467-09103-00 | .Clip | 2 шт. | — | |
|
| 47 | 4XY-14568-00-00 | Joint | 1 шт. | — | |
|
| 48 | 90467-09103-00 | .Clip | 1 шт. | — | |
|
| 49 | 3D8-24324-00-00 | Pipe 13 | 1 шт. | — | |
|
| 50 | 90467-09001-00 | Clip | 2 шт. | — | |
|
| 51 | 5RB-24180-00-00 | Roll Over Valve Assy | 1 шт. | — | |
|
| 52 | 90464-15014-00 | Clamp | 1 шт. | — | |
|
| 53 | 90269-05005-00 | Rivet | 1 шт. | — | |
|
| 54 | 90445-10040-00 | Hose | 1 шт. | — | |
|
| 55 | 90464-20191-00 | Clamp | 2 шт. | — | |
|
| 56 | 90464-15192-00 | Clamp | 1 шт. | — | |
|
| 57 | 3D8-2416B-00-00 | Emblem | 1 шт. | — | |
|
| 58 | 3D8-2417B-00-00 | Emblem | 1 шт. | — | |
|
| 59 | 1TP-2118K-A1-00 | Label, Caution | 1 шт. | — | |
|
| 60 | 90464-25217-00 | Clamp FOR CALIFORNIA | 0 шт. | — | |
|
| 61 | 3D8-2486A-01-00 | Pipe 1 FOR CALIFORNIA | 0 шт. | — | |
|
| 62 | 90467-09103-00 | .Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 63 | 5PX-24170-00-00 | Canister Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 64 | 90201-06023-00 | Washer, Plate FOR CALIFORNIA | 0 шт. | — | |
|
| 65 | 90387-062L2-00 | Collar FOR CALIFORNIA | 0 шт. | — | |
|
| 66 | 90111-06067-00 | Bolt, Hex. Socket Button FOR CALIFORNIA | 0 шт. | — | |
|
| 67 | 90480-13163-00 | Grommet FOR CALIFORNIA | 0 шт. | — | |
|
| 68 | 3D8-24325-00-00 | Pipe 14 FOR CALIFORNIA | 0 шт. | — | |
|
| 69 | 90467-10041-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 70 | 90467-09103-00 | .Clip FOR CALIFORNIA | 0 шт. | — | |
|
