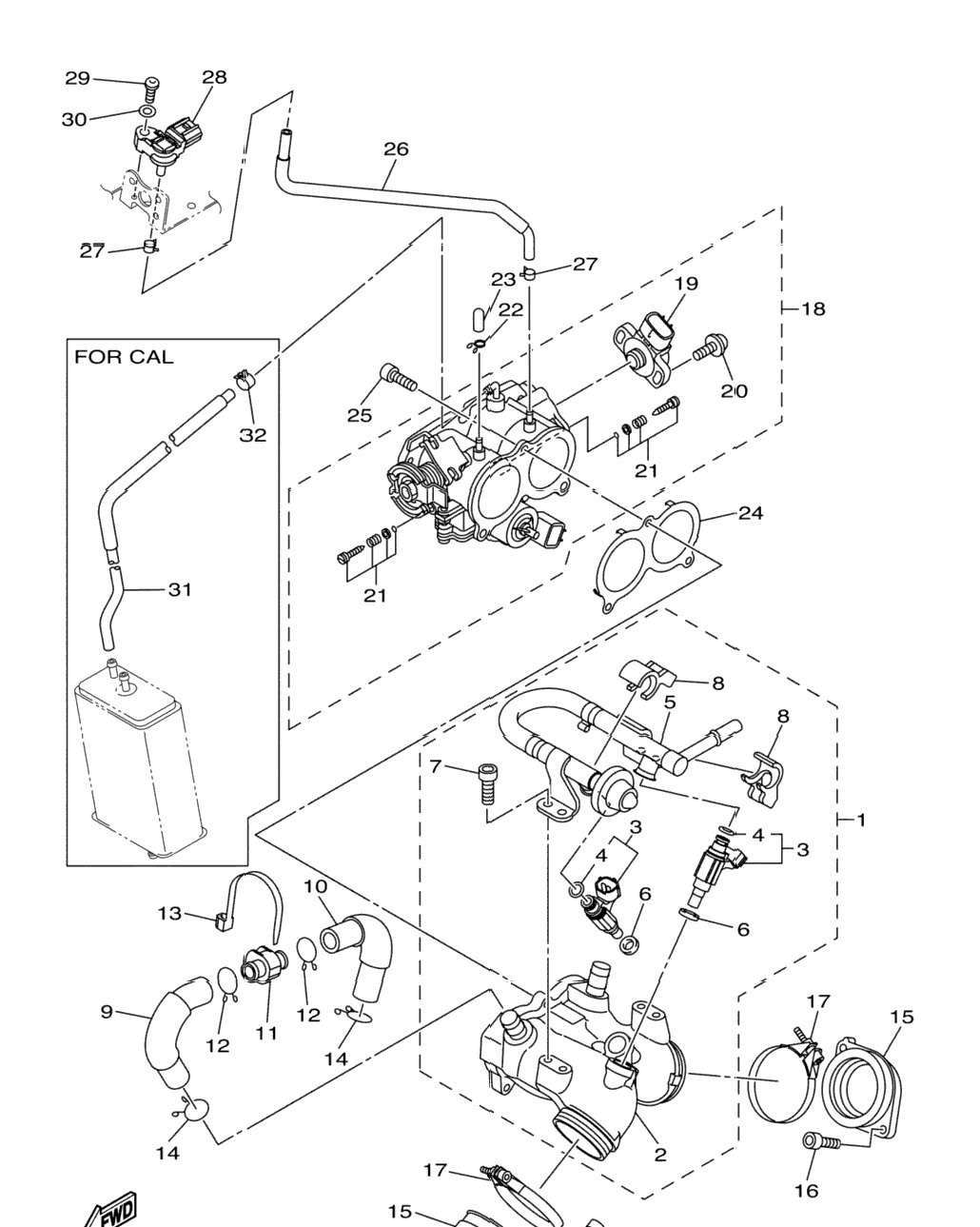

| 1 | 3D8-13590-40-00 | Carburetor Joint Assy | 1 шт. | — | |
|
| 2 | 3D8-13640-00-00 | . .Manifold | 1 шт. | — | |
|
| 3 | 3D8-13761-00-00 | . .Injector | 2 шт. | — | |
|
| 4 | 5FL-14147-00-00 | . . .O-Ring | 1 шт. | — | |
|
| 5 | 3D8-13930-10-00 | . .Pipe Inlet Assembly | 1 шт. | — | |
|
| 6 | 8FP-13556-00-00 | . .Rubber, Injector | 2 шт. | — | |
|
| 7 | 91312-06014-00 | . Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 8 | 3D8-14261-00-00 | . .Holder | 2 шт. | — | |
|
| 9 | 3D8-1441J-01-00 | Pipe, Silencer | 1 шт. | — | |
|
| 10 | 3D8-1442J-01-00 | Pipe, Silencer 2 | 1 шт. | — | |
|
| 11 | 3D8-14862-00-00 | Plug | 1 шт. | — | |
|
| 12 | 90467-18196-00 | Clip | 2 шт. | — | |
|
| 13 | 90464-15195-00 | Clamp | 1 шт. | — | |
|
| 14 | 90467-18196-00 | Clip | 2 шт. | — | |
|
| 15 | 3D8-13586-00-00 | Joint, Carburetor 1 | 2 шт. | — | |
|
| 16 | 91312-06020-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 17 | 90450-59008-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 18 | 3D8-13750-50-00 | Throttle Body Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 19 | 3D8-13750-40-00 | Throttle Body Assy U49 | 1 шт. | — | |
|
| 20 | 8GL-85885-00-00 | . .Throttle Sensor Assy | 1 шт. | — | |
|
| 21 | 4KM-24453-00-00 | . .Screw | 2 шт. | — | |
|
| 22 | 3D8-14104-00-00 | . .Air Screw Set | 2 шт. | — | |
|
| 23 | 8A7-14139-00-00 | .Clip, Pipe | 1 шт. | — | |
|
| 24 | 895-14169-00-00 | .Cap | 1 шт. | — | |
|
| 25 | 3D8-14467-00-00 | Seal | 1 шт. | — | |
|
| 26 | 91312-06020-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 27 | 3D8-13892-10-00 | Hose, Air 2 | 1 шт. | — | |
|
| 28 | 90467-07093-00 | .Clip | 2 шт. | — | |
|
| 29 | 5S7-82380-00-00 | .Sensor, Pressure | 1 шт. | — | |
|
| 30 | 97002-05020-00 | Bolt | 1 шт. | — | |
|
| 31 | 92902-05600-00 | Washer, Plate | 1 шт. | — | |
|
| 32 | 3D8-14148-10-00 | Pipe FOR CALIFORNIA | 0 шт. | — | |
|
| 33 | 90467-09037-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
