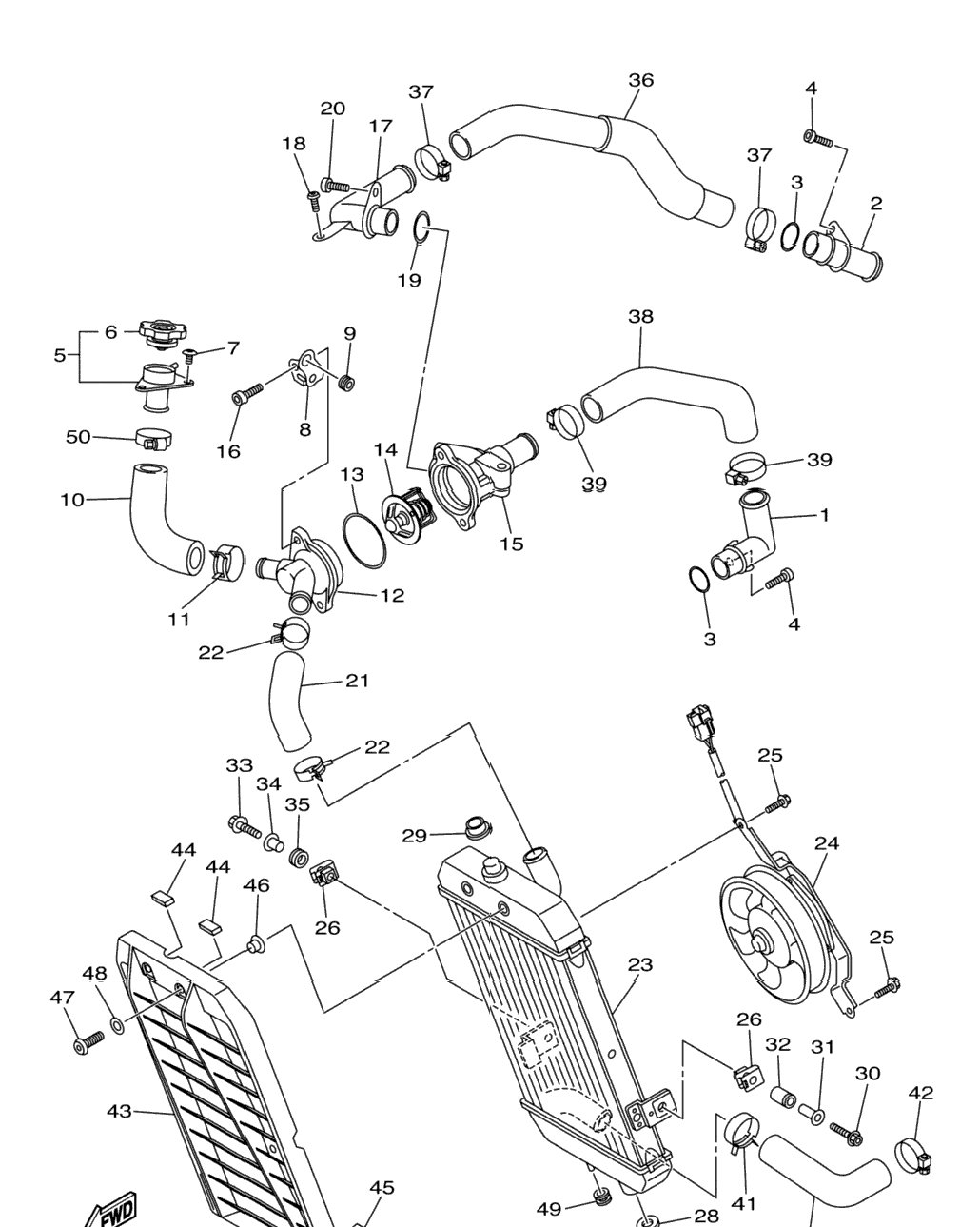

| 1 | 3D8-12481-00-00 | Pipe 1 | 1 шт. | — | |
|
| 2 | 3D8-12482-00-00 | Pipe 2 | 1 шт. | — | |
|
| 3 | 93210-18417-00 | O-Ring | 2 шт. | — | |
|
| 4 | 91312-06014-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 5 | 4NK-12590-00-00 | Conduction Assy | 1 шт. | — | |
|
| 6 | 3XP-12462-00-00 | . .Cap, Radiator | 1 шт. | — | |
|
| 7 | 90111-06083-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 8 | 3D8-1244E-00-00 | Bracket 1 | 1 шт. | — | |
|
| 9 | 90480-10517-00 | Grommet | 1 шт. | — | |
|
| 10 | 3D8-12589-10-00 | Hose 6 | 1 шт. | — | |
|
| 11 | 90467-230A1-00 | Clip | 1 шт. | — | |
|
| 12 | 3D8-12413-10-00 | Cover, Thermostat | 1 шт. | — | |
|
| 13 | 93210-49046-00 | .O-Ring | 1 шт. | — | |
|
| 14 | 1AE-12410-00-00 | Thermostat Assy | 1 шт. | — | |
|
| 15 | 3D8-12417-10-00 | Housing, Thermostat | 1 шт. | — | |
|
| 16 | 91312-06020-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 17 | 3D8-12476-00-00 | Pipe 6 | 1 шт. | — | |
|
| 18 | 92012-06010-00 | Bolt, Button Head | 1 шт. | — | |
|
| 19 | 93210-18417-00 | O-Ring | 1 шт. | — | |
|
| 20 | 90110-06187-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 21 | 3D8-12579-00-00 | Hose 4 | 1 шт. | — | |
|
| 22 | 90467-280A1-00 | Clip | 2 шт. | — | |
|
| 23 | 3D8-12461-10-00 | Radiator Comp | 1 шт. | — | |
|
| 24 | 3D8-12405-10-00 | Blower Assy | 1 шт. | — | |
|
| 25 | 3D8-12675-00-00 | Bolt, Blower Holding | 3 шт. | — | |
|
| 26 | 3D8-12535-00-00 | Plate | 2 шт. | — | |
|
| 27 | 1AA-12561-00-00 | Plug, Drain Cock | 1 шт. | — | |
|
| 28 | 1AA-12435-00-00 | Gasket | 1 шт. | — | |
|
| 29 | 90480-20003-00 | Grommet | 1 шт. | — | |
|
| 30 | 90110-06261-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 31 | 90387-0614X-00 | Collar | 1 шт. | — | |
|
| 32 | 4XY-12465-00-00 | Damper, Radiator | 1 шт. | — | |
|
| 33 | 90110-06263-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 34 | 90387-065G0-00 | Collar | 1 шт. | — | |
|
| 35 | 90480-19283-00 | Grommet | 1 шт. | — | |
|
| 36 | 3D8-12576-00-00 | Hose 1 | 1 шт. | — | |
|
| 37 | 90450-28014-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 38 | 3D8-12578-00-00 | Hose 3 | 1 шт. | — | |
|
| 39 | 90450-28014-00 | Hose Clamp Assy | 2 шт. | — | |
|
| 40 | 3D8-12588-00-00 | Hose 5 | 1 шт. | — | |
|
| 41 | 90467-280A1-00 | Clip | 1 шт. | — | |
|
| 42 | 90450-35001-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 43 | 3D8-12467-00-00 | Cover, Radiator | 1 шт. | — | |
|
| 44 | 3D8-21541-00-00 | Damper 1 | 2 шт. | — | |
|
| 45 | 3D8-12465-00-00 | Damper, Radiator | 2 шт. | — | |
|
| 46 | 90387-08076-00 | Collar | 2 шт. | — | |
|
| 47 | 90111-06041-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 48 | 90201-06096-00 | Washer, Plate | 2 шт. | — | |
|
| 49 | 90480-08003-00 | Grommet | 1 шт. | — | |
|
| 50 | 90450-28014-00 | Hose Clamp Assy | 1 шт. | — | |
|
