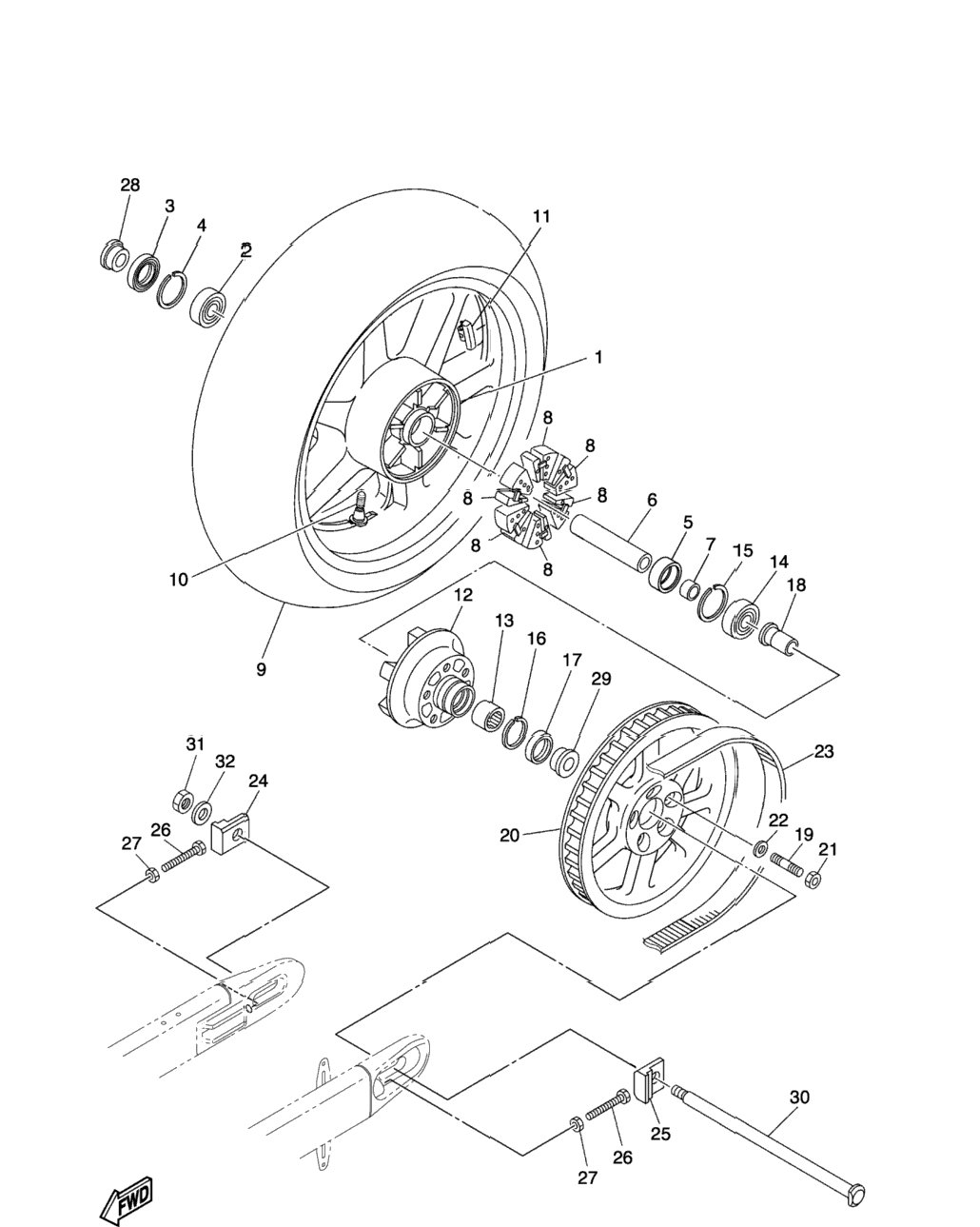

| 1 | 3D8-25338-00-MA | Cast Wheel, Rear TGM | 1 шт. | — | |
|
| 2 | 93306-30437-00 | Bearing | 1 шт. | — | |
|
| 3 | 93106-28001-00 | Oil Seal | 1 шт. | — | |
|
| 4 | 99009-52500-00 | Circlip | 1 шт. | — | |
|
| 5 | 93320-32811-00 | Bearing | 1 шт. | — | |
|
| 6 | 3D8-25317-00-00 | Spacer, Bearing | 1 шт. | — | |
|
| 7 | 1D7-25383-00-00 | Collar, Wheel | 1 шт. | — | |
|
| 8 | 4WM-25364-00-00 | Damper | 6 шт. | — | |
|
| 9 | 94117-16002-00 | Tire (170/70B16m/C 75H Exedr) UR BRIDGESTONE | 0 шт. | — | |
|
| 10 | 94117-16001-00 | Tire (170/70B16m/C 75H K555) UR DUNLOP | 1 шт. | — | |
|
| 11 | 93900-00030-00 | Valve, Rim (Tr412) TAIHEIYO | 1 шт. | — | |
|
| 12 | 5MT-25398-10-00 | Balancer, Wheel (20G) UN | 1 шт. | — | |
|
| 13 | 5MT-25398-20-00 | Balancer, Wheel (30G) UN | 1 шт. | — | |
|
| 14 | 5MT-25398-00-00 | Balancer, Wheel (10G) UN | 1 шт. | — | |
|
| 15 | 3D8-25366-00-00 | Clutch, Hub | 1 шт. | — | |
|
| 16 | 93311-32698-00 | Bearing | 1 шт. | — | |
|
| 17 | 93306-30437-00 | Bearing | 1 шт. | — | |
|
| 18 | 99009-52500-00 | Circlip | 1 шт. | — | |
|
| 19 | 93450-35163-00 | Circlip | 1 шт. | — | |
|
| 20 | 93106-30004-00 | Oil Seal | 1 шт. | — | |
|
| 21 | 3D8-25376-00-00 | Collar, Wheel | 1 шт. | — | |
|
| 22 | 95612-12630-00 | Bolt, Stud | 5 шт. | — | |
|
| 23 | 3D8-25470-01-00 | Sprocket, Driven (70T) | 1 шт. | — | |
|
| 24 | 95614-12100-00 | Nut, U | 5 шт. | — | |
|
| 25 | 90201-12045-00 | Washer, Plate | 5 шт. | — | |
|
| 26 | 3D8-46241-00-00 | Belt | 1 шт. | — | |
|
| 27 | 5PX-25388-00-00 | Puller, Chain 1 | 1 шт. | — | |
|
| 28 | 5PX-25389-00-00 | Puller, Chain 2 | 1 шт. | — | |
|
| 29 | 90101-08013-00 | Bolt | 2 шт. | — | |
|
| 30 | 95302-08600-00 | Nut, Hexagon | 2 шт. | — | |
|
| 31 | 90387-20033-00 | Collar | 1 шт. | — | |
|
| 32 | 90387-202X9-00 | Collar | 1 шт. | — | |
|
| 33 | 3D8-25381-00-00 | Axle, Wheel | 1 шт. | — | |
|
| 34 | 90185-18009-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 35 | 90201-185R7-00 | Washer, Plate | 1 шт. | — | |
|
