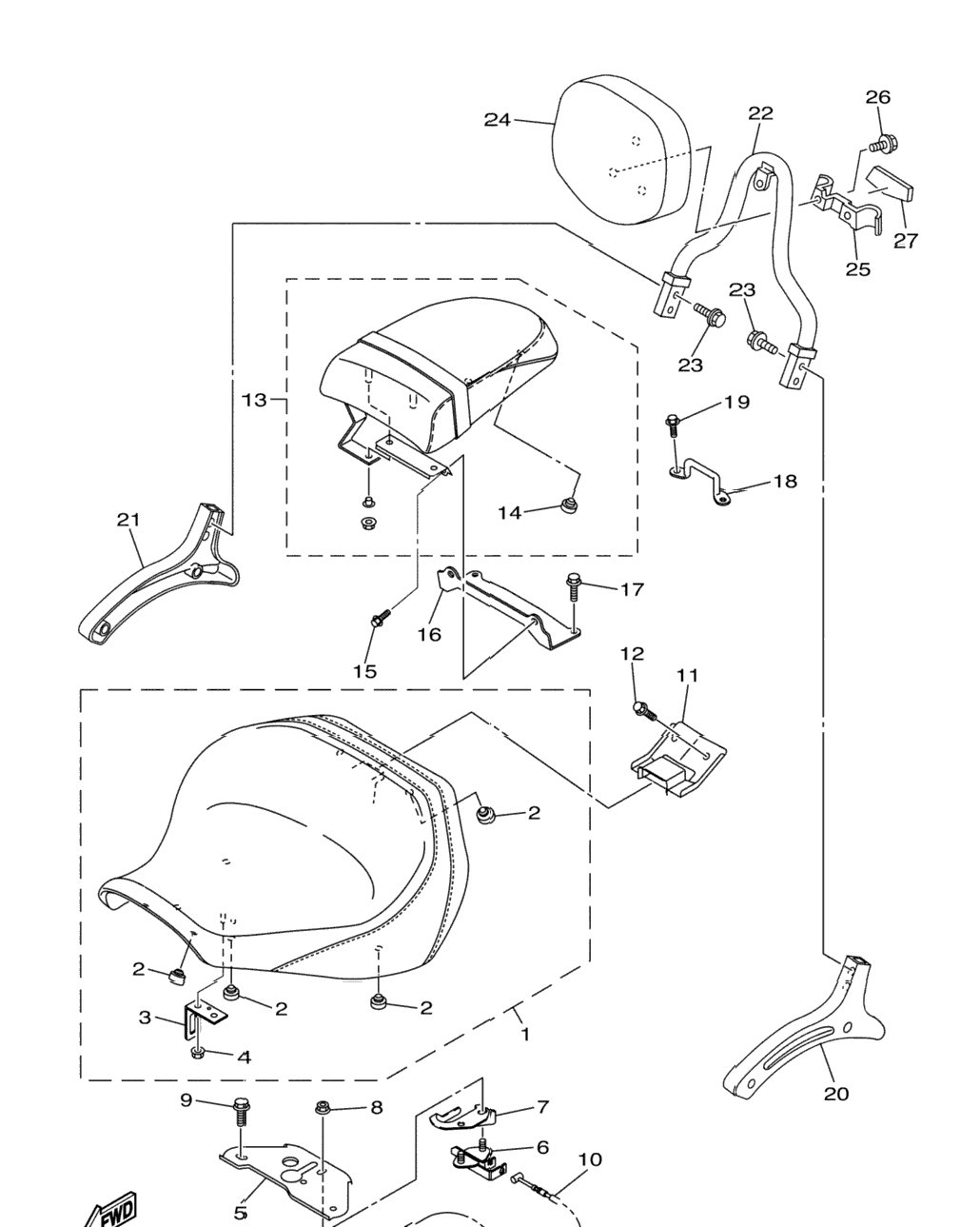

| 1 | 3D8-24710-10-00 | Single Seat Assy | 1 шт. | — | |
|
| 2 | 22W-24741-00-00 | . .Pad, Seat | 8 шт. | — | |
|
| 3 | 4NK-24728-00-00 | . .Bracket, Seat | 1 шт. | — | |
|
| 4 | 95602-06200-00 | . Nut, Self-Locking | 1 шт. | — | |
|
| 5 | 3D8-21341-01-00 | Bracket, Seat 1 | 1 шт. | — | |
|
| 6 | 4BP-24780-00-00 | Seat Lock Assy | 1 шт. | — | |
|
| 7 | 27D-24792-00-00 | Plate | 1 шт. | — | |
|
| 8 | 95702-06500-00 | Nut, Flange | 2 шт. | — | |
|
| 9 | 95822-06014-00 | Bolt, Flange | 2 шт. | — | |
|
| 10 | 5PX-2478E-00-00 | Cable, Seat Lock | 1 шт. | — | |
|
| 11 | 3D8-2475N-00-00 | Bracket | 1 шт. | — | |
|
| 12 | 92012-08012-00 | Bolt, Button Head | 2 шт. | — | |
|
| 13 | 3D8-24750-01-00 | Tandem Seat Assy | 0 шт. | — | |
|
| 14 | 22W-24741-00-00 | . .Pad, Seat | 4 шт. | — | |
|
| 15 | 95022-08012-00 | Bolt, Flange | 2 шт. | — | |
|
| 16 | 1D7-2475H-00-00 | Bracket, Seat Lever 1 | 1 шт. | — | |
|
| 17 | 95022-08012-00 | Bolt, Flange | 2 шт. | — | |
|
| 18 | 3D8-2475R-00-00 | Bracket 6 | 1 шт. | — | |
|
| 19 | 95022-08012-00 | Bolt, Flange | 2 шт. | — | |
|
| 20 | 5S6-2164A-00-00 | Grip 1 | 1 шт. | — | |
|
| 21 | 5S6-2164E-00-00 | Grip 2 | 1 шт. | — | |
|
| 22 | 5S6-2164F-00-00 | Stay 1 | 1 шт. | — | |
|
| 23 | 95024-08012-00 | Bolt, Flg.(Small Head) | 4 шт. | — | |
|
| 24 | 5GA-2840F-20-00 | Back Rest Assy | 0 шт. | — | |
|
| 25 | 5GA-2164G-00-00 | Stay 2 | 1 шт. | — | |
|
| 26 | 95024-06010-00 | .Bolt, Flange (Small Head) | 3 шт. | — | |
|
| 27 | 5GA-24786-01-00 | Emblem | 0 шт. | — | |
|
