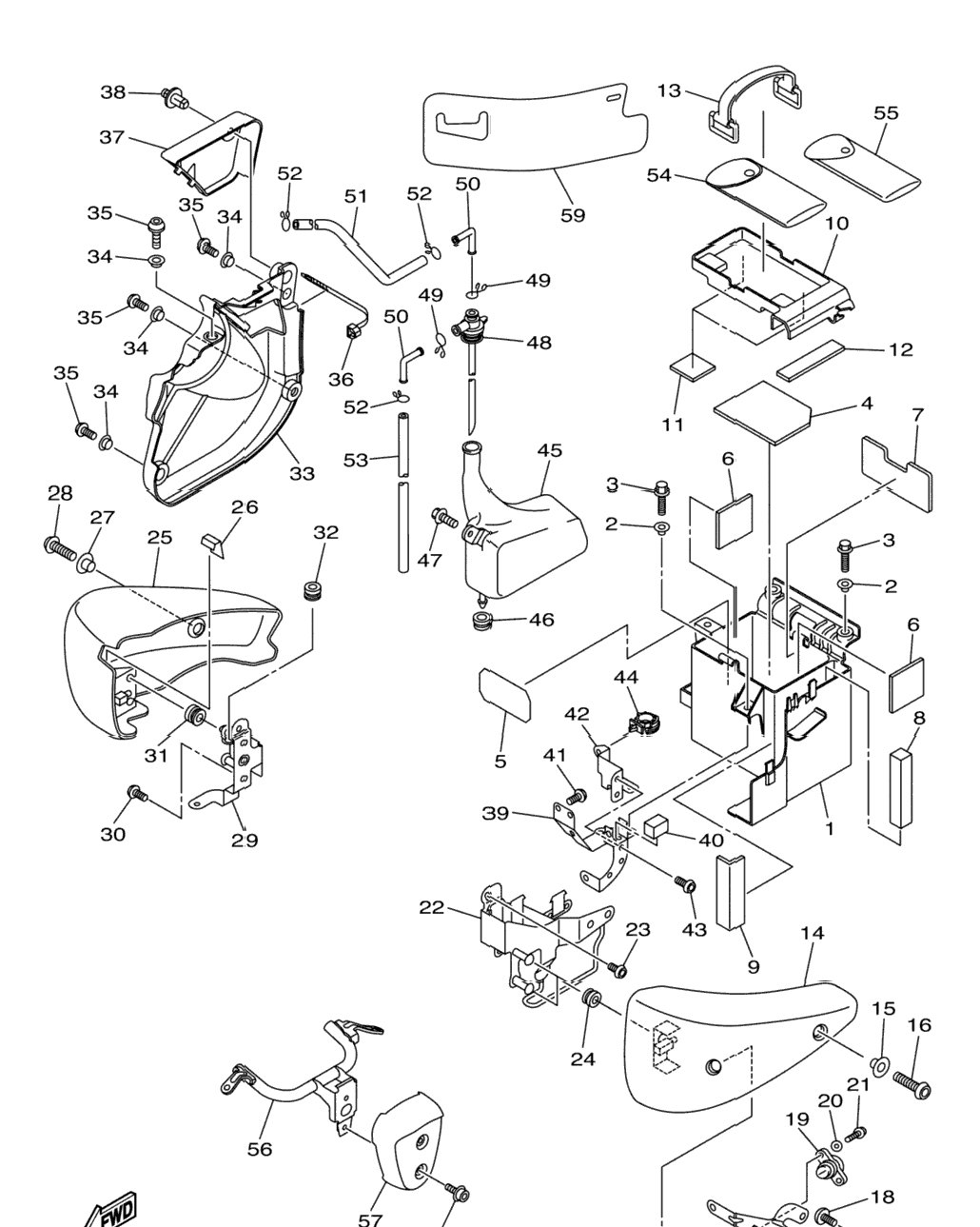

| 1 | 3D8-2177G-02-00 | Box, Battery | 1 шт. | — | |
|
| 2 | 90387-06267-00 | Collar | 4 шт. | — | |
|
| 3 | 95022-06020-00 | .Bolt, Flange | 4 шт. | — | |
|
| 4 | 51Y-82122-00-00 | Seat, Battery | 1 шт. | — | |
|
| 5 | 5PX-21652-00-00 | Protector | 1 шт. | — | |
|
| 6 | 3D8-2174Y-00-00 | Damper | 2 шт. | — | |
|
| 7 | 3D8-2174X-00-00 | Damper | 1 шт. | — | |
|
| 8 | 3D8-21779-00-00 | Damper, Locating 2 | 1 шт. | — | |
|
| 9 | 3D8-2177M-00-00 | Damper, Locating 3 | 1 шт. | — | |
|
| 10 | 3D8-28173-10-00 | Box, Tool | 0 шт. | — | |
|
| 11 | 2GH-24185-00-00 | Damper, Locating 5 | 2 шт. | — | |
|
| 12 | 1AE-2834E-00-00 | Damper 3 | 1 шт. | — | |
|
| 13 | 3L8-82131-01-00 | Band, Battery | 1 шт. | — | |
|
| 14 | 3D8-21711-00-PF | Cover, Side 1 DNBME | 1 шт. | — | |
|
| 15 | 90387-06173-00 | Collar | 1 шт. | — | |
|
| 16 | 90149-06023-00 | Screw | 1 шт. | — | |
|
| 17 | 3D8-2175T-00-00 | Bracket 1 | 1 шт. | — | |
|
| 18 | 97702-50012-00 | Screw, Tapping | 2 шт. | — | |
|
| 19 | 5PX-W2470-00-00 | Rotor Set | 1 шт. | — | |
|
| 20 | 90201-06034-00 | Washer, Plate | 2 шт. | — | |
|
| 21 | 90105-06639-00 | Bolt, Flange | 2 шт. | — | |
|
| 22 | 3D8-2172M-10-00 | Bracket 3 | 1 шт. | — | |
|
| 23 | 92012-06012-00 | Bolt, Button Head | 2 шт. | — | |
|
| 24 | 90480-12550-00 | Grommet | 2 шт. | — | |
|
| 25 | 3D8-21721-00-PF | Cover, Side 2 DNBME | 1 шт. | — | |
|
| 26 | 3MA-27491-00-00 | Protector | 1 шт. | — | |
|
| 27 | 90387-06173-00 | Collar | 1 шт. | — | |
|
| 28 | 90111-06038-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 29 | 3D8-2172N-00-00 | Bracket 4 | 1 шт. | — | |
|
| 30 | 92012-06012-00 | Bolt, Button Head | 2 шт. | — | |
|
| 31 | 90480-12550-00 | Grommet | 2 шт. | — | |
|
| 32 | 90480-18418-00 | Grommet | 2 шт. | — | |
|
| 33 | 3D8-21741-10-00 | Cover, Side 4 | 1 шт. | — | |
|
| 34 | 90387-06184-00 | Collar | 4 шт. | — | |
|
| 35 | 90111-06038-00 | Bolt, Hex. Socket Button | 4 шт. | — | |
|
| 36 | 90464-15195-00 | Clamp | 1 шт. | — | |
|
| 37 | 3D8-2176E-10-00 | Plate | 1 шт. | — | |
|
| 38 | 90269-07077-00 | Rivet | 1 шт. | — | |
|
| 39 | 3D8-2172K-01-00 | Bracket 1 | 1 шт. | — | |
|
| 40 | 3D8-21778-00-00 | Damper, Locating 1 | 1 шт. | — | |
|
| 41 | 92012-06012-00 | Bolt, Button Head | 3 шт. | — | |
|
| 42 | 3D8-2172L-00-00 | Bracket 2 | 1 шт. | — | |
|
| 43 | 92012-06012-00 | Bolt, Button Head | 2 шт. | — | |
|
| 44 | 90464-17008-00 | Clamp | 1 шт. | — | |
|
| 45 | 3D8-21871-00-00 | Tank, Recovery | 1 шт. | — | |
|
| 46 | 90480-13567-00 | Grommet | 2 шт. | — | |
|
| 47 | 90119-06137-00 | Bolt, With Washer | 1 шт. | — | |
|
| 48 | 3D8-21875-00-00 | Cap | 1 шт. | — | |
|
| 49 | 90467-11019-00 | Clip | 2 шт. | — | |
|
| 50 | 26H-21828-00-00 | Elbow | 2 шт. | — | |
|
| 51 | 3D8-21826-00-00 | Pipe, Breather | 1 шт. | — | |
|
| 52 | 90467-08003-00 | Clip | 3 шт. | — | |
|
| 53 | 90445-09097-00 | Hose (L250) | 0 шт. | — | |
|
| 54 | 3D8-28100-10-00 | Tool Kit | 1 шт. | — | |
|
| 55 | 3D8-28110-00-00 | Tool Kit, 2 | 1 шт. | — | |
|
| 56 | 3D8-1541E-00-00 | Stay, Cover | 1 шт. | — | |
|
| 57 | 5EL-14283-00-00 | Cover, Carburetor 1 | 1 шт. | — | |
|
| 58 | 90110-05057-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 59 | 27D-24796-00-00 | Cover | 1 шт. | — | |
|
