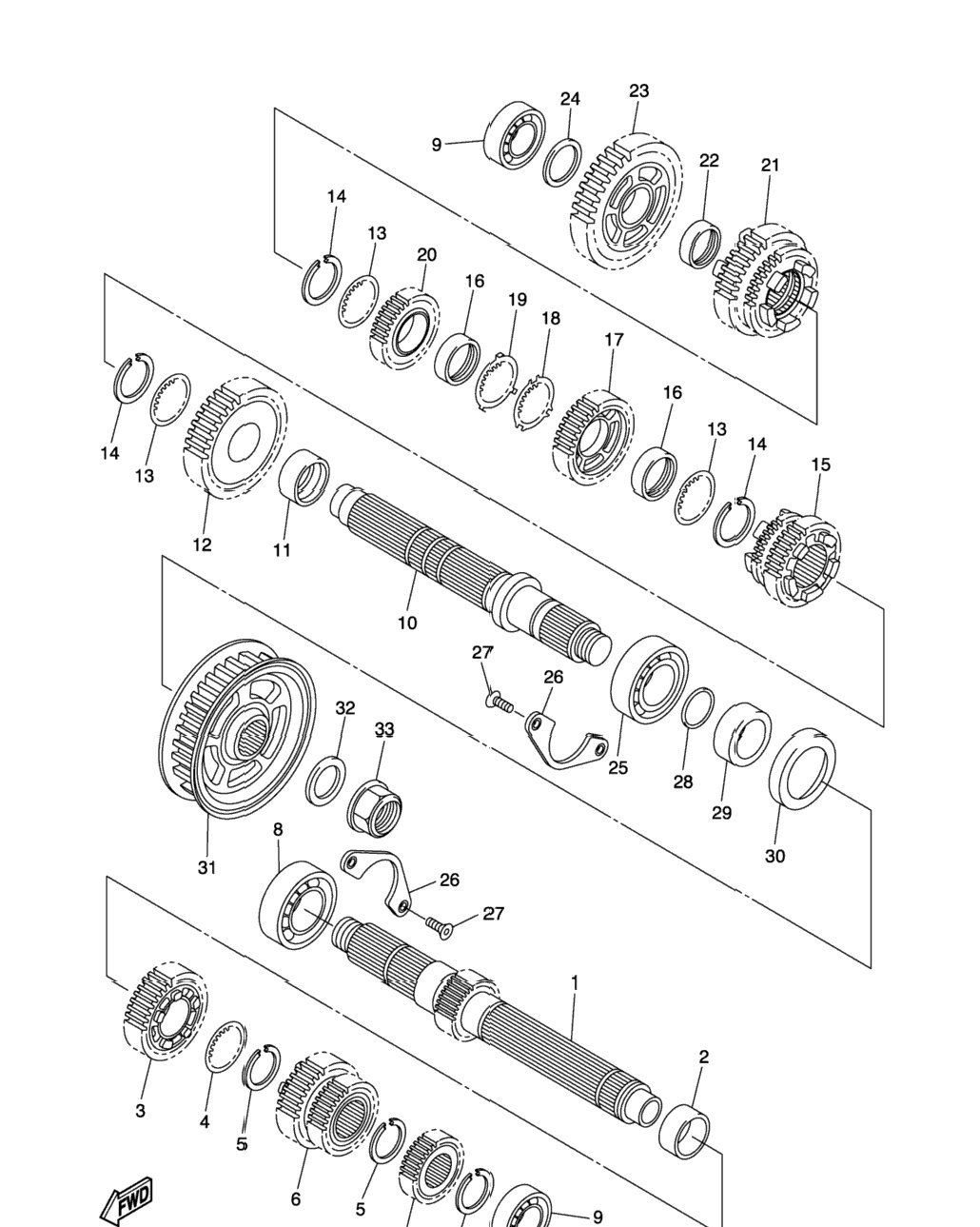

| 1 | 3D8-17411-00-00 | Axle, Main (13T) | 1 шт. | — | |
|
| 2 | 90387-28003-00 | Collar | 1 шт. | — | |
|
| 3 | 3D8-17151-00-00 | Gear, 5Th Pinion (25T) | 1 шт. | — | |
|
| 4 | 90209-25011-00 | Washer | 1 шт. | — | |
|
| 5 | 93440-28184-00 | Circlip | 3 шт. | — | |
|
| 6 | 27D-17131-00-00 | Gear, 3Rd Pinion (21/26T) | 1 шт. | — | |
|
| 7 | 3D8-17121-00-00 | Gear, 2Nd Pinion (18T) | 1 шт. | — | |
|
| 8 | 93306-37817-00 | Bearing | 1 шт. | — | |
|
| 9 | 93306-37215-00 | Bearing | 2 шт. | — | |
|
| 10 | 3D8-17421-00-00 | Axle, Drive | 1 шт. | — | |
|
| 11 | 90387-31003-00 | Collar | 1 шт. | — | |
|
| 12 | 3D8-17221-00-00 | Gear, 2Nd Wheel (32T) | 1 шт. | — | |
|
| 13 | 90209-28008-00 | Washer | 3 шт. | — | |
|
| 14 | 93440-31187-00 | Circlip | 3 шт. | — | |
|
| 15 | 3D8-17285-00-00 | Clutch, Dog | 1 шт. | — | |
|
| 16 | 90387-28004-00 | Collar | 2 шт. | — | |
|
| 17 | 3D8-17231-00-00 | Gear, 3Rd Wheel (29T) | 1 шт. | — | |
|
| 18 | 90214-29002-00 | Washer, Claw | 1 шт. | — | |
|
| 19 | 90214-28002-00 | Washer, Claw | 1 шт. | — | |
|
| 20 | 3D8-17241-00-00 | Gear, 4Th Wheel (29T) | 1 шт. | — | |
|
| 21 | 3D8-17251-00-00 | Gear, 5Th Wheel (24T) | 1 шт. | — | |
|
| 22 | 90387-25008-00 | Collar | 1 шт. | — | |
|
| 23 | 3D8-17211-00-00 | Gear, 1St Wheel (36T) | 1 шт. | — | |
|
| 24 | 90201-224L4-00 | Washer, Plate | 1 шт. | — | |
|
| 25 | 93306-30610-00 | Bearing | 1 шт. | — | |
|
| 26 | 3D8-15381-00-00 | Plate, Bearing Cover | 2 шт. | — | |
|
| 27 | 90151-06024-00 | Screw, Countersunk | 4 шт. | — | |
|
| 28 | 93210-27672-00 | O-Ring | 1 шт. | — | |
|
| 29 | 90387-30010-00 | Collar | 1 шт. | — | |
|
| 30 | 93102-45012-00 | Oil Seal | 1 шт. | — | |
|
| 31 | 3D8-17651-00-00 | Pulley, Belt | 1 шт. | — | |
|
| 32 | 90208-22004-00 | .Washer, Conical Spring | 1 шт. | — | |
|
| 33 | 90179-22016-00 | Nut | 1 шт. | — | |
|
