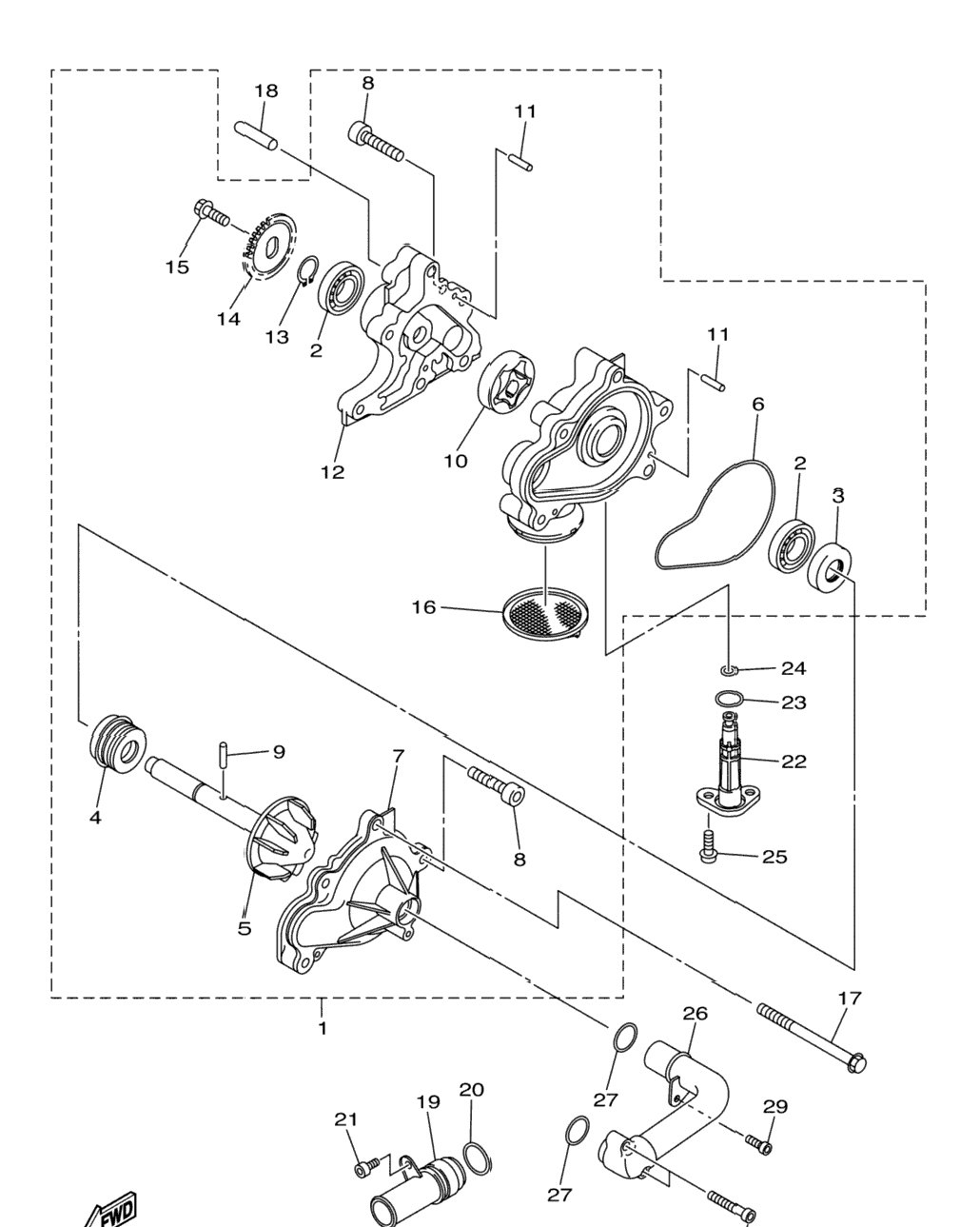

| 1 | 3D8-12420-03-00 | Water Pump Assy | 1 шт. | — | |
|
| 2 | 93306-00106-00 | . Bearing | 2 шт. | — | |
|
| 3 | 93102-12372-00 | . .Oil Seal | 1 шт. | — | |
|
| 4 | 5VK-12438-00-00 | . .Seal, Mechanical | 1 шт. | — | |
|
| 5 | 3D8-12450-01-00 | . .Impeller Shaft Assy | 1 шт. | — | |
|
| 6 | 3D8-12439-00-00 | . .O-Ring | 1 шт. | — | |
|
| 7 | 3D8-12422-00-00 | . .Cover, Housing | 1 шт. | — | |
|
| 8 | 91312-06025-00 | . Bolt, Hexagon Socket Head | 5 шт. | — | |
|
| 9 | 93603-17070-00 | . Pin, Dowel | 1 шт. | — | |
|
| 10 | 3D8-13310-00-00 | . .Rotor Assy 1 | 1 шт. | — | |
|
| 11 | 93603-12007-00 | . .Pin, Dowel | 4 шт. | — | |
|
| 12 | 3D8-13336-00-00 | . .Housing, Rotor | 1 шт. | — | |
|
| 13 | 99009-12400-00 | . .Circlip | 1 шт. | — | |
|
| 14 | 3D8-13355-00-00 | . .Sprocket, Driven | 1 шт. | — | |
|
| 15 | 90105-06066-00 | . .Bolt, Flange | 1 шт. | — | |
|
| 16 | 3D8-13411-00-00 | . .Strainer, Oil | 1 шт. | — | |
|
| 17 | 90110-08049-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 18 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 19 | 3D8-1248E-01-00 | Pipe 9 | 1 шт. | — | |
|
| 20 | 93210-27370-00 | O-Ring | 1 шт. | — | |
|
| 21 | 90110-06182-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 22 | 27D-12562-00-00 | Body, Drain Cock | 1 шт. | — | |
|
| 23 | 93210-15639-00 | O-Ring | 1 шт. | — | |
|
| 24 | 93210-07003-00 | .O-Ring | 1 шт. | — | |
|
| 25 | 90110-06219-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 26 | 3D8-12564-00-00 | Pipe, Water | 1 шт. | — | |
|
| 27 | 93210-235A1-00 | O-Ring | 2 шт. | — | |
|
| 28 | 90110-06208-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 29 | 90110-06161-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
