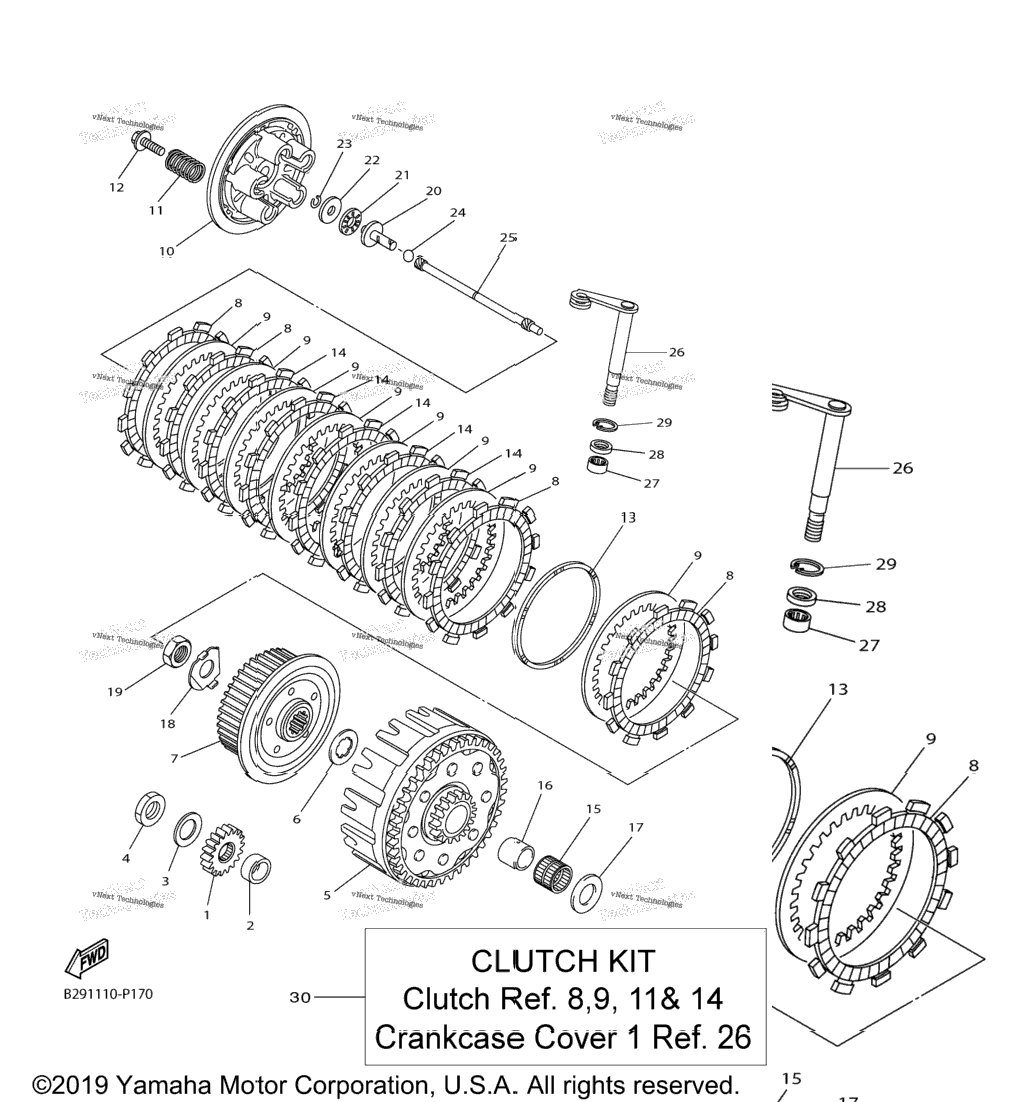

| 1 | 1SM-16111-00-00 | Gear, Primary Drive | 1 шт. | — | |
|
| 2 | 90387-19008-00 | Collar | 1 шт. | — | |
|
| 3 | 90208-16019-00 | Washer, Conical Spring | 1 шт. | — | |
|
| 4 | 90170-16003-00 | Nut | 1 шт. | — | |
|
| 5 | 1SM-16150-00-00 | Primary Driven Gear Comp | 1 шт. | — | |
|
| 6 | 1SM-16154-00-00 | Plate, Thrust 1 | 1 шт. | — | |
|
| 7 | 2GB-16371-00-00 | Boss, Clutch | 1 шт. | — | |
|
| 8 | 5XC-16321-00-00 | Plate, Friction INCL. IN CLUTCH KIT | 4 шт. | — | |
|
| 9 | 5NL-16325-00-00 | Plate, Clutch 2 INCL. IN CLUTCH KIT | 8 шт. | — | |
|
| 10 | 1SM-16351-00-00 | Plate, Pressure 1 | 1 шт. | — | |
|
| 11 | 90501-220A4-00 | Spring, Compression | 5 шт. | — | |
|
| 12 | 90159-06029-00 | Screw, With Washer | 5 шт. | — | |
|
| 13 | 1SM-16383-00-00 | Spring, Cushion | 1 шт. | — | |
|
| 14 | 2GB-16321-00-00 | Plate, Friction INCL. IN CLUTCH KIT | 5 шт. | — | |
|
| 15 | 93310-225N0-00 | Bearing | 1 шт. | — | |
|
| 16 | 1SM-16181-00-00 | Spacer 1 | 1 шт. | — | |
|
| 17 | 90201-20611-00 | Washer, Plate | 1 шт. | — | |
|
| 18 | 90215-16289-00 | Washer, Lock | 1 шт. | — | |
|
| 19 | 90170-16326-00 | Nut | 1 шт. | — | |
|
| 20 | 1SM-16356-00-00 | Rod, Push 1 | 1 шт. | — | |
|
| 21 | 93340-21008-00 | Bearing | 1 шт. | — | |
|
| 22 | 90201-080H1-00 | Washer, Plate | 1 шт. | — | |
|
| 23 | 93440-07182-00 | Circlip | 1 шт. | — | |
|
| 24 | 93511-32027-00 | Ball | 1 шт. | — | |
|
| 25 | 1SM-16357-00-00 | Rod, Push 2 | 1 шт. | — | |
|
| 26 | 2GB-16381-00-00 | Push Lever Comp | 1 шт. | — | |
|
| 27 | 93317-11096-00 | Bearing | 1 шт. | — | |
|
| 28 | 93102-10008-00 | Oil Seal | 1 шт. | — | |
|
| 29 | 99009-18500-00 | Circlip | 1 шт. | — | |
|
| 30 | 2GB-W001G-00-00 | Clutch Kit NOT SHOWN | 1 шт. | — | |
|
