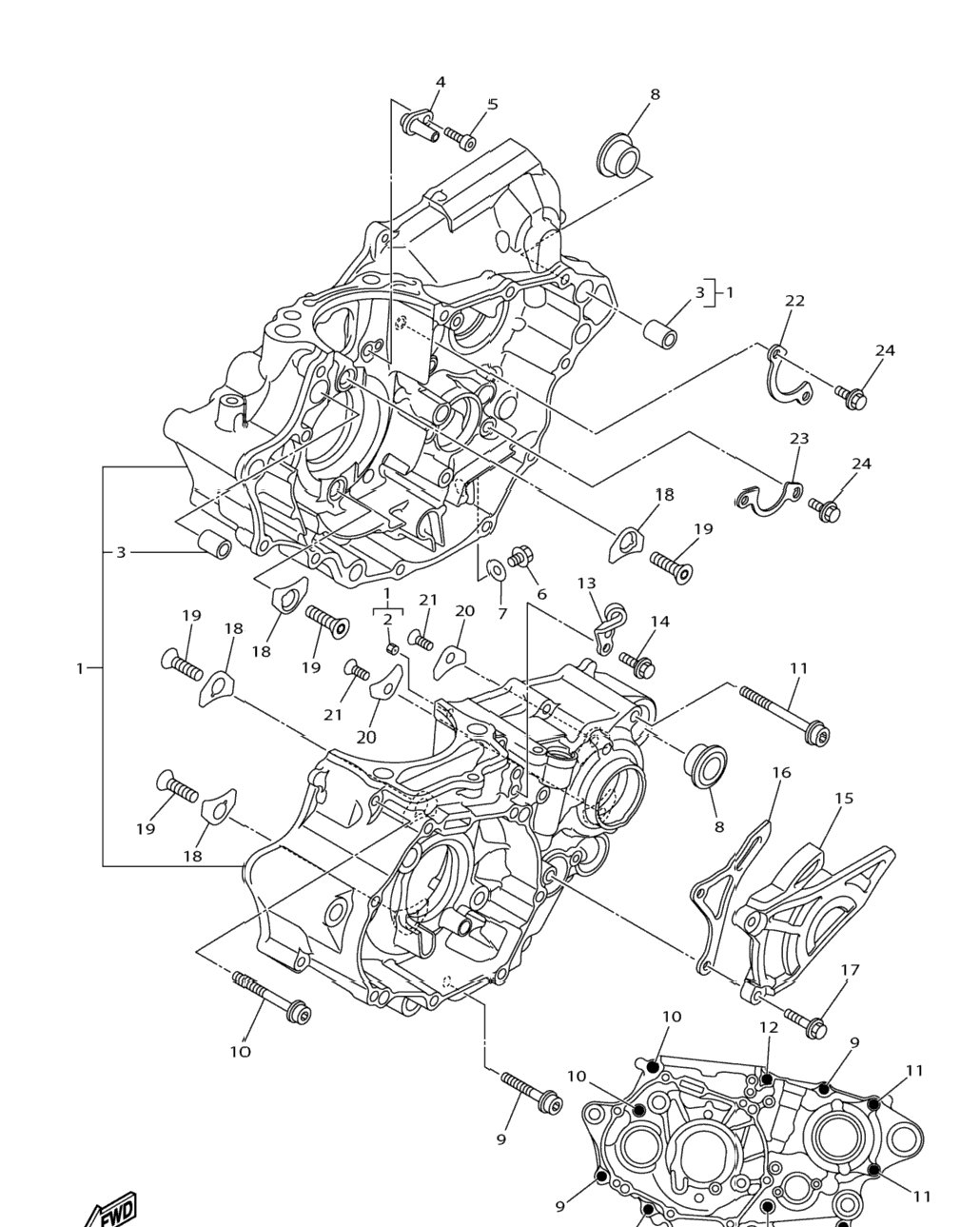

| 1 | 1SM-15100-09-00 | Crankcase Assy | 1 шт. | — | |
|
| 2 | 1SM-15138-00-00 | . .Nozzle 1 | 1 шт. | — | |
|
| 3 | 99530-14016-00 | . Pin, Dowel | 2 шт. | — | |
|
| 4 | 1SM-15155-00-00 | Nozzle 3 | 1 шт. | — | |
|
| 5 | 90110-05032-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 6 | 95022-10016-00 | Bolt, Flange | 1 шт. | — | |
|
| 7 | 90430-10188-00 | Gasket INCL. WITH BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 8 | 90387-17015-00 | Collar | 2 шт. | — | |
|
| 9 | 90110-06391-00 | Bolt, Hexagon Socket Head | 7 шт. | — | |
|
| 10 | 90110-06363-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 11 | 90110-06392-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 12 | 91317-06075-00 | Bolt, Hex. Socket Head | 1 шт. | — | |
|
| 13 | 1SL-15441-00-00 | Holder, Clutch Cable | 1 шт. | — | |
|
| 14 | 90105-06099-00 | Bolt, Flange | 2 шт. | — | |
|
| 15 | 1SL-15421-00-00 | Cover, Crankcase 2 | 1 шт. | — | |
|
| 16 | 1SL-17466-00-00 | Guide, Chain | 1 шт. | — | |
|
| 17 | 90105-06189-00 | Bolt, Flange | 2 шт. | — | |
|
| 18 | 18P-15383-00-00 | Plate, Bearing Cover | 4 шт. | — | |
|
| 19 | 90151-08007-00 | Screw, Countersunk | 4 шт. | — | |
|
| 20 | 4JT-15381-01-00 | .Plate, Bearing Cover | 2 шт. | — | |
|
| 21 | 90149-06074-00 | Screw | 2 шт. | — | |
|
| 22 | 1SM-15388-00-00 | Plate, Bearing Cover | 1 шт. | — | |
|
| 23 | 1SL-18562-00-00 | Plate, Stopper 2 | 1 шт. | — | |
|
| 24 | 90105-06081-00 | Bolt, Flange | 4 шт. | — | |
|
