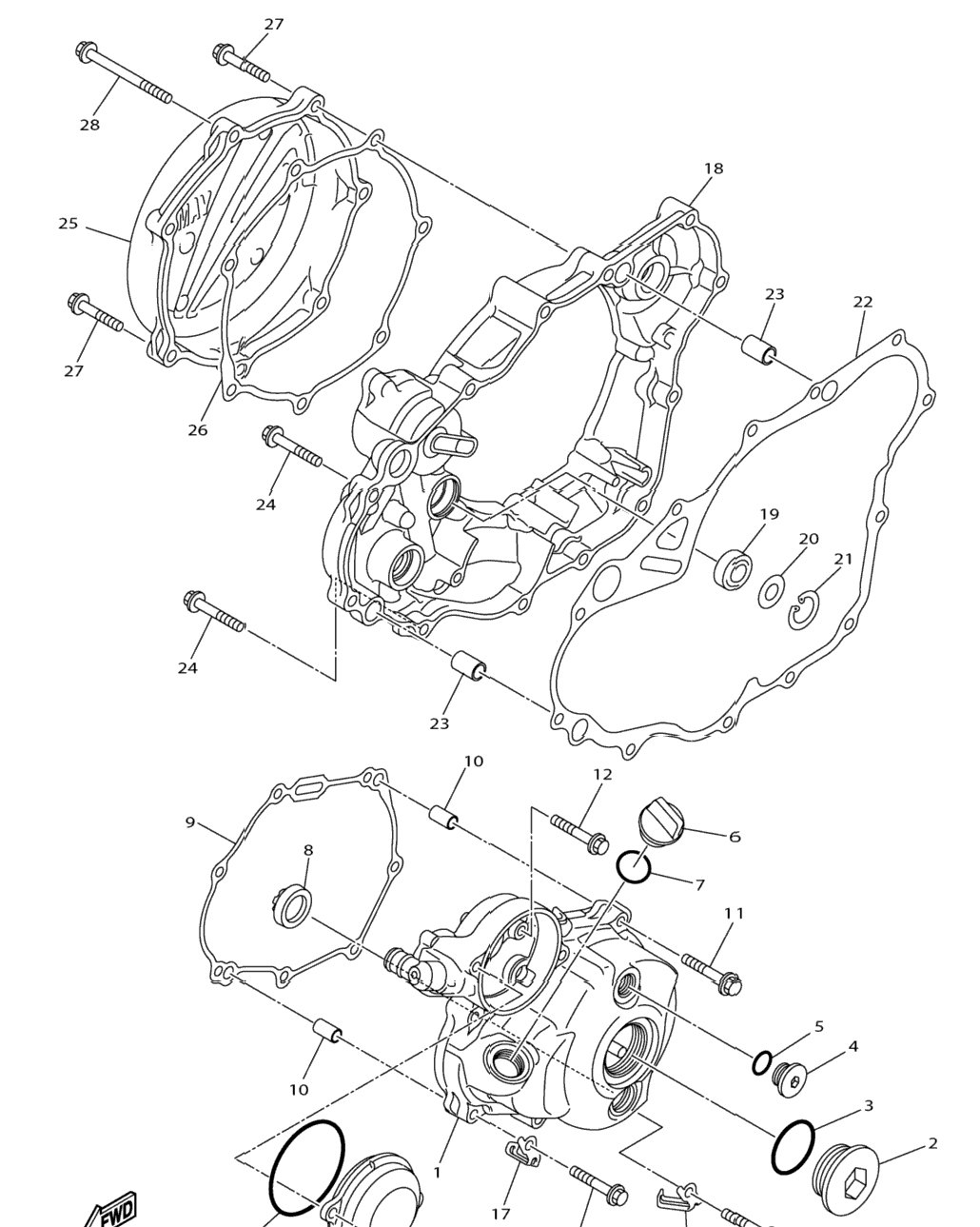

| 1 | 2GB-15411-00-00 | Cover, Crankcase 1 | 1 шт. | — | |
|
| 2 | 90340-36002-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 3 | 93210-357A3-00 | O-Ring | 1 шт. | — | |
|
| 4 | 90340-14011-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 5 | 93210-14369-00 | O-Ring | 1 шт. | — | |
|
| 6 | 3Y1-15363-10-00 | Plug, Oil | 1 шт. | — | |
|
| 7 | 93210-19123-00 | O-Ring | 1 шт. | — | |
|
| 8 | 3Y6-15361-00-00 | Gauge, Level | 1 шт. | — | |
|
| 9 | 1SM-15451-00-00 | Gasket, Crankcase Cover 1 INCL. WITH BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 10 | 99530-08016-00 | Pin, Dowel | 2 шт. | — | |
|
| 11 | 95022-06030-00 | Bolt, Flange | 6 шт. | — | |
|
| 12 | 95022-06020-00 | Bolt, Flange | 1 шт. | — | |
|
| 13 | 5TJ-1549B-30-00 | Cover Assy 2 | 1 шт. | — | |
|
| 14 | 93210-58346-00 | O-Ring | 1 шт. | — | |
|
| 15 | 95022-06014-00 | Bolt, Flange | 2 шт. | — | |
|
| 16 | 2GB-15199-00-00 | Bracket | 1 шт. | — | |
|
| 17 | 90465-08062-00 | Clamp | 2 шт. | — | |
|
| 18 | 1SM-15431-00-00 | Cover, Crankcase 3 | 1 шт. | — | |
|
| 19 | 93101-14164-00 | Oil Seal | 1 шт. | — | |
|
| 20 | 90201-15701-00 | Washer, Plate (T=1.0) | 1 шт. | — | |
|
| 21 | 99009-22500-00 | Circlip | 1 шт. | — | |
|
| 22 | 1SM-15462-00-00 | Gasket, Crankcase Cover 3 INCL. WITH BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 23 | 99530-12016-00 | Pin, Dowel | 2 шт. | — | |
|
| 24 | 90105-06102-00 | Bolt, Flange | 11 шт. | — | |
|
| 25 | 1SM-15415-00-00 | Cover, 1 | 1 шт. | — | |
|
| 26 | 1SM-15453-00-00 | Gasket, Crankcase Cover 3 INCL. WITH CLUTCH AND BOTTOM END GASKET KITS | 1 шт. | — | |
|
| 27 | 95022-06025-00 | .Bolt, Flange | 6 шт. | — | |
|
| 28 | 95022-06060-00 | Bolt, Flange | 1 шт. | — | |
|
