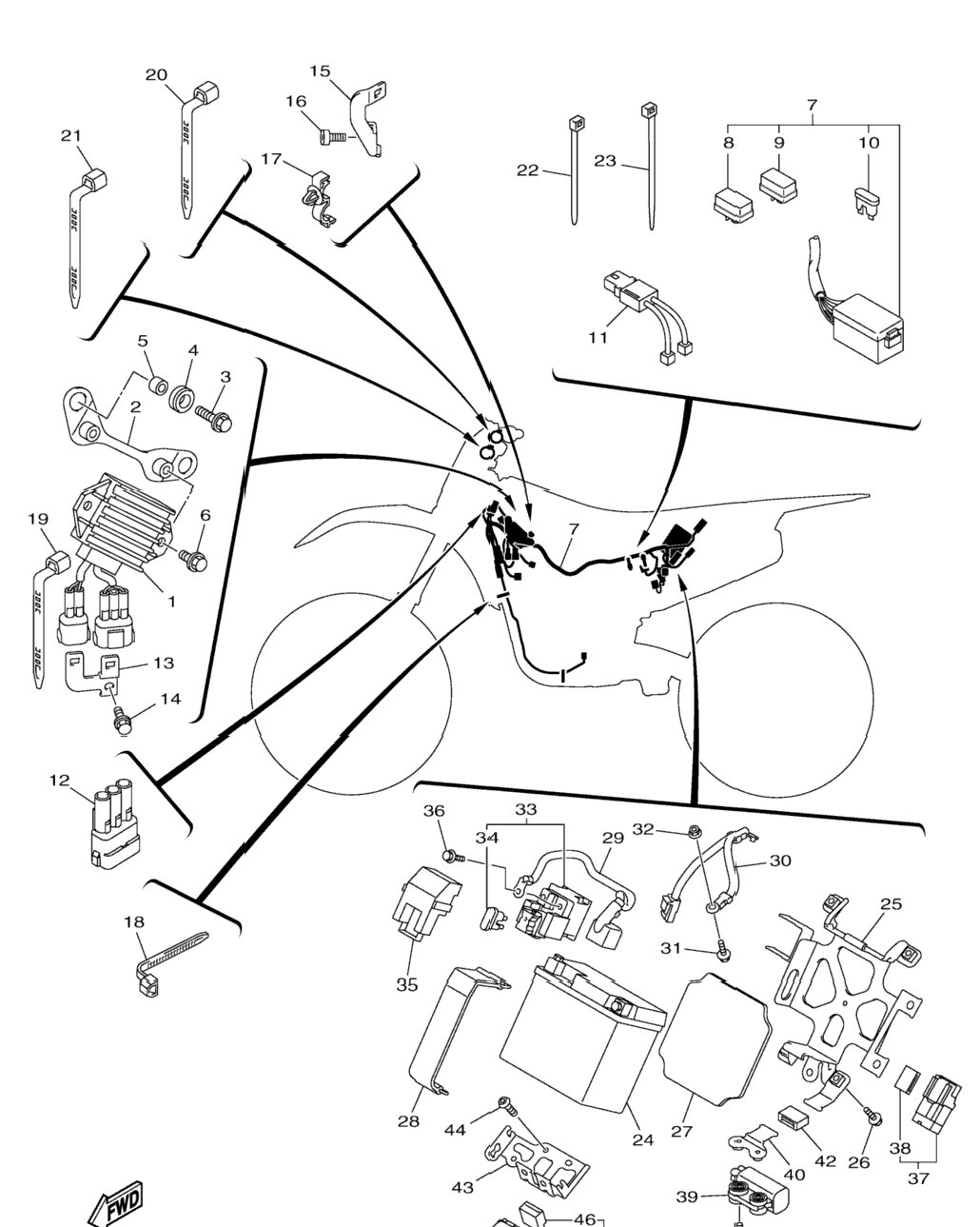

| 1 | 2GB-81960-00-00 | Rectifier & Regulator Assy | 1 шт. | — | |
|
| 2 | 1SL-21287-00-00 | Bracket, Regulator | 1 шт. | — | |
|
| 3 | 90105-06203-00 | Bolt, Flange | 2 шт. | — | |
|
| 4 | 90480-13025-00 | Grommet | 2 шт. | — | |
|
| 5 | 90387-066J9-00 | Collar | 2 шт. | — | |
|
| 6 | 90105-06064-00 | Bolt, Flange | 2 шт. | — | |
|
| 7 | B29-82590-00-00 | Wire Harness Assy | 1 шт. | — | |
|
| 8 | 3WP-81980-00-00 | . .Diode Assy | 2 шт. | — | |
|
| 9 | 4WA-81980-00-00 | . .Diode Assy | 1 шт. | — | |
|
| 10 | 5JJ-82151-90-00 | . .Fuse (5A-Bl) | 1 шт. | — | |
|
| 11 | 1SL-82309-00-00 | Wire, Sub Lead | 1 шт. | — | |
|
| 12 | 33D-82378-00-00 | Connector | 1 шт. | — | |
|
| 13 | 1SL-82388-00-00 | Plate | 1 шт. | — | |
|
| 14 | 90105-06110-00 | Bolt, Flange | 1 шт. | — | |
|
| 15 | 1SL-82389-00-00 | Plate 2 | 1 шт. | — | |
|
| 16 | 91380-06012-00 | .Bolt | 1 шт. | — | |
|
| 17 | 90464-17003-00 | Clamp | 1 шт. | — | |
|
| 18 | 90465-10098-00 | Clamp | 1 шт. | — | |
|
| 19 | 90464-13073-00 | Clamp | 1 шт. | — | |
|
| 20 | 90464-13077-00 | Clamp | 2 шт. | — | |
|
| 21 | 90464-13073-00 | Clamp | 2 шт. | — | |
|
| 22 | 1UA-82591-00-00 | .Band | 1 шт. | — | |
|
| 23 | 90464-32060-00 | Clamp | 1 шт. | — | |
|
| 24 | 5TJ-82100-01-00 | Battery Assy (Ytz7s(F)) | 1 шт. | — | |
|
| 25 | 2GB-82128-00-00 | Bracket, Battery | 1 шт. | — | |
|
| 26 | 90119-06133-00 | Bolt, With Washer | 4 шт. | — | |
|
| 27 | 2GB-82176-00-00 | Damper | 1 шт. | — | |
|
| 28 | 8CY-82131-00-00 | Band, Battery | 1 шт. | — | |
|
| 29 | 2GB-82115-00-00 | Wire, Plus Lead | 1 шт. | — | |
|
| 30 | 2GB-82116-00-00 | Wire, Minus Lead | 1 шт. | — | |
|
| 31 | 90105-06064-00 | Bolt, Flange | 1 шт. | — | |
|
| 32 | 95702-06500-00 | Nut, Flange | 1 шт. | — | |
|
| 33 | 2GB-81940-00-00 | Starter Relay Assy (Rc19-102B) | 1 шт. | — | |
|
| 34 | 36Y-82151-00-00 | . .Fuse (15A-Blue) | 2 шт. | — | |
|
| 35 | 5SL-82119-10-00 | Cover, Lead Wire | 1 шт. | — | |
|
| 36 | 95022-06008-00 | Bolt, Flange | 2 шт. | — | |
|
| 37 | 1ST-81950-00-00 | Relay Assy (1St-00) | 1 шт. | — | |
|
| 38 | 5JJ-81952-00-00 | . .Holder, Relay | 1 шт. | — | |
|
| 39 | 5VU-82576-01-00 | Sensor, Lean Angle | 0 шт. | — | |
|
| 40 | 2GB-85542-00-00 | Bracket | 1 шт. | — | |
|
| 41 | 91312-04020-00 | .Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 42 | 2GB-83513-00-00 | Damper | 1 шт. | — | |
|
| 43 | 2GB-8252H-00-00 | Plate, Holder | 1 шт. | — | |
|
| 44 | 97702-50014-00 | Screw, Tapping | 2 шт. | — | |
|
| 45 | 1TP-81950-00-00 | Relay Assy (1Tp-00) | 2 шт. | — | |
|
| 46 | 5EA-81952-00-00 | . .Holder, Relay | 1 шт. | — | |
|
