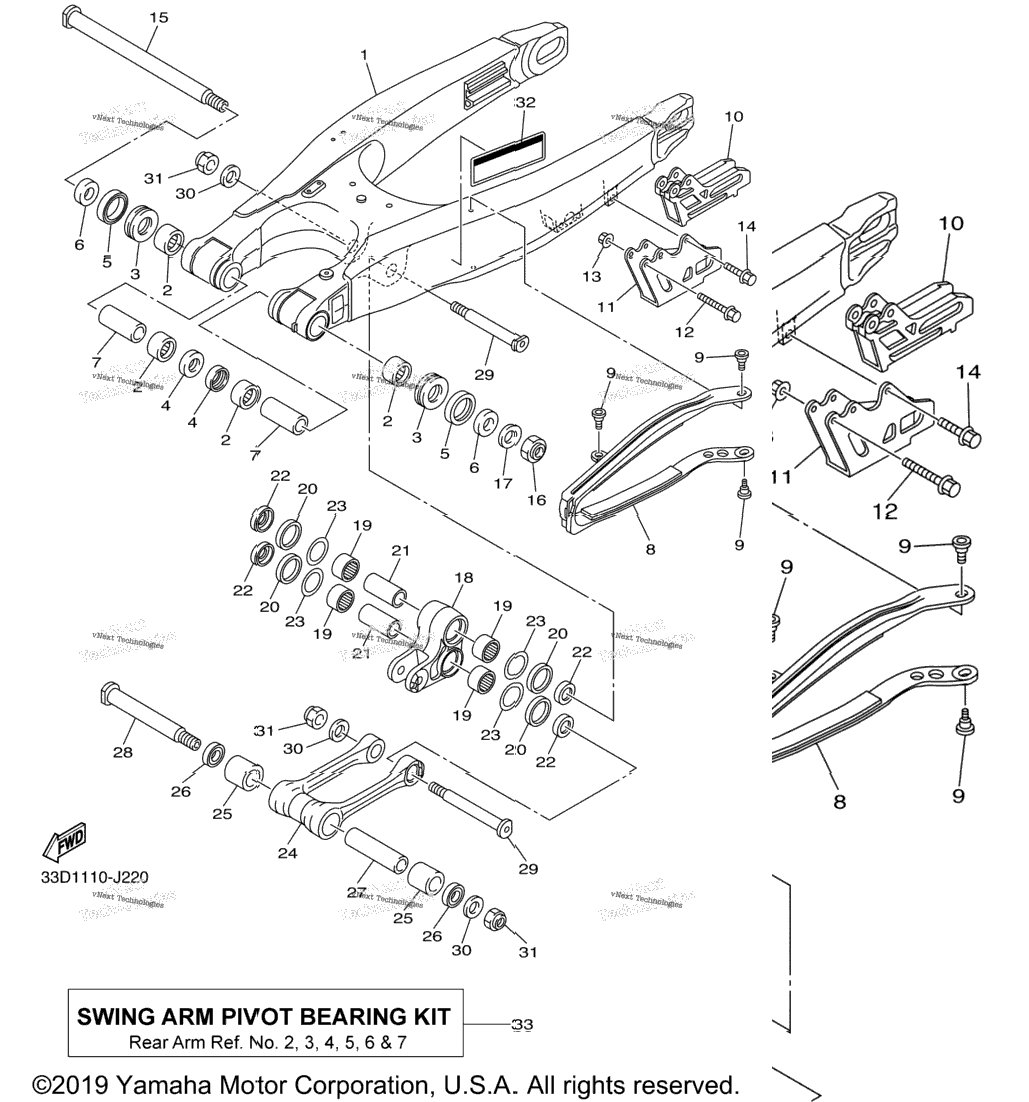

| 1 | 1SL-22110-00-00 | Rear Arm Comp | 1 шт. | — | |
|
| 2 | 93317-22262-00 | Bearing INCL. IN SWING ARM PIVOT BEARING KIT | 4 шт. | — | |
|
| 3 | 93342-22217-00 | Bearing INCL. IN SWING ARM PIVOT BEARING KIT | 2 шт. | — | |
|
| 4 | 93106-22002-00 | Oil Seal INCL. IN SWING ARM PIVOT BEARING KIT | 2 шт. | — | |
|
| 5 | 93109-28043-00 | Oil Seal INCL. IN SWING ARM PIVOT BEARING KIT | 2 шт. | — | |
|
| 6 | 90387-17016-00 | Collar INCL. IN SWING ARM PIVOT BEARING KIT | 2 шт. | — | |
|
| 7 | 90387-1714S-00 | Collar INCL. IN SWING ARM PIVOT BEARING KIT | 2 шт. | — | |
|
| 8 | 34P-22151-01-00 | Seal, Guard | 1 шт. | — | |
|
| 9 | 1C3-22969-90-00 | Screw, 1 | 3 шт. | — | |
|
| 10 | 2S2-22199-70-00 | Support, Chain | 1 шт. | — | |
|
| 11 | 2S2-22128-70-00 | Cover, Thrust 1 | 1 шт. | — | |
|
| 12 | 90105-06104-00 | Bolt, Flange | 2 шт. | — | |
|
| 13 | 95702-06500-00 | Nut, Flange | 2 шт. | — | |
|
| 14 | 90105-06105-00 | Bolt, Flange | 1 шт. | — | |
|
| 15 | 33D-22141-00-00 | Shaft, Pivot | 1 шт. | — | |
|
| 16 | 90185-16002-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 17 | 90201-16018-00 | Washer, Plate | 1 шт. | — | |
|
| 18 | 17D-2217A-00-00 | Arm, Relay | 1 шт. | — | |
|
| 19 | 93315-32166-00 | Bearing | 4 шт. | — | |
|
| 20 | 93109-25001-00 | Oil Seal | 4 шт. | — | |
|
| 21 | 90387-16026-00 | Collar | 2 шт. | — | |
|
| 22 | 90209-16011-00 | Washer | 4 шт. | — | |
|
| 23 | 90201-21014-00 | Washer, Plate | 4 шт. | — | |
|
| 24 | 33D-2217F-00-00 | Rod, Connecting 1 | 1 шт. | — | |
|
| 25 | 93315-32166-00 | Bearing | 2 шт. | — | |
|
| 26 | 93109-21001-00 | Oil Seal | 2 шт. | — | |
|
| 27 | 90387-14016-00 | Collar | 1 шт. | — | |
|
| 28 | 5XC-22121-91-00 | Shaft 1 | 1 шт. | — | |
|
| 29 | 34P-22122-00-00 | Shaft 2 | 2 шт. | — | |
|
| 30 | 90201-14020-00 | Washer, Plate | 3 шт. | — | |
|
| 31 | 90185-14010-00 | Nut, Self-Locking | 3 шт. | — | |
|
| 32 | 3RV-21668-A0-00 | Label, Tire | 1 шт. | — | |
|
| 33 | 33D-W002C-00-00 | Swing Arm Pivot Bearing Kit | 0 шт. | — | |
|
