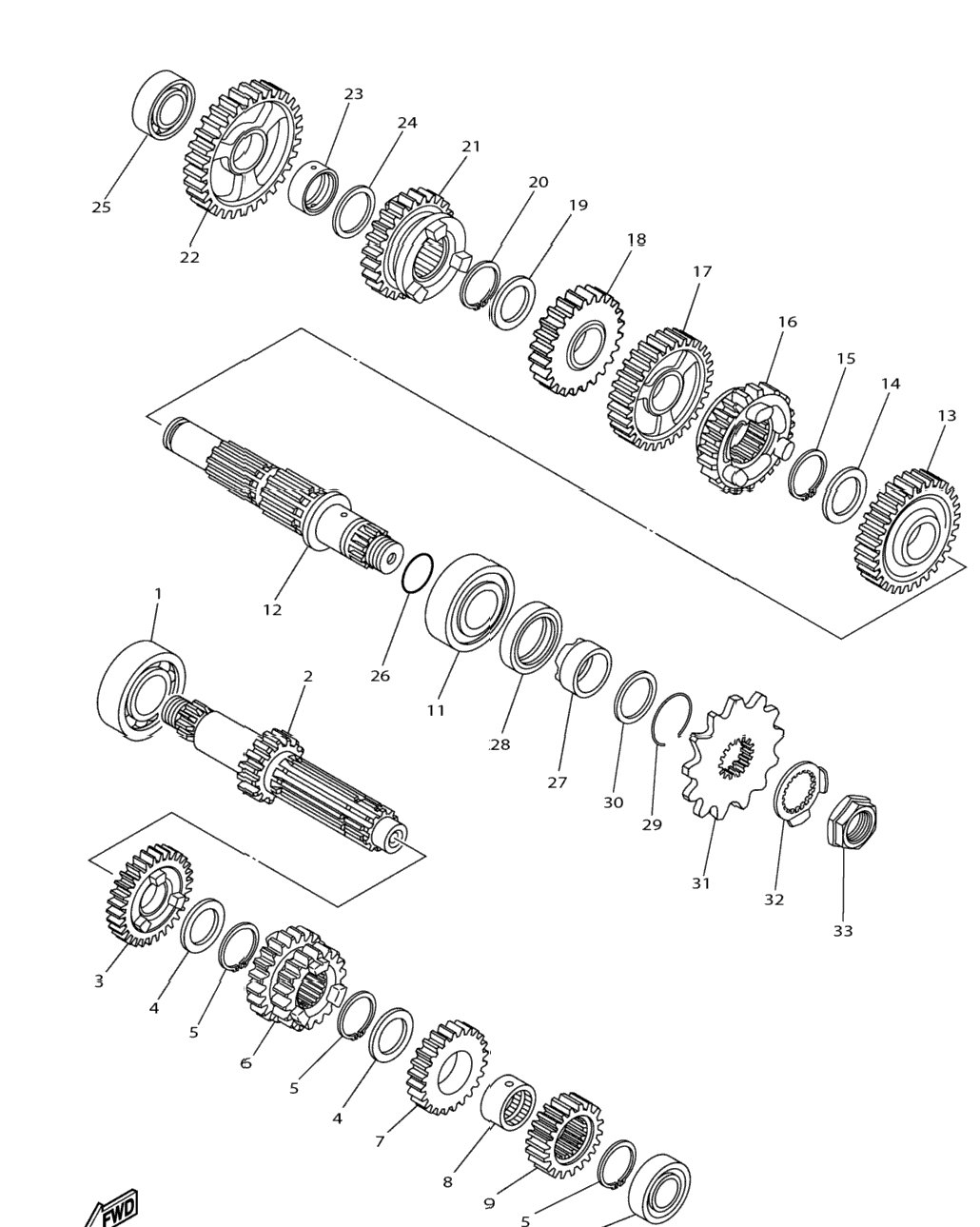

| 1 | 93306-00426-00 | Bearing | 1 шт. | — | |
|
| 2 | 2GB-17411-00-00 | Axle, Main | 1 шт. | — | |
|
| 3 | 2GB-17161-00-00 | Gear, 6Th Pinion (27T) | 1 шт. | — | |
|
| 4 | 90209-20008-00 | Washer | 2 шт. | — | |
|
| 5 | 93410-22039-00 | Circlip | 3 шт. | — | |
|
| 6 | 2GB-17131-00-00 | Gear, 3Rd Pinion | 1 шт. | — | |
|
| 7 | 2GB-17151-00-00 | Gear, 5Th Pinion (23T) | 1 шт. | — | |
|
| 8 | 90387-20006-00 | Collar | 1 шт. | — | |
|
| 9 | 2GB-17121-00-00 | Gear, 2Nd Pinion | 1 шт. | — | |
|
| 10 | 93306-20336-00 | Bearing | 1 шт. | — | |
|
| 11 | 93306-27209-00 | Bearing | 1 шт. | — | |
|
| 12 | 2GB-1742A-00-00 | Drive Axle Assy., 2 | 1 шт. | — | |
|
| 13 | 2GB-17221-00-00 | Gear, 2Nd Wheel | 1 шт. | — | |
|
| 14 | 90209-23012-00 | Washer | 1 шт. | — | |
|
| 15 | 93410-26067-00 | Circlip | 1 шт. | — | |
|
| 16 | 2GB-17251-00-00 | Gear, 5Th Wheel (22T) | 1 шт. | — | |
|
| 17 | 2GB-17231-00-00 | Gear, 3Rd Wheel | 1 шт. | — | |
|
| 18 | 2GB-17241-00-00 | Gear, 4Th Wheel | 1 шт. | — | |
|
| 19 | 90209-20008-00 | Washer | 1 шт. | — | |
|
| 20 | 93410-22039-00 | Circlip | 1 шт. | — | |
|
| 21 | 2GB-17261-00-00 | Gear, 6Th Wheel (22T) | 1 шт. | — | |
|
| 22 | 2GB-17211-00-00 | Gear, 1St Wheel (31T) | 1 шт. | — | |
|
| 23 | 90387-17012-00 | Collar | 1 шт. | — | |
|
| 24 | 90201-177G4-00 | .Washer, Plate | 1 шт. | — | |
|
| 25 | 93306-20351-00 | Bearing | 1 шт. | — | |
|
| 26 | 93210-196A4-00 | O-Ring INCL. WITH BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 27 | 90387-22033-00 | Collar | 1 шт. | — | |
|
| 28 | 93102-28012-00 | Oil Seal INCL. WITH BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 29 | 93450-40N50-00 | Circlip | 1 шт. | — | |
|
| 30 | 90201-29M00-00 | Washer, Plate | 1 шт. | — | |
|
| 31 | 9383B-13218-00 | Sprocket, Drive (13T) | 1 шт. | — | |
|
| 32 | 90215-20003-00 | Washer, Lock | 1 шт. | — | |
|
| 33 | 90179-18001-00 | Nut | 1 шт. | — | |
|
