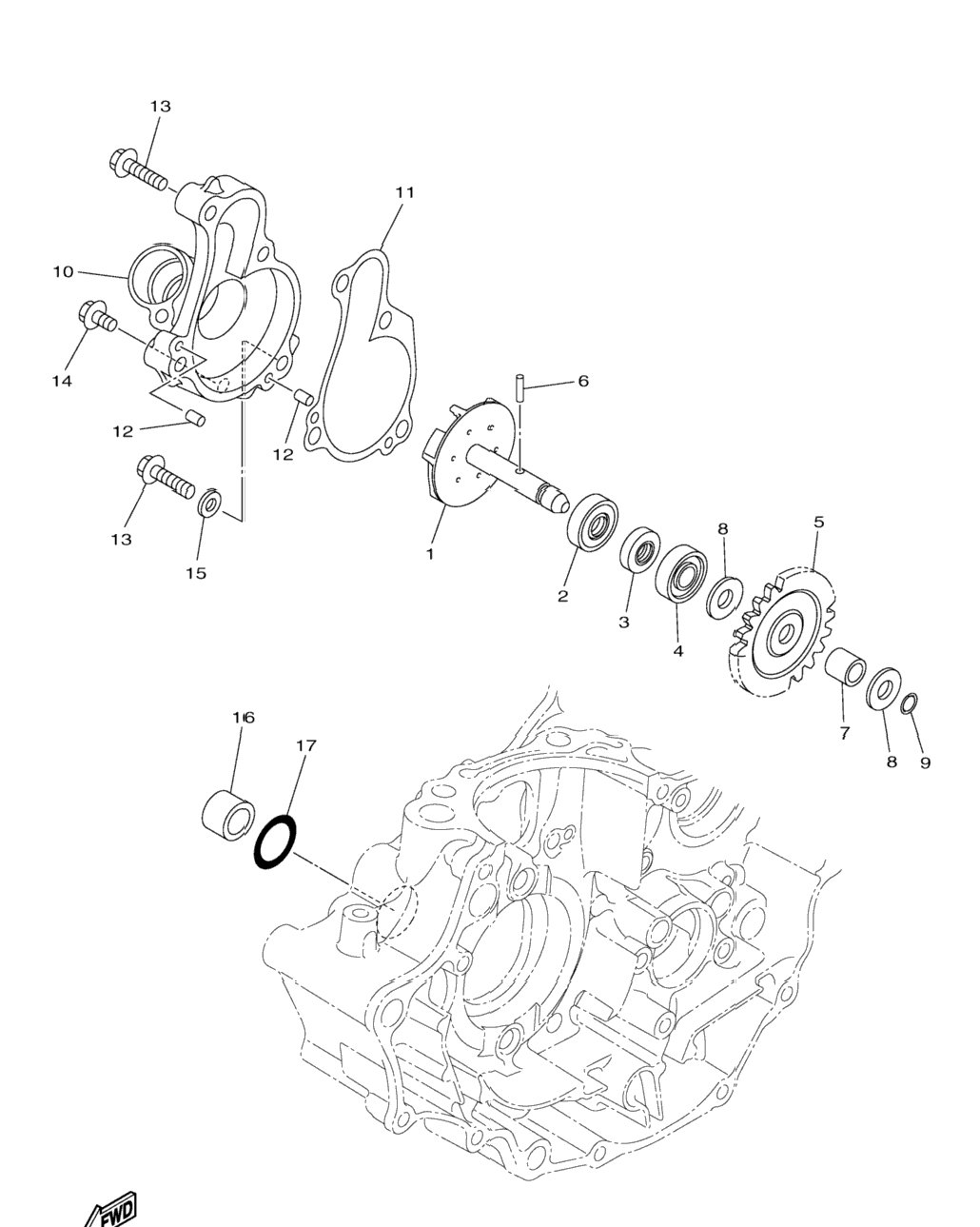

| 1 | 1SM-12450-01-00 | Impeller Shaft Assy | 1 шт. | — | |
|
| 2 | 93102-08004-00 | Oil Seal | 1 шт. | — | |
|
| 3 | 93102-08307-00 | Oil Seal | 1 шт. | — | |
|
| 4 | 93300-60801-00 | Bearing KOYO | 0 шт. | — | |
|
| 5 | 1SM-12453-00-00 | Gear | 1 шт. | — | |
|
| 6 | 93603-12007-00 | Pin, Dowel | 1 шт. | — | |
|
| 7 | 90387-08032-00 | Collar | 1 шт. | — | |
|
| 8 | 90201-08512-00 | Washer, Plate | 2 шт. | — | |
|
| 9 | 93440-07182-00 | Circlip | 1 шт. | — | |
|
| 10 | 33D-12422-00-00 | Cover, Housing | 1 шт. | — | |
|
| 11 | 33D-12427-00-00 | Gasket, Housing Cover 1 INCL. WITH BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 12 | 93604-10011-00 | .Pin, Dowel | 2 шт. | — | |
|
| 13 | 95022-06025-00 | .Bolt, Flange | 4 шт. | — | |
|
| 14 | 95022-06010-00 | Bolt, Flange | 1 шт. | — | |
|
| 15 | 90430-06014-00 | Gasket INCL. WITH BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 16 | 5NL-12564-00-00 | Pipe, Water | 1 шт. | — | |
|
| 17 | 93210-16716-00 | O-Ring | 1 шт. | — | |
|
| 18 | 93210-16772-00 | O-Ring INCL. WITH BOTTOM END GASKET KIT | 1 шт. | — | |
|
