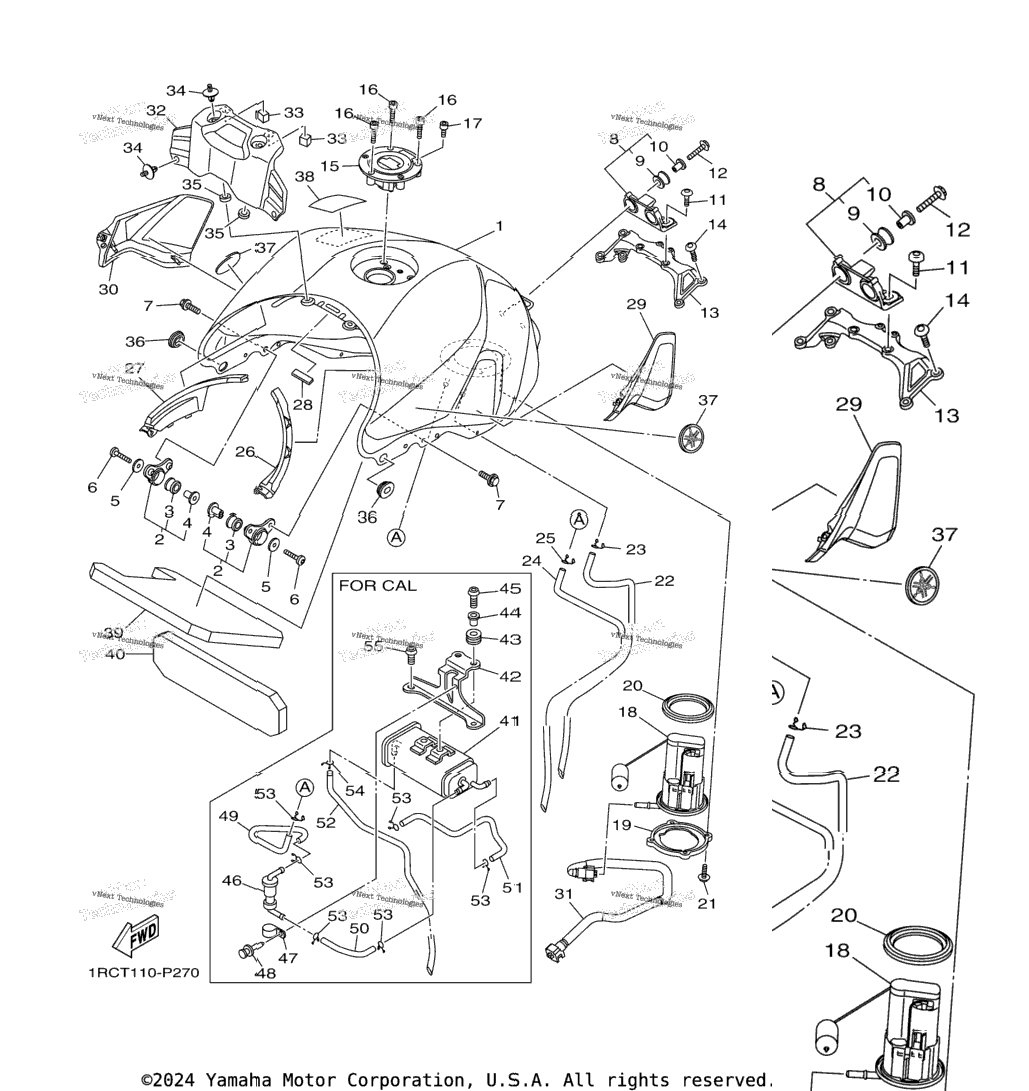

| 1 | 1RC-24110-00-P5 | Fuel Tank Comp UR FOR MS1 | 0 шт. | — | |
|
| 2 | 1RC-YK241-00-P6 | Fuel Tank Comp UR FOR RYC1 | 0 шт. | — | |
|
| 3 | 1RC-24110-00-P0 | Fuel Tank Comp UR FOR MNM3 | 1 шт. | — | |
|
| 4 | 23P-24104-00-00 | Tank Bracket Assy | 2 шт. | — | |
|
| 5 | 90480-18008-00 | . Grommet | 1 шт. | — | |
|
| 6 | 90387-06266-00 | . Collar | 1 шт. | — | |
|
| 7 | 90201-06072-00 | Washer, Plate | 2 шт. | — | |
|
| 8 | 92012-06035-00 | Bolt, Button Head | 2 шт. | — | |
|
| 9 | 90119-06200-00 | Bolt, With Washer | 4 шт. | — | |
|
| 10 | 1RC-24104-00-00 | Tank Bracket Assy | 1 шт. | — | |
|
| 11 | 3D7-24339-00-00 | . Grommet | 2 шт. | — | |
|
| 12 | 90387-06136-00 | . Collar | 2 шт. | — | |
|
| 13 | 90111-06136-00 | Bolt, Hexagon Socket Button | 2 шт. | — | |
|
| 14 | 95812-06025-00 | Bolt, Flange | 0 шт. | — | |
|
| 15 | 1RC-2413Y-00-00 | Bracket, Tank Fitting | 1 шт. | — | |
|
| 16 | 92017-06020-00 | .Bolt, Button Head | 4 шт. | — | |
|
| 17 | 39P-24602-10-00 | Cap Assy | 1 шт. | — | |
|
| 18 | 90110-05112-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 19 | 91312-05010-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 20 | 1RC-13907-00-00 | Fuel Pump Comp | 0 шт. | — | |
|
| 21 | 1RC-24491-00-00 | Bracket, Fuel Pump | 1 шт. | — | |
|
| 22 | 1RC-24486-00-00 | O-Ring | 1 шт. | — | |
|
| 23 | 90110-05028-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 24 | 1RC-24315-00-00 | Pipe 5 | 1 шт. | — | |
|
| 25 | 90467-09006-00 | Clip | 1 шт. | — | |
|
| 26 | 1RC-24316-00-00 | Pipe 6 FOR U49 | 1 шт. | — | |
|
| 27 | 90467-09006-00 | Clip FOR U49 | 1 шт. | — | |
|
| 28 | 1RC-2418B-01-00 | Mole, Fuel Tank 1 | 1 шт. | — | |
|
| 29 | 1RC-2419B-01-00 | Mole, Fuel Tank 2 | 1 шт. | — | |
|
| 30 | 3VD-24188-00-00 | Mold, Fuel Tank | 1 шт. | — | |
|
| 31 | 1RC-24106-00-00 | Tank Side Cover Assy 1 | 1 шт. | — | |
|
| 32 | 1RC-24108-00-00 | Tank Side Cover Assy 2 | 1 шт. | — | |
|
| 33 | 1RC-13971-00-00 | Pipe, Fuel 1 | 1 шт. | — | |
|
| 34 | 1RC-241B1-00-00 | Cover, Tank | 1 шт. | — | |
|
| 35 | 90520-15012-00 | Damper, Plate | 2 шт. | — | |
|
| 36 | 90269-07077-00 | Rivet | 4 шт. | — | |
|
| 37 | 5SL-84753-00-00 | Damper | 2 шт. | — | |
|
| 38 | 90480-01558-00 | Grommet | 2 шт. | — | |
|
| 39 | 1RC-2413B-00-00 | Emblem | 2 шт. | — | |
|
| 40 | 29P-2816R-00-00 | Label, Warning General Info | 1 шт. | — | |
|
| 41 | 1RC-2414H-00-00 | Damper, Plate 1 | 1 шт. | — | |
|
| 42 | 1RC-2414J-00-00 | Damper, Plate 2 | 1 шт. | — | |
|
| 43 | 1RC-24170-00-00 | Canister Assy FOR CAL | 0 шт. | — | |
|
| 44 | 1RC-2419F-00-00 | Bracket, Canistor FOR CAL | 0 шт. | — | |
|
| 45 | 90480-13018-00 | Grommet FOR CAL | 0 шт. | — | |
|
| 46 | 90387-062L2-00 | Collar FOR CAL | 0 шт. | — | |
|
| 47 | 92012-06016-00 | Bolt, Button Head FOR CAL | 0 шт. | — | |
|
| 48 | 2C0-24180-00-00 | Roll Over Valve Assy FOR CAL | 0 шт. | — | |
|
| 49 | 90464-15014-00 | Clamp FOR CAL | 0 шт. | — | |
|
| 50 | 90269-05049-00 | Rivet FOR CAL | 0 шт. | — | |
|
| 51 | 1RC-24312-00-00 | Pipe 2 FOR CAL | 0 шт. | — | |
|
| 52 | 1RC-24313-00-00 | Pipe 3 FOR CAL | 0 шт. | — | |
|
| 53 | 1RC-24314-00-00 | Pipe 4 FOR CAL | 0 шт. | — | |
|
| 54 | 1RC-24321-00-00 | Pipe 10 FOR CAL | 0 шт. | — | |
|
| 55 | 90467-09006-00 | Clip FOR CAL | 0 шт. | — | |
|
| 56 | 90467-10008-00 | Clip FOR CAL | 0 шт. | — | |
|
| 57 | 92012-06012-00 | Bolt, Button Head FOR CAL | 0 шт. | — | |
|
