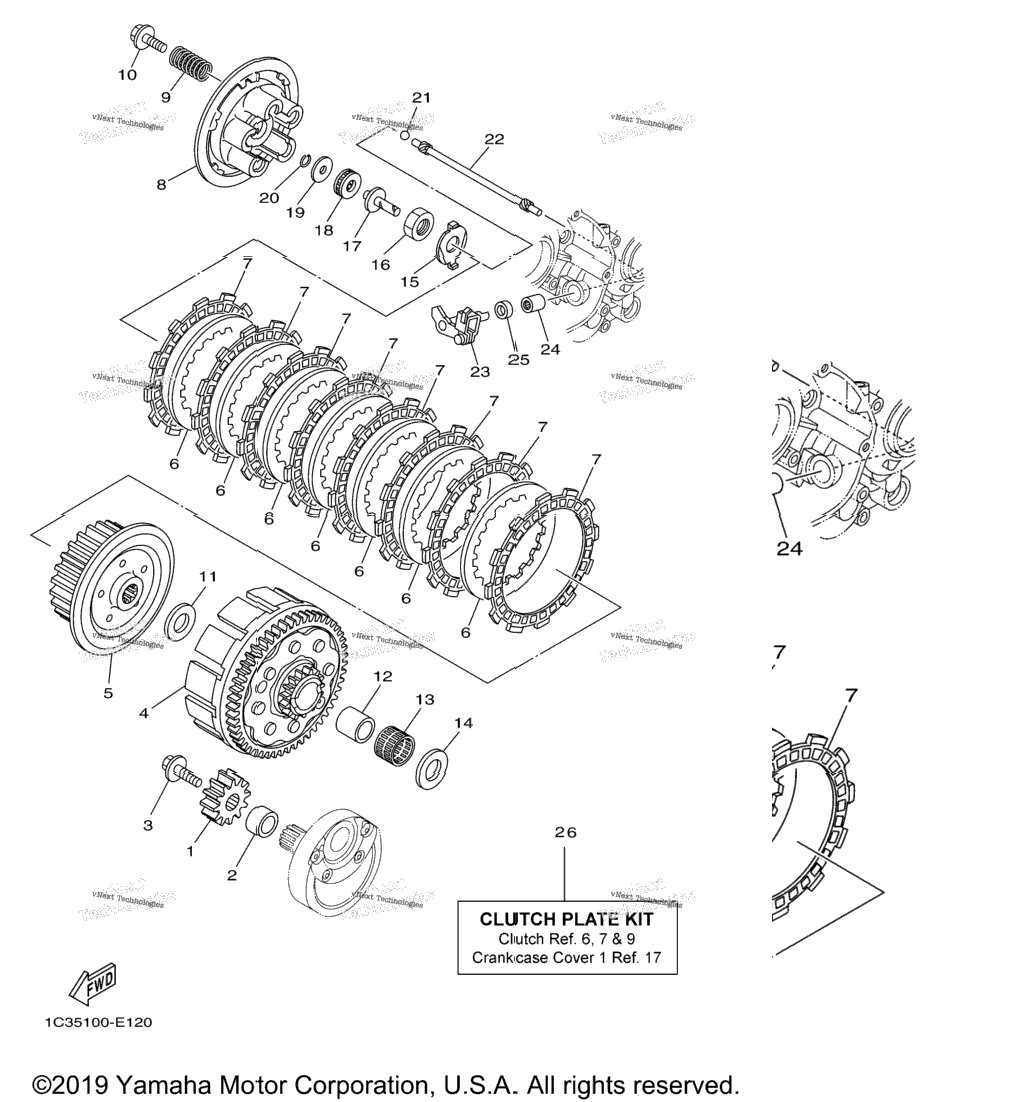

| 1 | 1C3-16111-00-00 | Gear, Primary Drive | 1 шт. | — | |
|
| 2 | 90387-172K2-00 | Collar | 1 шт. | — | |
|
| 3 | 90105-08071-00 | Bolt, Flange | 1 шт. | — | |
|
| 4 | 1C3-16150-00-00 | Primary Driven Gear Comp | 1 шт. | — | |
|
| 5 | 5NY-16371-00-00 | Boss, Clutch | 1 шт. | — | |
|
| 6 | 3XJ-16324-01-00 | Plate, Clutch 1 INCL. IN CLUTCH PLATE KIT | 7 шт. | — | |
|
| 7 | 3XJ-16321-00-00 | Plate, Friction INCL. IN CLUTCH PLATE KIT | 8 шт. | — | |
|
| 8 | 5HD-16351-00-00 | Plate, Pressure 1 | 1 шт. | — | |
|
| 9 | 90501-23598-00 | Spring, Compression INCL. IN CLUTCH PLATE KIT | 5 шт. | — | |
|
| 10 | 90159-06016-00 | Screw, With Washer | 5 шт. | — | |
|
| 12 | 1C3-16181-00-00 | Spacer 1 | 1 шт. | — | |
|
| 13 | 93310-22539-00 | Bearing | 1 шт. | — | |
|
| 14 | 90201-20611-00 | Washer, Plate | 1 шт. | — | |
|
| 14 | 90201-20611-00 | Washer, Plate | 1 шт. | — | |
|
| 15 | 90215-16289-00 | Washer, Lock | 1 шт. | — | |
|
| 16 | 90170-16326-00 | Nut | 1 шт. | — | |
|
| 17 | 5NL-16356-00-00 | Rod, Push 1 | 1 шт. | — | |
|
| 18 | 93340-21008-00 | Bearing | 1 шт. | — | |
|
| 19 | 90201-080H1-00 | Washer, Plate | 1 шт. | — | |
|
| 20 | 93440-07182-00 | Circlip | 1 шт. | — | |
|
| 21 | 93511-32027-00 | Ball | 1 шт. | — | |
|
| 22 | 1C3-16357-10-00 | Rod, Push 2 | 1 шт. | — | |
|
| 23 | 1C3-16380-00-00 | Push Lever Assy | 1 шт. | — | |
|
| 24 | 93315-11040-00 | Bearing | 1 шт. | — | |
|
| 25 | 93102-10008-00 | Oil Seal | 1 шт. | — | |
|
| 26 | 1C3-W001G-00-00 | Clutch Plate Kit | 1 шт. | — | |
|
