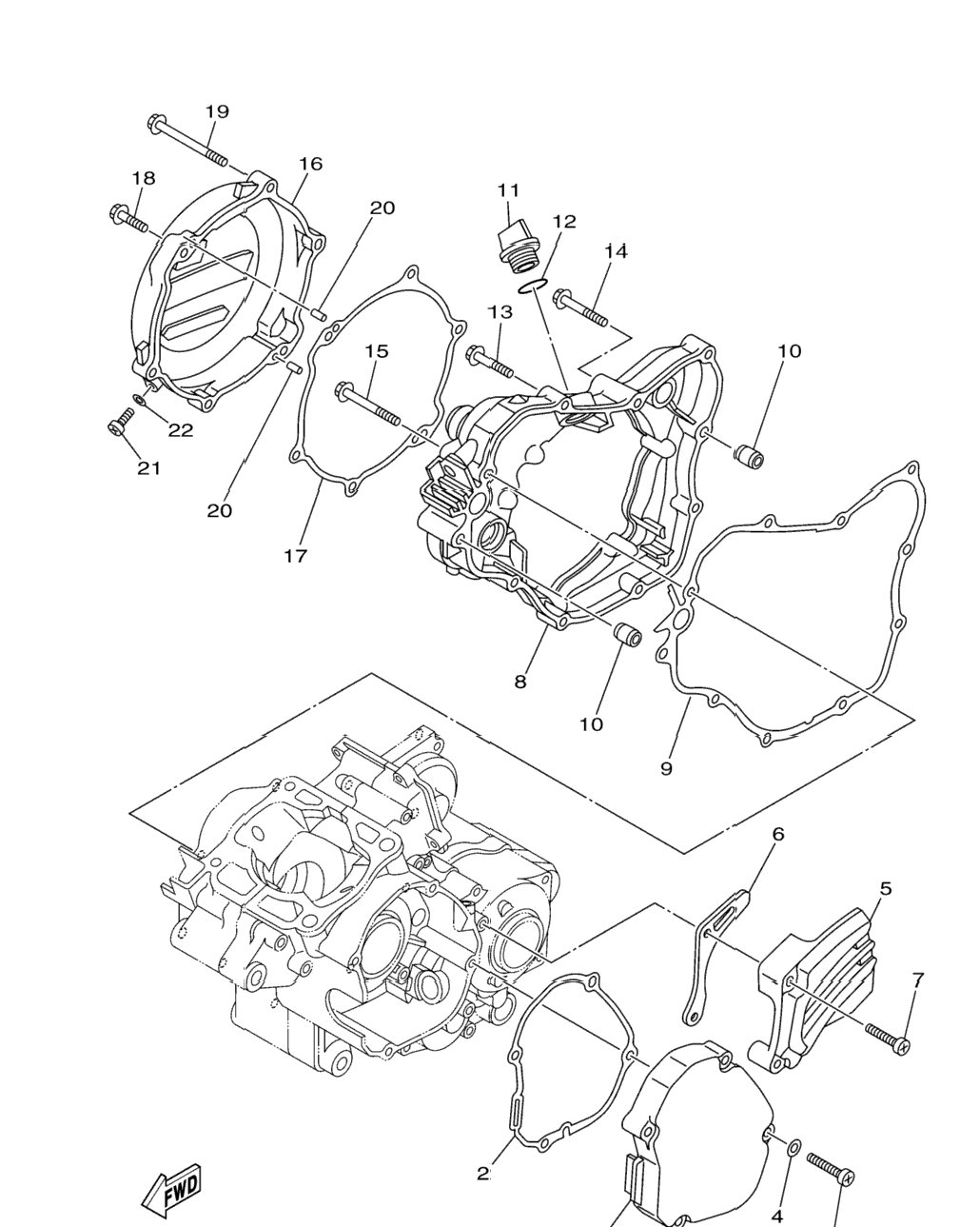

| 1 | 1C3-15411-10-00 | Cover, Crankcase 1 | 1 шт. | — | |
|
| 2 | 1C3-15451-00-00 | Gasket, Crankcase Cover 1 | 1 шт. | — | |
|
| 3 | 92502-06030-00 | Screw, Pan Head | 4 шт. | — | |
|
| 4 | 92902-06600-00 | Washer, Plate | 4 шт. | — | |
|
| 5 | 1C3-15421-10-00 | Cover, Crankcase 2 | 1 шт. | — | |
|
| 6 | 1C3-17466-00-00 | Guide, Chain | 1 шт. | — | |
|
| 7 | 98502-06030-00 | Screw, Pan Head | 2 шт. | — | |
|
| 8 | 1C3-15431-00-00 | Cover, Crankcase 3 | 1 шт. | — | |
|
| 9 | 1C3-15462-00-00 | Gasket, Crankcase Cover 3 | 1 шт. | — | |
|
| 10 | 99530-08016-00 | Pin, Dowel | 2 шт. | — | |
|
| 11 | 3Y1-15363-10-00 | Plug, Oil | 1 шт. | — | |
|
| 12 | 93210-19123-00 | O-Ring | 1 шт. | — | |
|
| 13 | 95022-06030-00 | Bolt, Flange | 6 шт. | — | |
|
| 14 | 95022-06040-00 | Bolt, Flange | 1 шт. | — | |
|
| 15 | 95022-06050-00 | Bolt, Flange | 1 шт. | — | |
|
| 16 | 1C3-15415-10-00 | Cover, 1 | 1 шт. | — | |
|
| 17 | 1C3-15463-00-00 | Gasket, 2 INCL. IN CLUTCH PLATE KIT | 1 шт. | — | |
|
| 18 | 95022-06065-00 | Bolt, Flange | 1 шт. | — | |
|
| 19 | 95022-06025-00 | .Bolt, Flange | 5 шт. | — | |
|
| 20 | 93604-10011-00 | .Pin, Dowel | 2 шт. | — | |
|
| 21 | 92012-06012-00 | Bolt, Button Head | 1 шт. | — | |
|
| 22 | 90430-06014-00 | Gasket | 1 шт. | — | |
|
