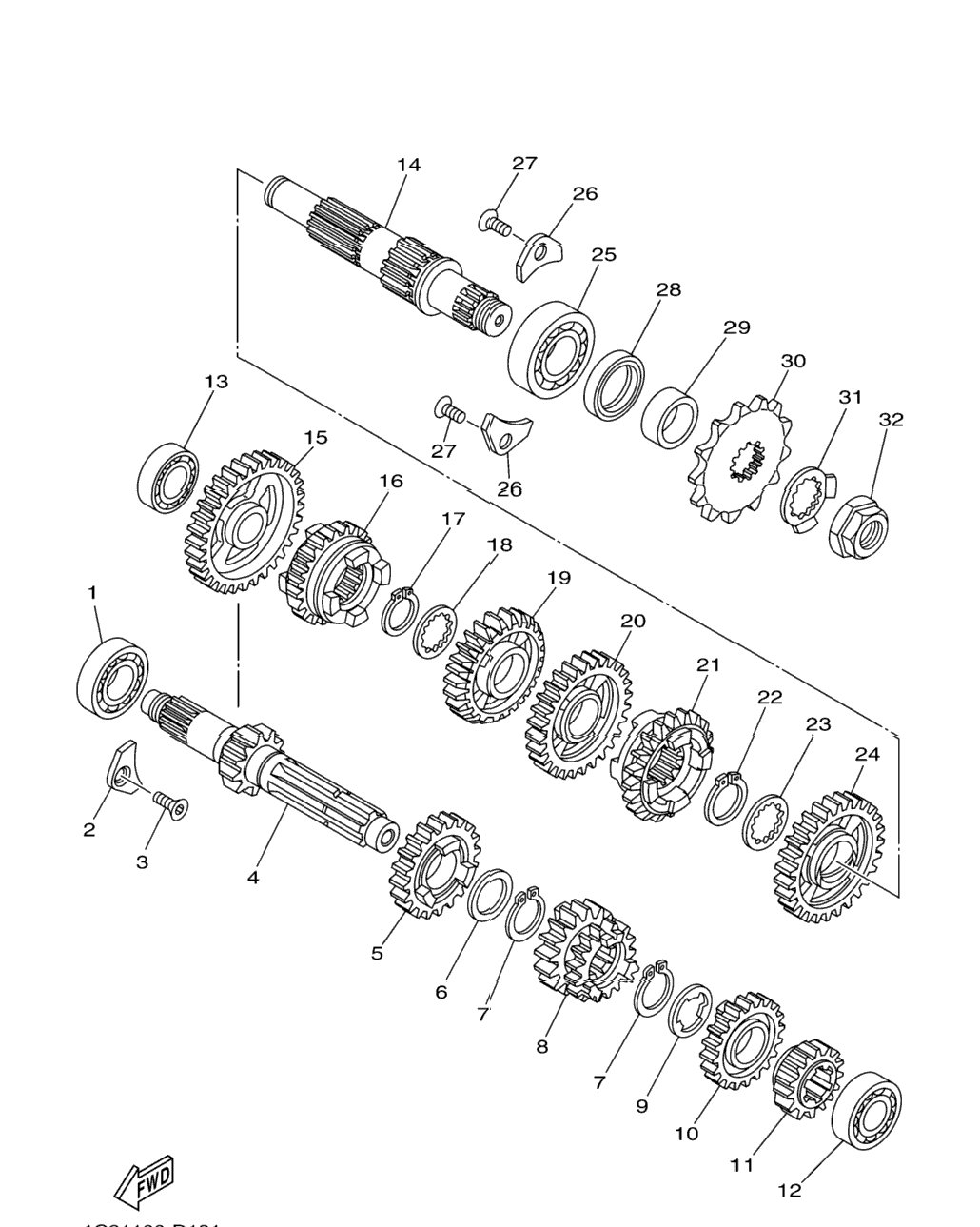

| 1 | 93306-00442-00 | Bearing | 1 шт. | — | |
|
| 2 | 4JT-15381-01-00 | .Plate, Bearing Cover | 1 шт. | — | |
|
| 3 | 90149-06074-00 | Screw | 1 шт. | — | |
|
| 4 | 1C3-17411-10-00 | Axle, Main (13T) | 1 шт. | — | |
|
| 5 | 1C3-17161-10-00 | Gear, 6Th Pinion (21T) | 1 шт. | — | |
|
| 6 | 90201-22555-00 | Washer, Plate | 1 шт. | — | |
|
| 7 | 93410-22039-00 | Circlip | 2 шт. | — | |
|
| 8 | 1C3-17131-10-00 | Gear, 3Rd Pinion (17T/17T) | 1 шт. | — | |
|
| 9 | 90209-18135-00 | Washer | 1 шт. | — | |
|
| 10 | 1C3-17151-10-00 | Gear, 5Th Pinion (20T) | 1 шт. | — | |
|
| 11 | 1C3-17121-10-00 | Gear, 2Nd Pinion (15T) | 1 шт. | — | |
|
| 12 | 93306-20351-00 | Bearing | 1 шт. | — | |
|
| 13 | 93306-00326-00 | Bearing | 1 шт. | — | |
|
| 14 | 1C3-17421-00-00 | Axle, Drive | 1 шт. | — | |
|
| 15 | 1C3-17211-10-00 | Gear, 1St Wheel (31T) | 1 шт. | — | |
|
| 16 | 1C3-17261-10-00 | Gear, 6Th Wheel (23T) | 1 шт. | — | |
|
| 17 | 93410-22039-00 | Circlip | 1 шт. | — | |
|
| 18 | 90209-20008-00 | Washer | 1 шт. | — | |
|
| 19 | 1C3-17241-10-00 | Gear, 4Th Wheel (23T) | 1 шт. | — | |
|
| 20 | 1C3-17231-20-00 | Gear, 3Rd Wheel (27T) | 1 шт. | — | |
|
| 21 | 1C3-17251-10-00 | Gear, 5Th Wheel (24T) | 1 шт. | — | |
|
| 22 | 93410-26067-00 | Circlip | 1 шт. | — | |
|
| 23 | 90209-23012-00 | Washer | 1 шт. | — | |
|
| 24 | 1C3-17221-10-00 | Gear, 2Nd Wheel (29T) | 1 шт. | — | |
|
| 25 | 93306-20447-00 | Bearing | 1 шт. | — | |
|
| 26 | 4JT-15381-01-00 | .Plate, Bearing Cover | 2 шт. | — | |
|
| 27 | 90149-06074-00 | Screw | 2 шт. | — | |
|
| 28 | 93102-28012-00 | Oil Seal | 1 шт. | — | |
|
| 29 | 90387-22004-00 | Collar | 1 шт. | — | |
|
| 30 | 9383B-13218-00 | Sprocket, Drive (13T) | 1 шт. | — | |
|
| 31 | 90215-20003-00 | Washer, Lock | 1 шт. | — | |
|
| 32 | 90179-18001-00 | Nut | 1 шт. | — | |
|
