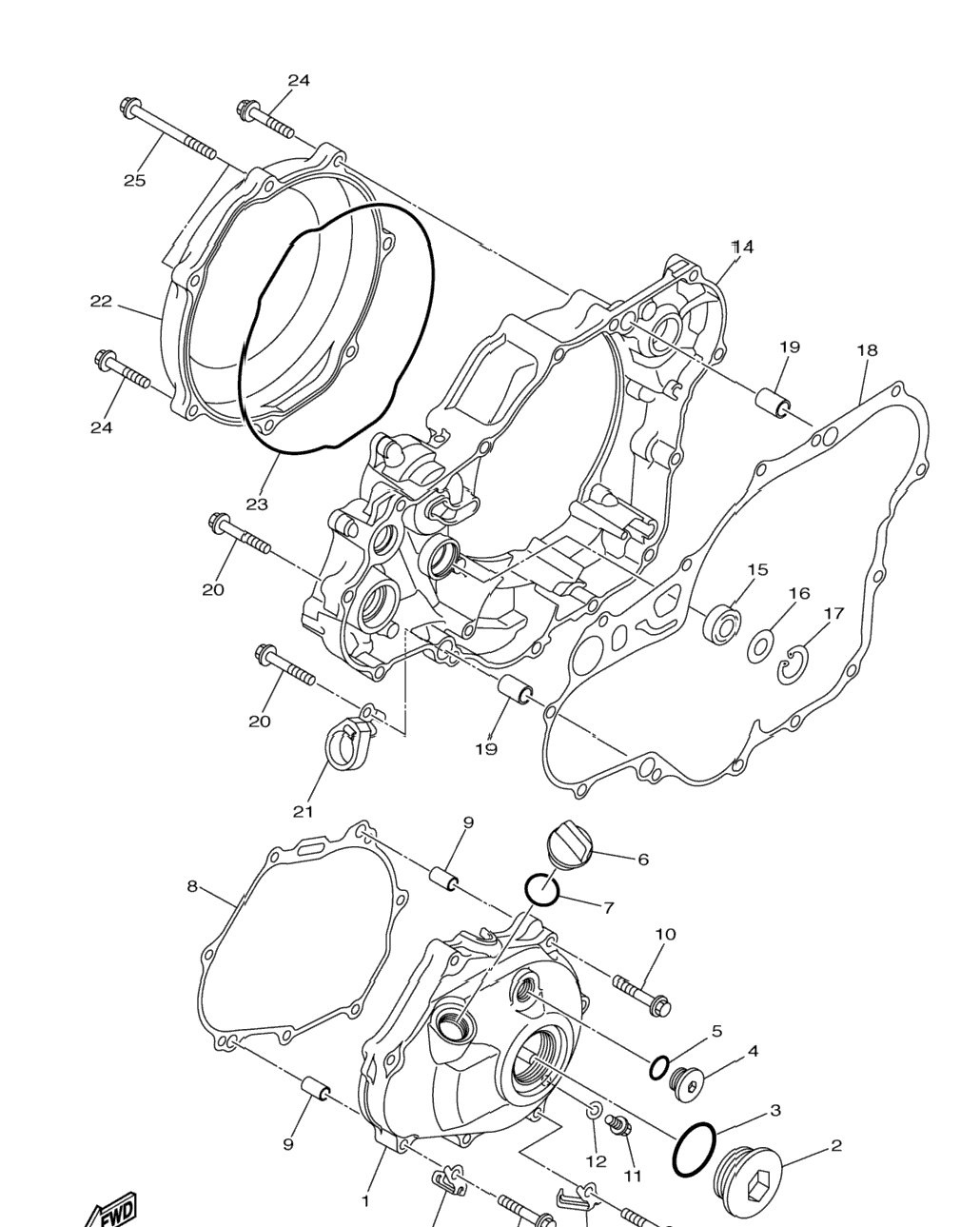

| 1 | 1SL-15411-00-00 | Cover, Crankcase 1 | 1 шт. | — | |
|
| 2 | 90340-36002-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 3 | 93210-357A3-00 | O-Ring INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 4 | 90340-14011-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 5 | 93210-14369-00 | O-Ring INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 6 | 3Y1-15363-10-00 | Plug, Oil | 1 шт. | — | |
|
| 7 | 93210-19123-00 | O-Ring INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 8 | 1SL-15451-00-00 | Gasket, Crankcase Cover 1 INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 9 | 99530-08016-00 | Pin, Dowel | 2 шт. | — | |
|
| 11 | 95022-06012-00 | Bolt, Flange | 1 шт. | — | |
|
| 12 | 90430-06014-00 | Gasket INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 13 | 90465-08062-00 | Clamp | 2 шт. | — | |
|
| 14 | 1SL-15431-00-00 | Cover, Crankcase 3 | 1 шт. | — | |
|
| 15 | 93101-14164-00 | Oil Seal | 1 шт. | — | |
|
| 16 | 90201-15701-00 | Washer, Plate (T=1.0) | 1 шт. | — | |
|
| 17 | 99009-22500-00 | Circlip | 1 шт. | — | |
|
| 18 | 1SL-15462-00-00 | . Gasket, Crankcase Cover 3 INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 19 | 99530-12016-00 | Pin, Dowel | 2 шт. | — | |
|
| 20 | 95022-06030-00 | Bolt, Flange | 7 шт. | — | |
|
| 20 | 95022-06030-00 | Bolt, Flange | 11 шт. | — | |
|
| 21 | 1SL-15378-00-00 | Holder | 1 шт. | — | |
|
| 22 | 33D-15415-10-00 | Cover, 1 | 1 шт. | — | |
|
| 23 | 33D-15453-00-00 | Gasket INCL. IN CLUTCH AND BOTTOM END GASKET KITS | 1 шт. | — | |
|
| 24 | 95022-06025-00 | .Bolt, Flange | 5 шт. | — | |
|
| 25 | 95022-06070-00 | Bolt, Flange | 2 шт. | — | |
|
