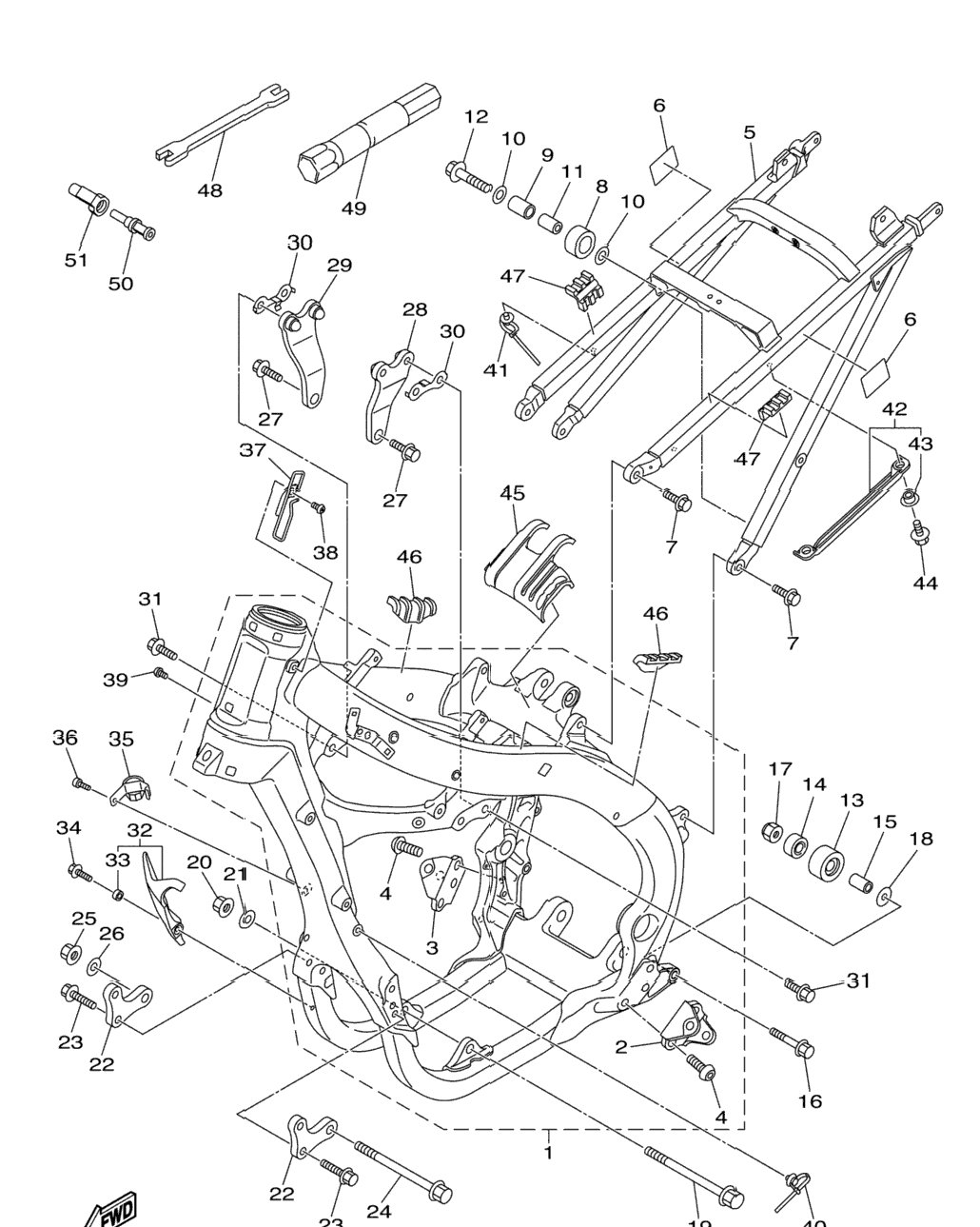

| 1 | B11-21101-00-00 | Front Frame Comp | 1 шт. | — | |
|
| 2 | 17D-21447-00-00 | . .Bracket, Footrest | 1 шт. | — | |
|
| 3 | 17D-21448-00-00 | . .Bracket, Footrest | 1 шт. | — | |
|
| 4 | 90149-10031-00 | . .Screw | 4 шт. | — | |
|
| 5 | 1SL-21190-10-00 | Rear Frame Comp | 1 шт. | — | |
|
| 6 | 33D-23472-00-00 | .Protector | 2 шт. | — | |
|
| 7 | 90105-08230-00 | Bolt, Flange | 4 шт. | — | |
|
| 8 | 30X-22178-00-00 | Tensioner | 1 шт. | — | |
|
| 9 | 4V4-22184-00-00 | Bush | 1 шт. | — | |
|
| 10 | 90201-08045-00 | Washer, Plate | 2 шт. | — | |
|
| 11 | 90387-08041-00 | Collar | 1 шт. | — | |
|
| 12 | 95022-08040-00 | Bolt, Flange | 1 шт. | — | |
|
| 13 | 3JD-22178-20-00 | Tensioner | 1 шт. | — | |
|
| 14 | 93300-60839-00 | Bearing | 1 шт. | — | |
|
| 15 | 90387-086N4-00 | Collar | 1 шт. | — | |
|
| 16 | 90105-08232-00 | Bolt, Flange | 1 шт. | — | |
|
| 17 | 90185-08009-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 18 | 90201-08043-00 | Washer, Plate | 1 шт. | — | |
|
| 19 | 90105-10176-00 | Bolt, Flange | 1 шт. | — | |
|
| 20 | 90179-10658-00 | Nut | 1 шт. | — | |
|
| 21 | 90201-10045-00 | Washer, Plate | 1 шт. | — | |
|
| 22 | 1SL-21417-10-00 | Bracket, Front Lower 1 | 2 шт. | — | |
|
| 23 | 90105-08143-00 | Bolt, Flange | 4 шт. | — | |
|
| 24 | 90105-10193-00 | Bolt, Flange | 1 шт. | — | |
|
| 25 | 90179-10658-00 | Nut | 1 шт. | — | |
|
| 26 | 90201-10045-00 | Washer, Plate | 1 шт. | — | |
|
| 27 | 90105-10189-00 | Bolt, Flange | 2 шт. | — | |
|
| 28 | B11-21425-00-00 | Bracket, Rear Upper 1 | 1 шт. | — | |
|
| 29 | B11-21426-00-00 | Bracket, Rear Upper 2 | 1 шт. | — | |
|
| 30 | B11-21456-00-00 | Plate, Patch | 2 шт. | — | |
|
| 31 | 90105-08143-00 | Bolt, Flange | 4 шт. | — | |
|
| 32 | 1SL-21471-00-00 | Protector, Engine | 1 шт. | — | |
|
| 33 | 90387-06106-00 | . .Collar | 1 шт. | — | |
|
| 34 | 90105-06203-00 | Bolt, Flange | 1 шт. | — | |
|
| 35 | 1SL-21335-01-00 | Clamp, Wire Harness 1 | 1 шт. | — | |
|
| 36 | 91312-05008-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 37 | 1SL-21163-01-00 | Holder, Wire | 1 шт. | — | |
|
| 38 | 92012-06010-00 | Bolt, Button Head | 1 шт. | — | |
|
| 39 | 92012-06010-00 | Bolt, Button Head | 1 шт. | — | |
|
| 40 | 90464-31002-00 | Clamp | 1 шт. | — | |
|
| 41 | 90464-31002-00 | Clamp | 1 шт. | — | |
|
| 42 | 1SL-2171E-00-00 | Cover, Side 5 | 1 шт. | — | |
|
| 43 | 90387-065T2-00 | . .Collar | 2 шт. | — | |
|
| 44 | 95022-06016-00 | Bolt, Flange | 2 шт. | — | |
|
| 45 | 1SL-24181-00-00 | Damper, Locating 1 | 1 шт. | — | |
|
| 46 | 33D-24182-00-00 | Damper, Locating 2 | 2 шт. | — | |
|
| 47 | 33D-24183-00-00 | Damper, Locating 3 | 2 шт. | — | |
|
| 48 | 5ET-28166-10-00 | Wrench, Hexagon | 1 шт. | — | |
|
| 49 | 5SL-2814F-00-00 | Box, Spark Plug | 1 шт. | — | |
|
| 50 | 18P-2467E-00-00 | Cap | 1 шт. | — | |
|
| 51 | 18P-2464V-00-00 | Case, Cap | 1 шт. | — | |
|
