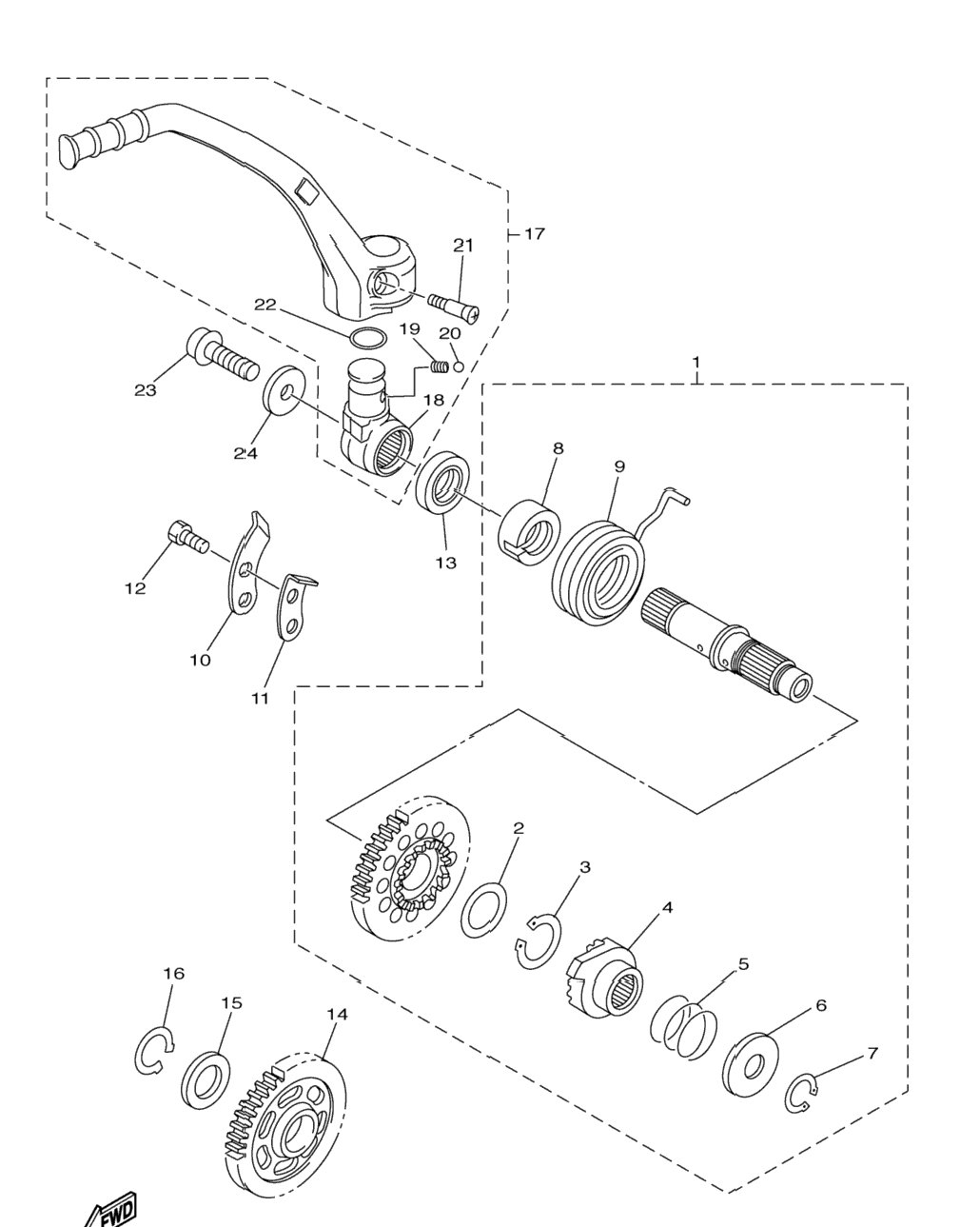

| 1 | 2S2-15601-00-00 | .Kick Shaft Assy | 1 шт. | — | |
|
| 2 | 90201-20685-00 | . .Washer, Plate (T=0.5) | 1 шт. | — | |
|
| 3 | 93410-20038-00 | . .Circlip | 1 шт. | — | |
|
| 4 | 2S2-15671-00-00 | . ..Wheel, Ratchet | 1 шт. | — | |
|
| 5 | 90501-160A2-00 | . ..Spring, Compression | 1 шт. | — | |
|
| 6 | 90201-167P7-00 | . Washer, Plate | 1 шт. | — | |
|
| 7 | 99009-16400-00 | . Circlip | 1 шт. | — | |
|
| 8 | 5GR-15664-00-00 | . ..Guide, Spring | 1 шт. | — | |
|
| 9 | 90508-305B0-00 | . ..Spring, Torsion | 1 шт. | — | |
|
| 10 | 3Y6-15674-00-00 | .Guide, Ratchet Wheel | 1 шт. | — | |
|
| 11 | 2NX-15668-00-00 | .Stopper | 1 шт. | — | |
|
| 12 | 90101-06044-00 | .Bolt | 2 шт. | — | |
|
| 13 | 93102-20108-00 | Oil Seal INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 14 | 5TA-15651-00-00 | .Gear, Kick Idle | 1 шт. | — | |
|
| 15 | 90201-20685-00 | .Washer, Plate (T=0.5) | 1 шт. | — | |
|
| 16 | 99009-20400-00 | Circlip | 1 шт. | — | |
|
| 17 | 1SL-15620-00-00 | .Kick Crank Assy | 1 шт. | — | |
|
| 18 | 1SL-15621-00-00 | . ..Boss, Kick Crank | 1 шт. | — | |
|
| 19 | 90501-147A5-00 | . .Spring, Compression | 1 шт. | — | |
|
| 20 | 93507-32009-00 | . .Ball | 1 шт. | — | |
|
| 21 | 90151-06045-00 | . .Screw, Countersunk | 1 шт. | — | |
|
| 22 | 93210-17570-00 | . .O-Ring | 1 шт. | — | |
|
| 23 | 90110-08087-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 24 | 90201-08047-00 | .Washer, Plate | 1 шт. | — | |
|
