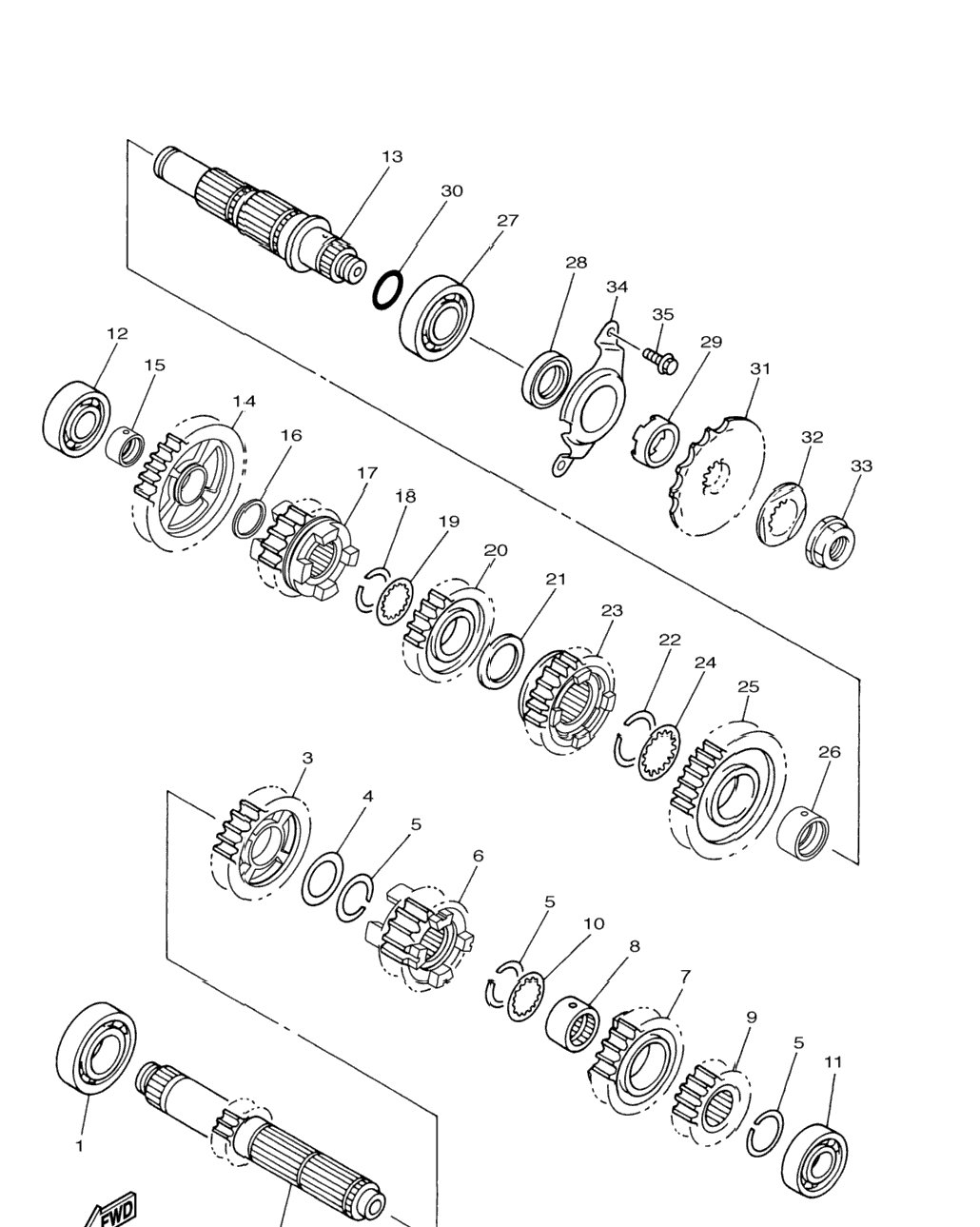

| 1 | 93306-20532-00 | Bearing | 1 шт. | — | |
|
| 2 | 1SL-17411-00-00 | Axle, Main (14T) | 1 шт. | — | |
|
| 3 | 2S2-17151-00-00 | Gear, 5Th Pinion (21T) | 1 шт. | — | |
|
| 4 | 90201-253K0-00 | Washer, Plate (T=1.0) | 1 шт. | — | |
|
| 5 | 93440-25084-00 | Circlip | 3 шт. | — | |
|
| 6 | 1SL-17131-00-00 | Gear, 3Rd Pinion (20T) | 1 шт. | — | |
|
| 7 | 2S2-17141-00-00 | Gear, 4Th Pinion (22T) | 1 шт. | — | |
|
| 8 | 90387-21005-00 | Collar | 1 шт. | — | |
|
| 9 | 2S2-17121-00-00 | Gear, 2Nd Pinion (15T) | 1 шт. | — | |
|
| 10 | 90209-21332-00 | Washer | 1 шт. | — | |
|
| 11 | 93306-00447-00 | Bearing | 1 шт. | — | |
|
| 12 | 93306-00426-00 | Bearing | 1 шт. | — | |
|
| 13 | 1SL-17402-00-00 | Drive Axle Assy | 1 шт. | — | |
|
| 14 | 2S2-17211-00-00 | Gear, 1St Wheel(27T) | 1 шт. | — | |
|
| 15 | 90387-20028-00 | Collar | 1 шт. | — | |
|
| 16 | 90201-203E7-00 | Washer, Plate | 1 шт. | — | |
|
| 17 | 1SL-17251-10-00 | Gear, 5Th Wheel (20T) | 1 шт. | — | |
|
| 18 | 93440-25084-00 | Circlip | 1 шт. | — | |
|
| 19 | 90209-22008-00 | Washer | 1 шт. | — | |
|
| 20 | 1SL-17231-00-00 | Gear, 3Rd Wheel (26T) | 1 шт. | — | |
|
| 21 | 90201-253K0-00 | Washer, Plate (T=1.0) | 1 шт. | — | |
|
| 22 | 93440-28062-00 | Circlip | 1 шт. | — | |
|
| 23 | 1SL-17241-10-00 | Gear, 4Th Wheel (24T) | 1 шт. | — | |
|
| 24 | 90209-26348-00 | Washer | 1 шт. | — | |
|
| 25 | 2S2-17221-00-00 | Gear, 2Nd Wheel (23T) | 1 шт. | — | |
|
| 26 | 90387-28012-00 | Collar | 1 шт. | — | |
|
| 27 | 93306-205A5-00 | Bearing | 1 шт. | — | |
|
| 28 | 93102-32480-00 | Oil Seal INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 29 | 90387-2513F-00 | Collar | 1 шт. | — | |
|
| 30 | 93210-22164-00 | O-Ring INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 31 | 9383E-13233-00 | Sprocket, Drive (13T) | 1 шт. | — | |
|
| 32 | 90215-21003-00 | Washer, Lock | 1 шт. | — | |
|
| 33 | 90179-20001-00 | Nut | 1 шт. | — | |
|
| 34 | 1SL-17471-00-00 | Plate, Cover | 1 шт. | — | |
|
| 35 | 90105-06081-00 | Bolt, Flange | 2 шт. | — | |
|
