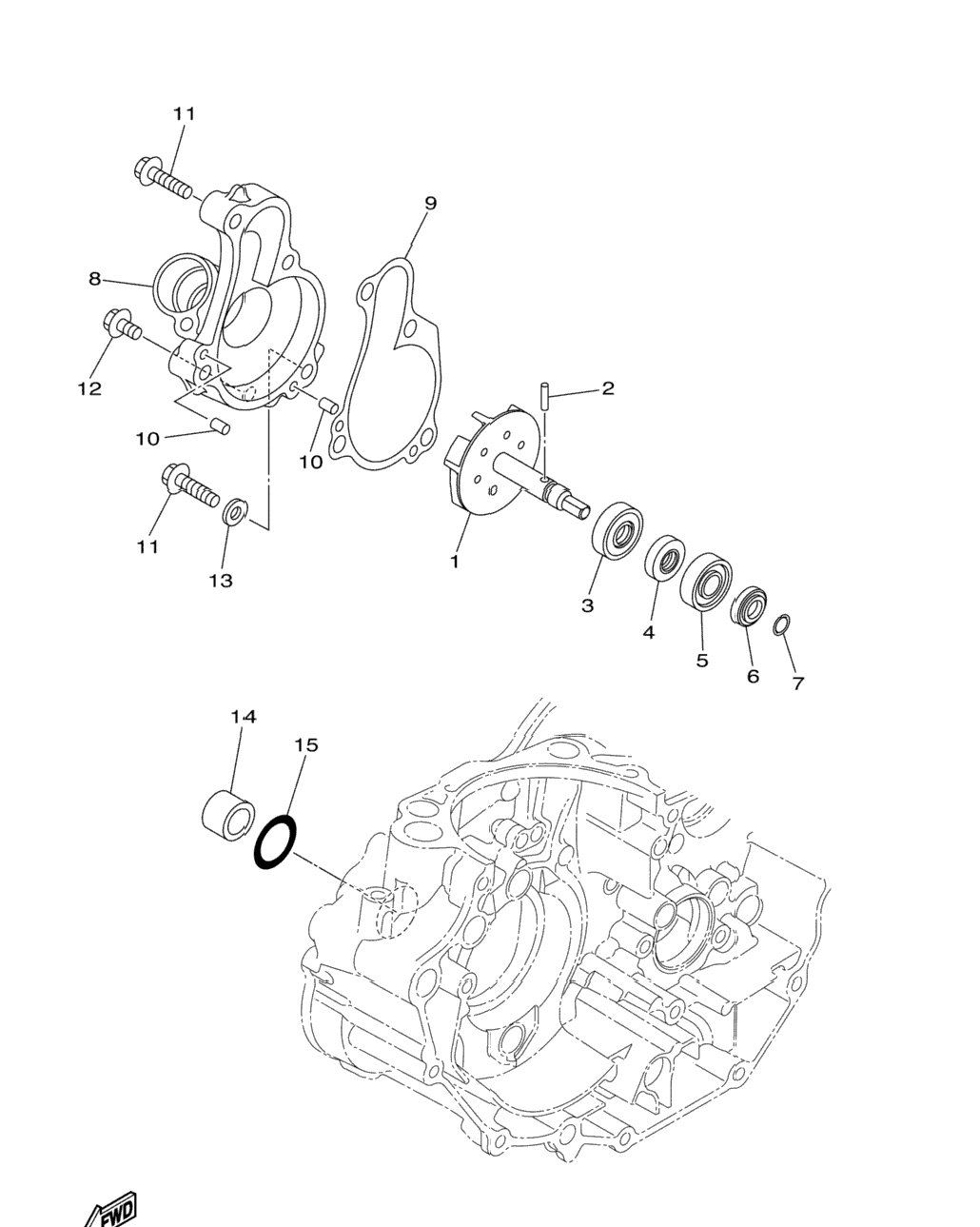

| 1 | 1SL-12450-01-00 | Impeller Shaft Assy | 1 шт. | — | |
|
| 2 | 93603-12030-00 | Pin, Dowel | 1 шт. | — | |
|
| 3 | 93102-08004-00 | Oil Seal | 1 шт. | — | |
|
| 4 | 93102-08307-00 | Oil Seal | 1 шт. | — | |
|
| 5 | 93300-60801-00 | Bearing KOYO | 0 шт. | — | |
|
| 6 | 1SL-11917-00-00 | Collar | 1 шт. | — | |
|
| 7 | 93440-07182-00 | Circlip | 1 шт. | — | |
|
| 8 | 33D-12422-00-00 | Cover, Housing | 1 шт. | — | |
|
| 9 | 33D-12427-00-00 | Gasket, Housing Cover 1 INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 10 | 93604-10011-00 | .Pin, Dowel | 2 шт. | — | |
|
| 11 | 95022-06025-00 | .Bolt, Flange | 4 шт. | — | |
|
| 12 | 95022-06010-00 | Bolt, Flange | 1 шт. | — | |
|
| 13 | 90430-06014-00 | Gasket INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
| 14 | 5BE-12564-00-00 | Pipe, Water | 1 шт. | — | |
|
| 15 | 93210-19758-00 | . O-Ring INCL. IN BOTTOM END GASKET KIT | 1 шт. | — | |
|
