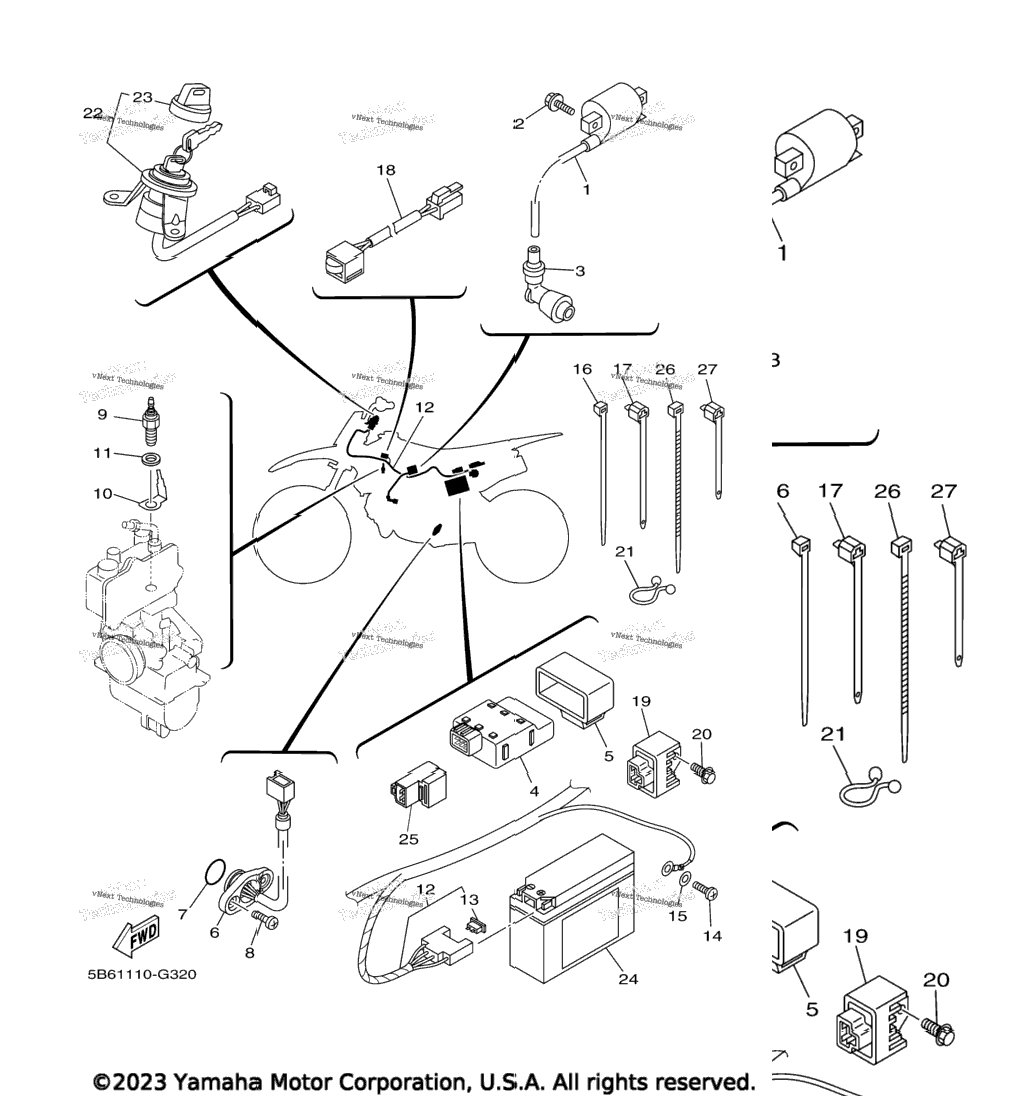

| 1 | 4KJ-82310-10-00 | Ignition Coil Assy | 1 шт. | — | |
|
| 2 | 95022-06016-00 | Bolt, Flange | 2 шт. | — | |
|
| 3 | 4BP-82370-00-00 | Plug Cap Assy | 1 шт. | — | |
|
| 4 | 5B6-85540-00-00 | C.D.I. Unit Assy | 1 шт. | — | |
|
| 5 | 3MB-85546-00-00 | Band | 1 шт. | — | |
|
| 6 | 3S0-H2540-00-00 | Neutral Switch Assy | 1 шт. | — | |
|
| 7 | 93210-228G1-00 | O-Ring | 1 шт. | — | |
|
| 8 | 98507-05010-00 | Screw, Pan Head | 2 шт. | — | |
|
| 9 | 5FU-83790-20-00 | Heater Assy (30W) | 1 шт. | — | |
|
| 10 | 5FU-82103-00-00 | .Terminal 1 | 1 шт. | — | |
|
| 11 | 90201-08016-00 | Washer, Plate | 1 шт. | — | |
|
| 12 | 5B6-82590-01-00 | Wire Harness Assy | 1 шт. | — | |
|
| 13 | 42X-82151-00-00 | . .Fuse (10A-Bl) | 1 шт. | — | |
|
| 14 | 97880-06012-00 | Screw, Pan Head | 1 шт. | — | |
|
| 15 | 92990-06600-00 | Washer, Plate | 1 шт. | — | |
|
| 16 | 90465-13152-00 | Clamp | 2 шт. | — | |
|
| 17 | 90465-13M24-00 | Clamp | 1 шт. | — | |
|
| 18 | 5FU-82560-50-00 | Thermo Switch Assy | 1 шт. | — | |
|
| 19 | 3LA-81960-01-00 | Rectifier & Regulator Assy | 1 шт. | — | |
|
| 20 | 95022-06012-00 | Bolt, Flange | 1 шт. | — | |
|
| 21 | 90464-16039-00 | Clamp | 1 шт. | — | |
|
| 22 | 5B6-82510-00-00 | Main Switch Assy | 1 шт. | — | |
|
| 23 | 3HN-82579-00-00 | . .Cap, Key | 1 шт. | — | |
|
| 24 | 4JS-82100-01-00 | Battery Assy (Gs Gt4b-5) | 1 шт. | — | |
|
| 25 | 29U-81950-93-00 | Relay Assy (Aca12115-1) | 1 шт. | — | |
|
| 26 | 1UA-82591-00-00 | Band | 2 шт. | — | |
|
| 27 | 90465-13M39-00 | Clamp | 1 шт. | — | |
|
