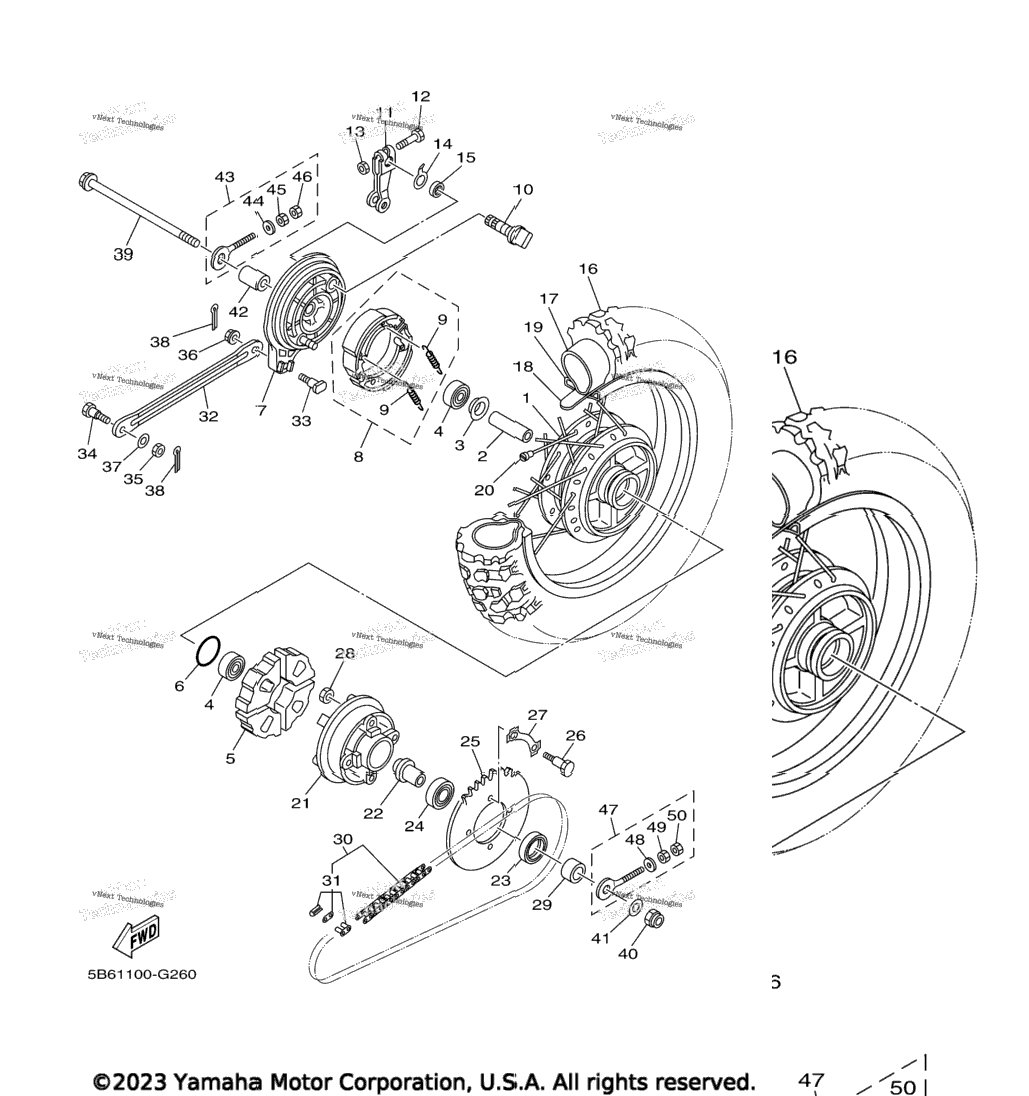

| 1 | 21W-25311-00-35 | Hub, Rear SL FOR DPBSE | 1 шт. | — | |
|
| 2 | 90560-12145-00 | Spacer | 1 шт. | — | |
|
| 3 | 102-25315-00-00 | Flange, Spacer | 1 шт. | — | |
|
| 4 | 93306-30111-00 | Bearing | 2 шт. | — | |
|
| 5 | 21W-25364-00-00 | Damper | 4 шт. | — | |
|
| 6 | 93210-41041-00 | O-Ring | 1 шт. | — | |
|
| 7 | 5B6-25321-00-35 | Plate, Brake Shoe SL FOR DPBSE | 1 шт. | — | |
|
| 8 | 4BE-W253E-00-00 | Brake Shoe Kit | 1 шт. | — | |
|
| 9 | 90506-15260-00 | . .Spring, Tension | 2 шт. | — | |
|
| 10 | 3Y6-25351-00-00 | Camshaft | 1 шт. | — | |
|
| 11 | 538-25355-00-00 | Lever, Camshaft | 1 шт. | — | |
|
| 12 | 90101-06278-00 | Bolt | 1 шт. | — | |
|
| 13 | 95307-06600-00 | .Nut | 1 шт. | — | |
|
| 14 | 3Y6-2533A-01-00 | Plate, Indicator | 1 шт. | — | |
|
| 15 | 93109-14021-00 | Oil Seal | 1 шт. | — | |
|
| 16 | 94130-121A7-00 | Tire (3.00-12 2Pr) CHENG SHIN | 1 шт. | — | |
|
| 17 | 94227-12216-00 | Tube (2.75/3.00-12 Tr4) CHENG SHIN | 1 шт. | — | |
|
| 18 | 94330-12130-00 | Band, Rim (3.00-12) CHENG SHIN | 1 шт. | — | |
|
| 19 | 94416-12002-00 | Rim (1.60-12) | 1 шт. | — | |
|
| 20 | 21W-25304-00-00 | Spoke Set, Rear | 1 шт. | — | |
|
| 21 | 296-25366-01-35 | Clutch, Hub SL FOR DPBSE | 1 шт. | — | |
|
| 22 | 21W-25387-00-00 | Axle, Sprocket | 1 шт. | — | |
|
| 23 | 93106-30004-00 | Oil Seal | 1 шт. | — | |
|
| 24 | 93306-00416-00 | Bearing | 1 шт. | — | |
|
| 25 | 5A7-25435-01-00 | Sprocket, Driven (35T) | 1 шт. | — | |
|
| 26 | 90101-08672-00 | Bolt | 4 шт. | — | |
|
| 27 | 4AW-25412-00-00 | Washer | 2 шт. | — | |
|
| 28 | 90179-08168-00 | Nut | 4 шт. | — | |
|
| 29 | 90387-207G3-00 | Collar | 1 шт. | — | |
|
| 30 | 94580-52090-00 | Chain (Did 420M 90Ll) | 1 шт. | — | |
|
| 31 | 94680-52001-00 | . . Joint, Chain (Did 420M) | 1 шт. | — | |
|
| 32 | 4BC-25371-00-00 | Bar, Tension | 1 шт. | — | |
|
| 33 | 90109-08183-00 | Bolt | 1 шт. | — | |
|
| 34 | 90109-08368-00 | Bolt | 1 шт. | — | |
|
| 35 | 95307-08700-00 | Nut | 1 шт. | — | |
|
| 36 | 95707-08500-00 | Nut, Flange | 1 шт. | — | |
|
| 37 | 92902-08600-00 | Washer, Plate | 1 шт. | — | |
|
| 38 | 91402-20012-00 | Pin, Cotter | 2 шт. | — | |
|
| 39 | 5HN-25381-00-00 | Axle, Wheel | 1 шт. | — | |
|
| 40 | 90185-12007-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 41 | 90201-12045-00 | Washer, Plate | 1 шт. | — | |
|
| 42 | 90387-12412-00 | Collar | 1 шт. | — | |
|
| 43 | 3AC-2538G-10-00 | Puller, Chain | 1 шт. | — | |
|
| 44 | 90201-061A5-00 | . Washer, Plate | 1 шт. | — | |
|
| 45 | 90170-06184-00 | . .Nut | 1 шт. | — | |
|
| 46 | 95307-06600-00 | . .Nut | 1 шт. | — | |
|
| 47 | 4GL-2538G-10-00 | Puller, Chain | 1 шт. | — | |
|
| 48 | 90201-061A5-00 | . Washer, Plate | 1 шт. | — | |
|
| 49 | 90170-06184-00 | . .Nut | 1 шт. | — | |
|
| 50 | 95307-06600-00 | . .Nut | 1 шт. | — | |
|
