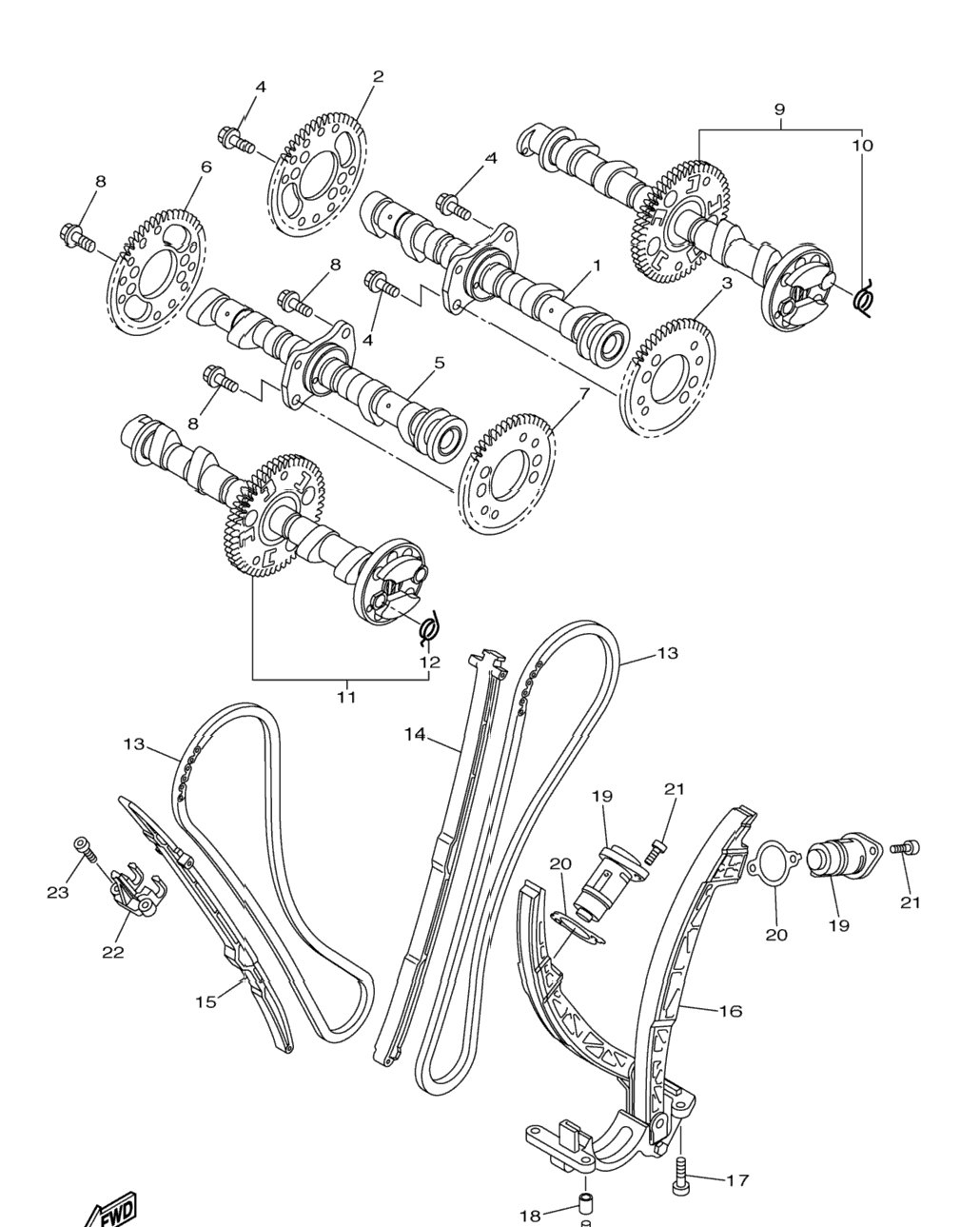

| 5 | 2S3-W1217-00-00 | Camshaft Sub Assy 1 | 1 шт. | — | |
|
| 5 | 2S3-W1217-00-00 | Camshaft Sub Assy 1 | 1 шт. | — | |
|
| 6 | 2S3-12176-00-00 | Sprocket, Cam Chain | 1 шт. | — | |
|
| 6 | 2S3-12176-00-00 | Sprocket, Cam Chain | 1 шт. | — | |
|
| 7 | 2S3-11554-00-00 | Gear 3 | 1 шт. | — | |
|
| 7 | 2S3-11554-00-00 | Gear 3 | 1 шт. | — | |
|
| 8 | 90105-07006-00 | Bolt, Flange | 4 шт. | — | |
|
| 8 | 90105-07006-00 | Bolt, Flange | 4 шт. | — | |
|
| 9 | 2S3-12180-00-00 | Camshaft Assy 2 | 1 шт. | — | |
|
| 11 | 2S3-12180-10-00 | Camshaft Assy 2 | 1 шт. | — | |
|
| 12 | 2S3-12287-00-00 | . .Spring, Decompression | 2 шт. | — | |
|
| 12 | 2S3-12287-00-00 | . .Spring, Decompression | 2 шт. | — | |
|
| 13 | 94591-49134-00 | Chain | 2 шт. | — | |
|
| 14 | 2S3-12251-00-00 | Damper, Chain 1 | 1 шт. | — | |
|
| 15 | 2S3-12253-00-00 | Damper, Chain 3 | 1 шт. | — | |
|
| 16 | 2S3-12250-00-00 | Chain Damper Assy | 1 шт. | — | |
|
| 17 | 91312-06025-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 18 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 19 | 2S3-12210-01-00 | Tensioner Assy, Cam Chain | 2 шт. | — | |
|
| 20 | 2S3-12213-00-00 | Gasket, Tensioner Case | 2 шт. | — | |
|
| 21 | 90110-06193-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 22 | 2S3-12231-00-00 | Guide, Stopper 1 | 1 шт. | — | |
|
| 23 | 90110-06174-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
