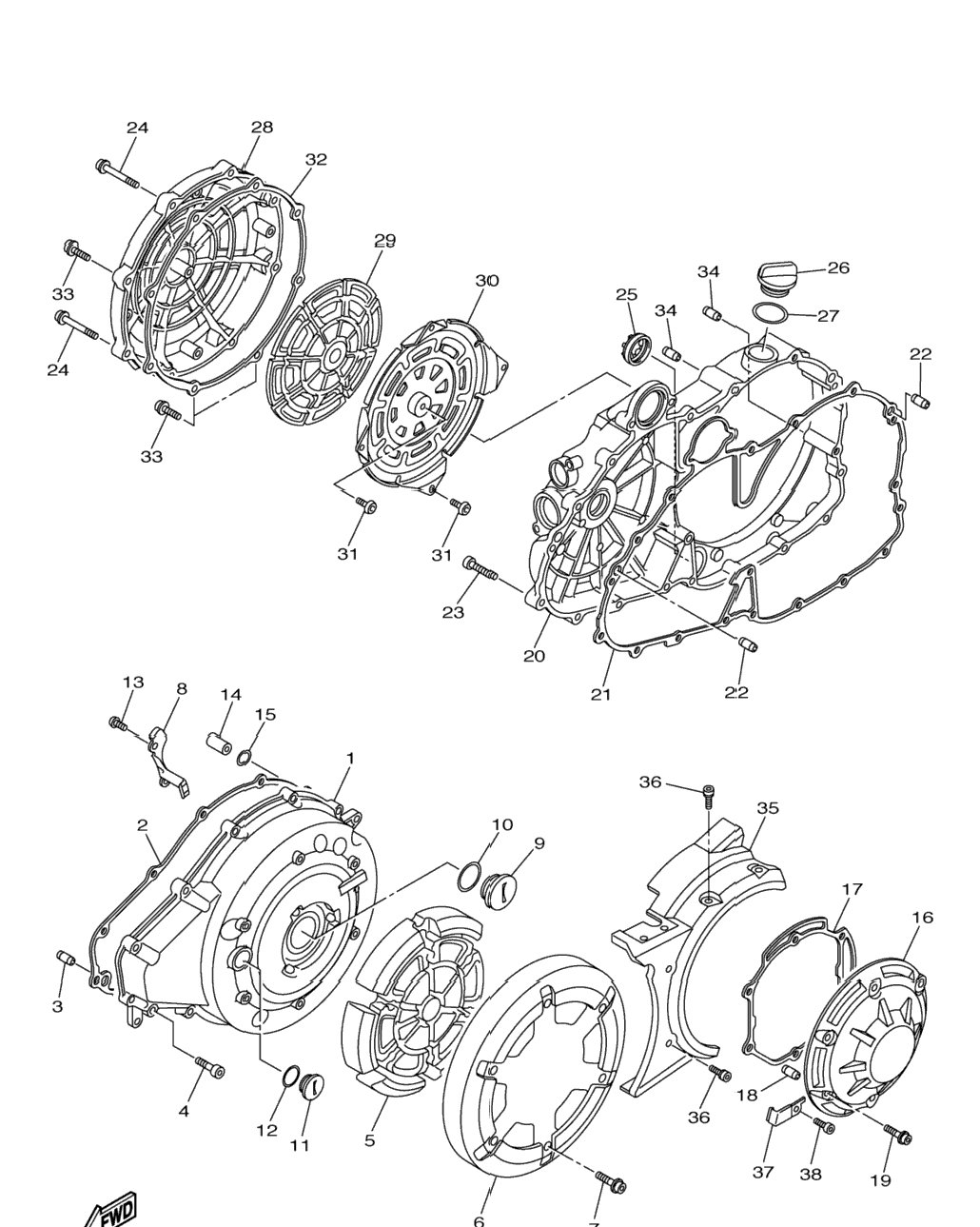

| 1 | 2S3-15411-00-00 | Cover, Crankcase 1 | 1 шт. | — | |
|
| 2 | 2S3-15451-00-00 | Gasket, Crankcase Cover 1 | 1 шт. | — | |
|
| 4 | 90110-06295-00 | Bolt, Hexagon Socket Head | 12 шт. | — | |
|
| 5 | 2S3-15326-00-00 | Damper 2 | 1 шт. | — | |
|
| 6 | 2S3-15427-00-00 | Cover, Cap 2 | 1 шт. | — | |
|
| 8 | 2S3-15484-00-00 | Clamp 2 | 1 шт. | — | |
|
| 9 | 90340-32080-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 10 | 93210-32172-00 | .O-Ring | 1 шт. | — | |
|
| 11 | 90340-14117-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 12 | 93210-14369-00 | O-Ring | 1 шт. | — | |
|
| 13 | 90149-06082-00 | Screw | 2 шт. | — | |
|
| 14 | 2S3-15138-00-00 | Nozzle 1 | 1 шт. | — | |
|
| 15 | 93210-100A9-00 | O-Ring | 1 шт. | — | |
|
| 16 | 2S3-15421-00-00 | Cover, Crankcase 2 | 1 шт. | — | |
|
| 17 | 2S3-15461-00-00 | Gasket, Crankcase Cover 2 | 1 шт. | — | |
|
| 19 | 90110-06388-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 20 | 2S3-15431-00-00 | Cover, Crankcase 3 | 1 шт. | — | |
|
| 21 | 2S3-15462-00-00 | Gasket, Crankcase Cover 3 | 1 шт. | — | |
|
| 22 | 99530-10114-00 | Pin, Dowel | 2 шт. | — | |
|
| 22 | 99530-10114-00 | Pin, Dowel | 2 шт. | — | |
|
| 23 | 90110-06322-00 | Bolt, Hexagon Socket Head | 15 шт. | — | |
|
| 24 | 90110-06262-00 | Bolt, Hexagon Socket Head | 5 шт. | — | |
|
| 25 | 2H7-15361-00-00 | Gauge, Level | 1 шт. | — | |
|
| 26 | 2S3-15363-00-00 | Plug, Oil | 1 шт. | — | |
|
| 27 | 93210-27370-00 | O-Ring | 1 шт. | — | |
|
| 28 | 2S3-15414-00-00 | Cover, 1 | 1 шт. | — | |
|
| 29 | 2S3-15316-00-00 | Damper 1 | 1 шт. | — | |
|
| 30 | 2S3-15492-00-00 | Cover | 1 шт. | — | |
|
| 31 | 90149-06069-00 | Screw | 5 шт. | — | |
|
| 32 | 2S3-15453-00-00 | Gasket | 1 шт. | — | |
|
| 33 | 90110-06387-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 33 | 90110-06387-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 34 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 34 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 35 | 2S3-15415-00-00 | Cover, 1 | 1 шт. | — | |
|
| 36 | 90110-06247-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 37 | 90462-10047-00 | Clamp | 1 шт. | — | |
|
| 38 | 90110-06193-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
