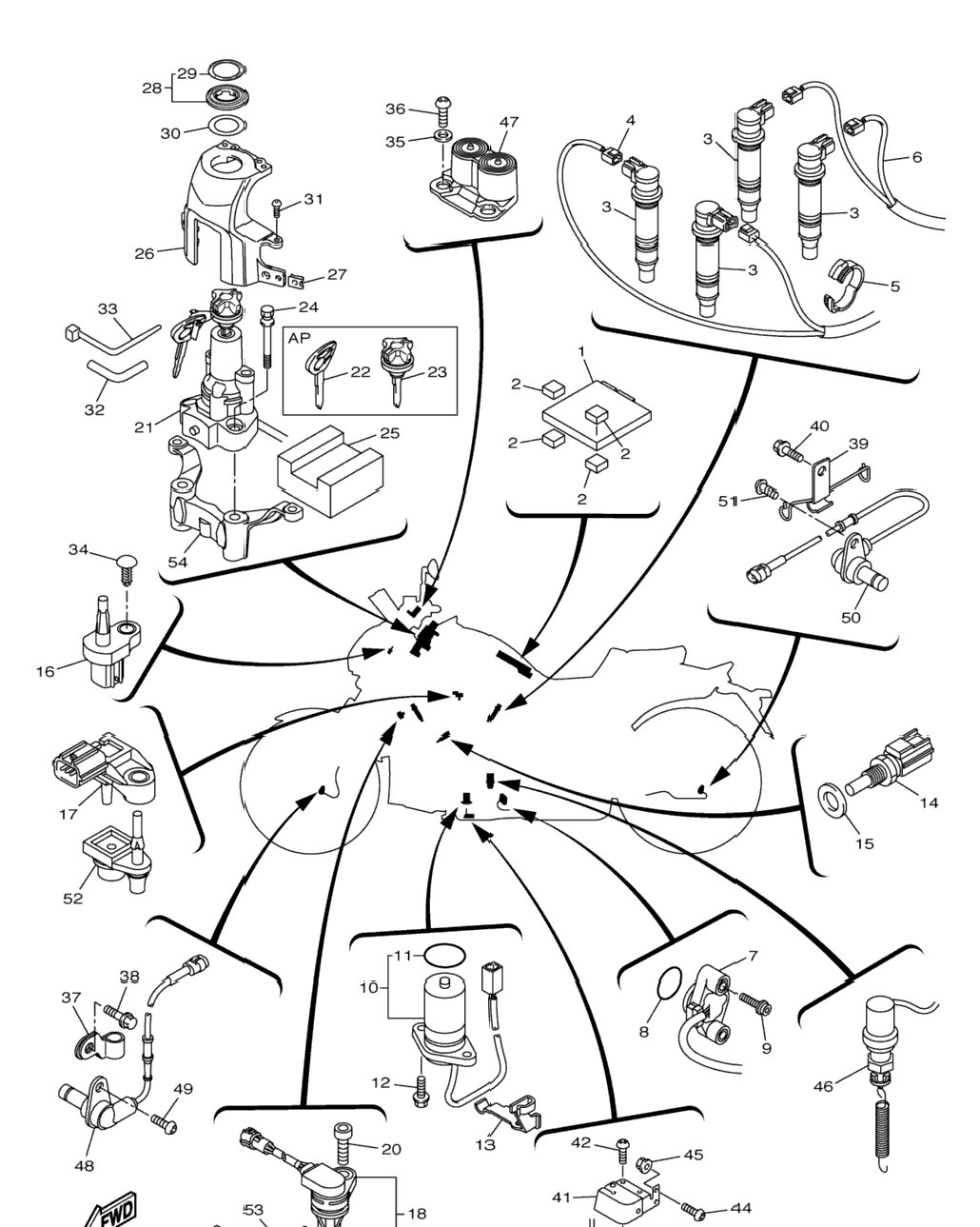

| 1 | 2S3-8591A-A0-00 | Engine Control Unit Assy | 1 шт. | — | |
|
| 2 | 2RH-21747-00-00 | Damper | 4 шт. | — | |
|
| 3 | 5VY-82310-00-00 | Ignition Coil Assy | 4 шт. | — | |
|
| 4 | 2S3-82509-10-00 | Wire, Sub Lead | 1 шт. | — | |
|
| 5 | 90464-25005-00 | Clamp | 1 шт. | — | |
|
| 6 | 2S3-82509-20-00 | Wire, Sub Lead | 1 шт. | — | |
|
| 7 | 2S3-82540-00-00 | Neutral Switch Assy | 1 шт. | — | |
|
| 8 | 93210-21001-00 | O-Ring | 1 шт. | — | |
|
| 9 | 90110-05053-00 | Bolt, Hexagon Socket Head | 0 шт. | — | |
|
| 10 | 2S3-85720-00-00 | Oil Level Gauge Assy | 1 шт. | — | |
|
| 11 | 5VY-8A8E0-00-00 | . .O-Ring | 1 шт. | — | |
|
| 12 | 95022-06016-00 | Bolt, Flange | 2 шт. | — | |
|
| 13 | 2S3-85724-00-00 | Clamp | 1 шт. | — | |
|
| 14 | 8CC-85790-01-00 | Thermosensor Assy | 1 шт. | — | |
|
| 15 | 90201-12172-00 | Washer, Plate | 1 шт. | — | |
|
| 16 | 5YU-85886-00-00 | Sensor, Air Temperature | 1 шт. | — | |
|
| 17 | 2C0-82380-00-00 | .Sensor, Pressure | 1 шт. | — | |
|
| 18 | 2S3-85896-01-00 | Sensor, Cam Position | 1 шт. | — | |
|
| 19 | 4D9-81168-00-00 | . .O-Ring | 1 шт. | — | |
|
| 20 | 90110-06175-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 21 | 2S3-82501-00-00 | Main Switch Steering Lock | 1 шт. | — | |
|
| 22 | 5PX-82511-09-00 | Blank Key AP | 1 шт. | — | |
|
| 23 | 2S3-82511-09-00 | Key, Main Switch AP | 1 шт. | — | |
|
| 24 | 90109-08207-00 | Bolt | 2 шт. | — | |
|
| 25 | 2S3-28372-00-00 | Damper | 0 шт. | — | |
|
| 26 | 2S3-2117A-00-00 | Stay | 1 шт. | — | |
|
| 27 | 90183-06053-00 | Nut, Spring | 2 шт. | — | |
|
| 28 | 2S3-82552-00-00 | Cap, Switch | 1 шт. | — | |
|
| 29 | 2S3-8257H-00-00 | . .Plate, Mark | 1 шт. | — | |
|
| 30 | 5GJ-28307-00-00 | Seal | 1 шт. | — | |
|
| 31 | 92012-06012-00 | Bolt, Button Head | 2 шт. | — | |
|
| 32 | 90445-07671-00 | Hose (L45) | 1 шт. | — | |
|
| 33 | 12R-82591-00-00 | Band | 1 шт. | — | |
|
| 34 | 90269-05055-00 | Rivet | 1 шт. | — | |
|
| 35 | 90201-067F9-00 | Washer, Plate | 2 шт. | — | |
|
| 36 | 90111-06007-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 37 | 2S3-84387-00-00 | Holder | 1 шт. | — | |
|
| 38 | 95024-06012-00 | Bolt, Flange (Small Head) | 1 шт. | — | |
|
| 39 | 2S3-8431U-00-00 | Holder | 1 шт. | — | |
|
| 40 | 95024-06012-00 | Bolt, Flange (Small Head) | 1 шт. | — | |
|
| 41 | 2S3-27876-00-00 | Bracket, Switch | 1 шт. | — | |
|
| 42 | 92014-05025-00 | Bolt, Button Head | 2 шт. | — | |
|
| 43 | 2S3-82566-00-00 | Switch, Side Stand | 1 шт. | — | |
|
| 44 | 92014-05020-00 | Bolt, Button Head | 2 шт. | — | |
|
| 45 | 95604-05200-00 | Nut, U Flange | 4 шт. | — | |
|
| 46 | 2S3-82530-00-00 | Stop Switch Assy | 1 шт. | — | |
|
| 47 | 2S3-8358J-01-00 | Switch, Meter Control | 1 шт. | — | |
|
| 48 | 2S3-85970-00-00 | Wheel Sensor Assy, Front | 1 шт. | — | |
|
| 49 | 92014-06014-00 | Bolt, Button Head | 1 шт. | — | |
|
| 50 | 2S3-85980-00-00 | Wheel Sensor Assy, Rear | 1 шт. | — | |
|
| 51 | 92014-06014-00 | Bolt, Button Head | 1 шт. | — | |
|
| 52 | 2S3-14435-00-00 | Grommet | 1 шт. | — | |
|
| 53 | 1UA-82591-00-00 | Band | 1 шт. | — | |
|
| 54 | 2S3-82514-00-00 | Stay, Main Switch | 1 шт. | — | |
|
