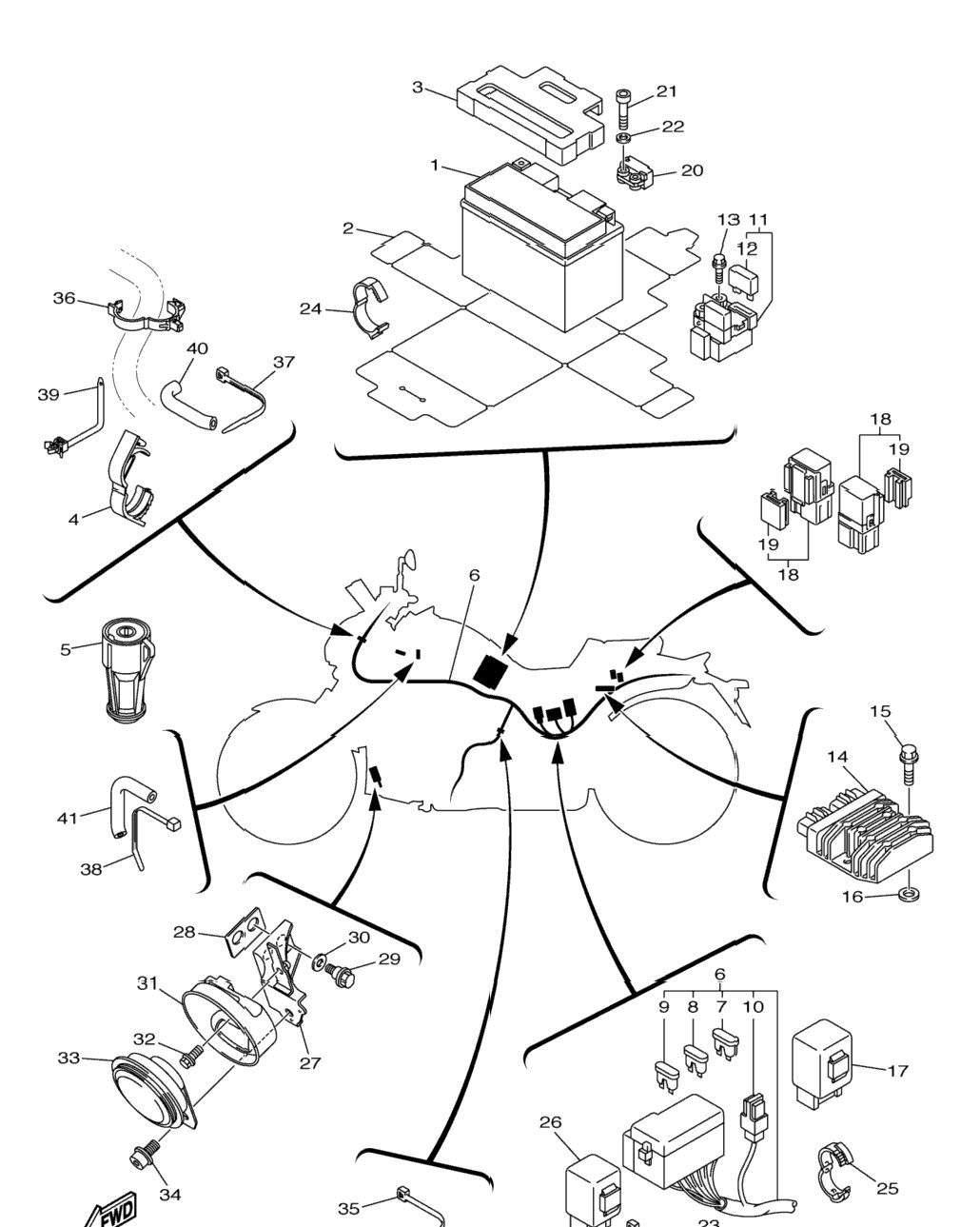

| 1 | 2D1-82100-00-00 | Battery Assy (Gs Yuasa Ytz14s) | 1 шт. | — | |
|
| 2 | 2S3-82122-00-00 | Seat, Battery | 1 шт. | — | |
|
| 3 | 2S3-82121-00-00 | Pad, Battery | 1 шт. | — | |
|
| 4 | 90464-18004-00 | Clamp | 1 шт. | — | |
|
| 5 | 2S3-8255H-01-00 | Holder, Socket | 1 шт. | — | |
|
| 6 | 2S3-82590-00-00 | Wire Harness Assy | 1 шт. | — | |
|
| 7 | 5JJ-82151-10-00 | . .Fuse (15A-Bl) | 6 шт. | — | |
|
| 8 | 5JJ-82151-20-00 | . .Fuse (20A-Bl) | 3 шт. | — | |
|
| 9 | 5JJ-82151-00-00 | . .Fuse (7.5A-Bl) | 5 шт. | — | |
|
| 10 | 5JW-82151-10-00 | . .Fuse (50A) | 1 шт. | — | |
|
| 11 | 4SV-81940-12-00 | Starter Relay Assy (Rc19-015) | 1 шт. | — | |
|
| 12 | 1AE-82151-00-00 | . .Fuse (30A-Bl) | 2 шт. | — | |
|
| 13 | 95027-06008-00 | Bolt, Flange | 2 шт. | — | |
|
| 14 | 1D7-81960-01-00 | Rectifier & Regulator Assy | 1 шт. | — | |
|
| 15 | 90105-06597-00 | Bolt, Flange | 0 шт. | — | |
|
| 16 | 90202-05187-00 | Washer, Plate | 2 шт. | — | |
|
| 17 | 5VK-81950-30-00 | Relay Assy (5Vk-30) | 0 шт. | — | |
|
| 18 | 1TP-81950-00-00 | Relay Assy (1Tp-00) | 2 шт. | — | |
|
| 19 | 5EA-81952-00-00 | . .Holder, Relay | 1 шт. | — | |
|
| 20 | 5PS-82576-01-00 | Sensor, Lean Angle | 1 шт. | — | |
|
| 21 | 90110-04003-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 22 | 90201-042E0-00 | Washer, Plate | 2 шт. | — | |
|
| 23 | 90464-16019-00 | Clamp | 1 шт. | — | |
|
| 24 | 90464-26001-00 | Clamp | 1 шт. | — | |
|
| 25 | 90464-16001-00 | Clamp | 1 шт. | — | |
|
| 26 | 5C4-83350-00-00 | Flasher Relay Assy | 1 шт. | — | |
|
| 27 | 2S3-83378-00-00 | Stay, Horn | 1 шт. | — | |
|
| 28 | 2S3-8338V-00-00 | Damper | 1 шт. | — | |
|
| 29 | 90109-06183-00 | Bolt | 2 шт. | — | |
|
| 30 | 90206-10001-00 | Washer, Wave | 2 шт. | — | |
|
| 31 | 2S3-83376-00-00 | Cover, Horn | 1 шт. | — | |
|
| 32 | 90119-05016-00 | .Bolt, With Washer | 1 шт. | — | |
|
| 33 | 2S3-83371-00-00 | Horn | 1 шт. | — | |
|
| 34 | 90110-08100-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 35 | 90464-16061-00 | Clamp | 1 шт. | — | |
|
| 36 | 90464-30001-00 | Clamp | 1 шт. | — | |
|
| 37 | 12R-82591-00-00 | Band | 4 шт. | — | |
|
| 38 | 90465-12356-00 | Clamp | 1 шт. | — | |
|
| 39 | 90464-12089-00 | Clamp | 1 шт. | — | |
|
| 40 | 90445-07671-00 | Hose (L45) | 1 шт. | — | |
|
| 41 | 90446-06002-00 | Hose | 1 шт. | — | |
|
